C Frame Shaded Pole Motor 83W 240V 60HZ Single Phase upright holding cabinet oven Fan Motor
C Frame Shaded Pole Motor 83W 240V 60HZ Single Phase upright holding cabinet oven Fan Motor
C Frame Shaded Pole Motor 83W 240V 60HZ Single Phase upright holding cabinet oven Fan Motor
C Frame Shaded Pole Motor 83W 240V 60HZ Single Phase upright holding cabinet oven Fan Motor
C Frame Shaded Pole Motor 83W 240V 60HZ Single Phase upright holding cabinet oven Fan Motor
C Frame Shaded Pole Motor 83W 240V 60HZ Single Phase upright holding cabinet oven Fan Motor
C Frame Shaded Pole Motor 83W 240V 60HZ Single Phase upright holding cabinet oven Fan Motor
C Frame Shaded Pole Motor 83W 240V 60HZ Single Phase upright holding cabinet oven Fan Motor
Specifications
Brand Name :
MH motors
Model Number :
MH6038-38676
Certification :
ETL/UL
Place of Origin :
China
MOQ :
600PCS
Price :
Negotiable(EXW)
Payment Terms :
T/T
Supply Ability :
2000PCS/day
Delivery Time :
30 work days
Packaging Details :
Standard exporting carton package, ship by sea or airfreight
product name :
C Frame Shaded Pole Motor 83W 240V 60HZ Single Phase upright holding cabinet oven Fan Motor
MH MODEL :
MH6038-38676
Rated Voltage/Frequency :
240V60Hz
Current（A) :
0.7A
Input Power（W） :
83
Output Speed（RPM) :
3000
Hi-Pot TEST :
1800vac50Hz,1mA,1S
Bearing Type :
NMB Ball Bearing
Insulation Class :
H
Agency :
ETL/UL
Application :
Kitchen machine
Protect Method :
TP
High Light :
C Frame Shaded Pole Motor ,83W 240V 60HZ Single Phase ,Kitchen machine Fan Motor
Description

C Frame Shaded Pole Motor 83W 240V 60HZ Single Phase Kitchen machine Fan Motor​

This is a motor J238-150-15193 240V UL replacement . The motor is specifically designed for Upright Holding Cabinet Oven kitchen machine . Provides consistent and dependable operation, crucial for maintaining the performance of the oven over time. Ensures a quiet kitchen environment, minimizing disturbances while the oven is in use.Delivers efficient and uniform heat distribution, essential for maintaining the desired temperature throughout the oven.

Specification:

Product Name: C Frame Shaded Pole Motor 83W 240V 60HZ Single Phase Upright Holding Cabinet Oven Fan Motor MH MODEL: MH6038-38676
Rated Voltage/Frequency: 240V60Hz Current(A): 0.7A
Input Power(W): 83 Output Speed(RPM): 3000
Hi-Pot TEST: 1800vac50Hz,1mA,1S Bearing Type: NMB Ball Bearing
Insulation Class: H Agency: ETL/UL
Application: Kitchen Machine Protect Method: TP
High Light: C Frame Shaded Pole Motor ,83W 240V 60HZ Single Phase ,Kitchen Machine Fan Motor

Note: Listed are representative only for reference, can be customized according to customer requirements

C Frame Shaded Pole Motor 83W 240V 60HZ Single Phase upright holding cabinet oven Fan Motor

Production Feature :

2.38’’ C-FRAME MOTOR

Heavy-duty steel and die-cast construction

Several shaft size options

Several mounting options available

Several lead configurations available

Ball bearing or Sleeve bearing available

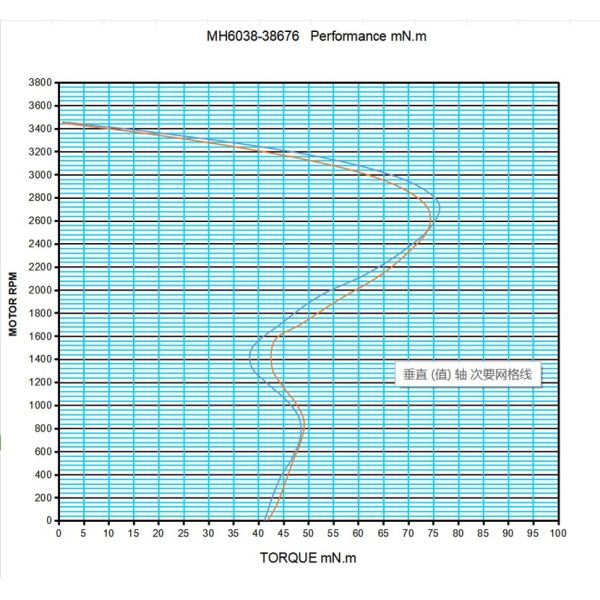

Performance Curve:

C Frame Shaded Pole Motor 83W 240V 60HZ Single Phase upright holding cabinet oven Fan Motor


Main Appilication:

Kitchen blender, insulated cabinet


Welcome your business chat and visit. Shanghai MH Electric Co.,Ltd has several years of experience engineering and manufacturing C-frame motors and blowers.Our Team members have more than 18 years of rich experience in the motor field. MH can provide the most cost-effective C-frame motor and air moving solutions for customers.

Thank you very much for viewing this page
Sincerely looking forward to our cooperation!
