Specifications
Brand Name :
TIPTOP
Model Number :
304,316,625,825,2205,2507
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 tons per month
Delivery Time :
10 days
Packaging Details :
Seaworthy wooden cases or wooden reels
Material :
304, 316, 304L, 316L
Standard :
ASTM B704
Length :
Customized
Product :
ASTM B704 Welded SS Stainless Steel Coiled Tubing 1/16"~1" OD
OD :
1/16"~1"
Thickness :
0.02"~0.083"
Description

ASTM B704 Welded SS Stainless Steel Coiled Tubing 1/16"~1" OD

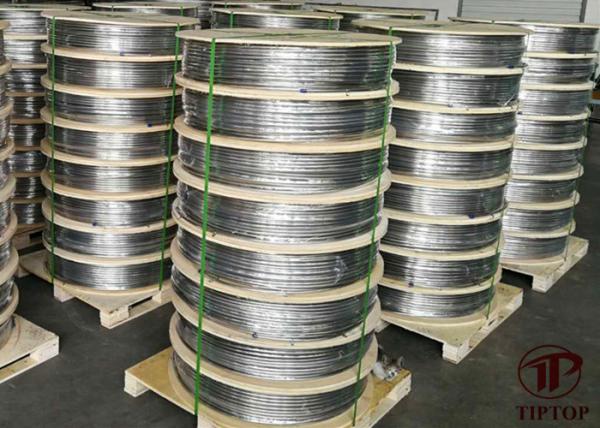

Tiptop is committed to providing customers with high-quality stainless steel coil tube. Our maximum length of stainless steel coil tube is 2300 feets. Depending on the application, we can provide different sizes SS coiled tubes. We also have various grades of stainless steel coil tubes, for example, 304, 304L, 316 and 316L stainless steel coiled tubes.

Stainless Steel Coil Tube Specification

Outside Diameter 1/16” to 3/4"
Thickness 0. 010" to 0.083”
Grades TP - 304,304L,316,316L
Seamless Coil Tubing Specifications ASTM A213 (average wall) and ASTM A269
Welded Coil Tubing Specifications ASTM A249 and ASTM A269

(WELDED 304/L OR 316/L)

Outside Diameter (OD) Wall Thickness
1/8” – 3/4” 0.5mm – 4mm

Stainless Steel Coil Tube Tolerance

Stainless Steel Coil Tube Specifications – Restricted Tolerance Controls

OD Tolerance: +0.005/-0 in.

Hardness: Maximum 80 HRB (Rockwell)

Wall Thickness: ±10%

Chemistry: Min. 2.5% Molybdenum

Stainless Steel Coil Tube Chemical Composition

The below table shows the chemical composition of the used for Stainless Steel Coil Tubes:

GRADES UNS C Mn P S Si Cr Ni Mo Ti Nb N
TP304 S30400 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0
TP304L S30403 0.035 2 0.045 0.03 1 18.0-20.0 8.0-13.0
TP316 S3160 0.08 2 0.045 0.03 1 16.0-18.0 11.0-14.0 2.0-3.0
TP316L S31603 0.035 2 0.045 0.03 1 16.0-18.0 10.0-14.0 2.0-3.0

Stainless Steel Coil Tube Mechanical Properties

Material Heat Treatment Min. Temperature (℉)

Min. Tensile Strength

(Ksi)

Min. Yield Strength

(Ksi)

 Min. Elongation %
TP304 1900 75 30 35
TP304L 1900 70 25 35
TP316 1900 75 30 35
TP316L 1900 70 25 35

Application

Industrial use: heat exchanger, boiler, petroleum, chemical, fertilizer, chemical fiber, pharmaceutical, nuclear power.

1

FAQ

Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.

Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.


Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.

Q4. How to ensure the quality?
A:Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
