Inconel 625 ASTM B704 Hydraulic Control Line Tubing
Inconel 625 ASTM B704 Hydraulic Control Line Tubing
Inconel 625 ASTM B704 Hydraulic Control Line Tubing
Inconel 625 ASTM B704 Hydraulic Control Line Tubing
Specifications
Brand Name :
TIPTOP
Model Number :
625
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 tons per month
Delivery Time :
10 days
Packaging Details :

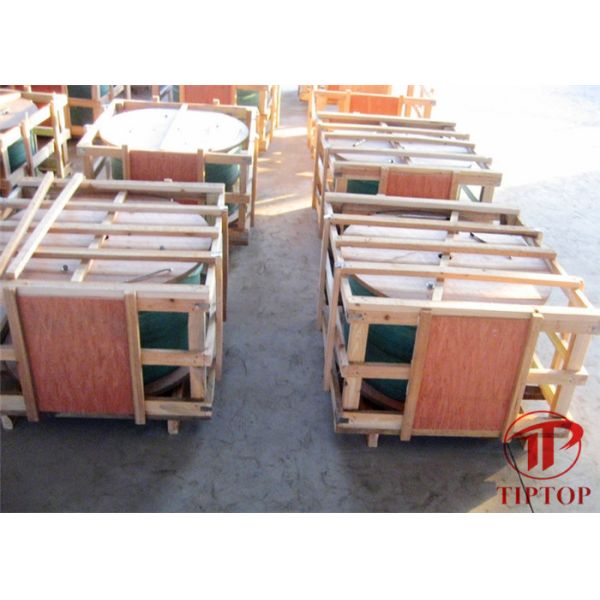

Seaworthy wooden cases or wooden reels
Material :
625
Standard :
ASTM B704
Length :
According to the sizes
Processing :
Bending, Welding, Cutting
OD :
1/16"~1"
Thickness :
0.02"~0.083"
Description

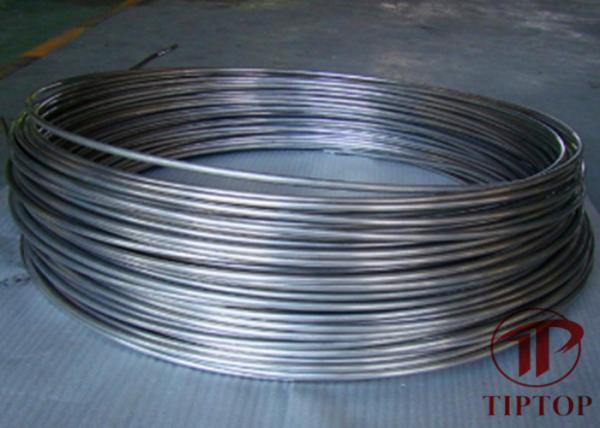

Inconel 625 Coiled Hydraulic Control Lines

We are professional Inconel 625, inconel625, alloy625, Alloy 625/UNS N06625 Stainless steel coiled control line tubes/pipes/tubing, Hydraulic Control lines, Chemical Injection Lines suppliers from China

The outer diameter of Inconel 625, inconel625, alloy625, Alloy 625/UNS N06625 Stainless steel coiled control line tubes/pipes/tubing, Hydraulic Control lines, Chemical Injection Lines that we could do is in 1/8", 1/4", 1/2", 3/8", 3/4", 5/8"

The wall thickness of Inconel 625, inconel625, alloy625, Alloy 625/UNS N06625 Stainless steel coiled control line tubes/pipes/tubing that we could do is in 0.028", 0.035", 0.049", 0.065", 0.083"

Our Inconel 625, inconel625, alloy625, Alloy 625/UNS N06625 Stainless steel coiled control line tubes/pipes/tubing, Hydraulic Control lines, Chemical Injection Lines are widely used in a numerous petrochemical applications, including:


Down hole tubes
Subsea umbilical's
Process constructions
General control system
Steam supply lines
Gas transport lines
Instrumentation


The pressure that we could meet is as follows: 50MPA— 130MPA
Welcome your inquiry


Chemical composition

Material C Mn P S Si Ni Cr Mo N Cu Fe Al Ti Cb+Ta
625 0.10 0.50 0.015 0.015 0.50 min 58.0 20.0-23.0 8.0-10.0 ... ... 5.0 0.4 0.40 3.15-4.15




Mechanical properties:(Minimum value at 20°C)



Tensile Strength
σb/MPa
Yield Strength
σp0.2/MPa
Elongation
σ5 /%

760
345
30




Standards



Bar
Forging
Sheet/Strip
Wire
Pipe

ASTM B446
ASTM B564
ASTM B443
ASTM B446
ASTM B444
ASTM B704
ASTM B705
