Specifications
Brand Name :
TIPTOP
Model Number :
3/4 " ~ 3 1/2"
Certification :
ISO
Place of Origin :
China
MOQ :
1 reel
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
3000 tons per month
Delivery Time :
10 days
Packaging Details :
wooden reels
Material :
CT70 ~ CT110
Standard :
API 5ST
Length :
Customized
Type :
Seamless
Description

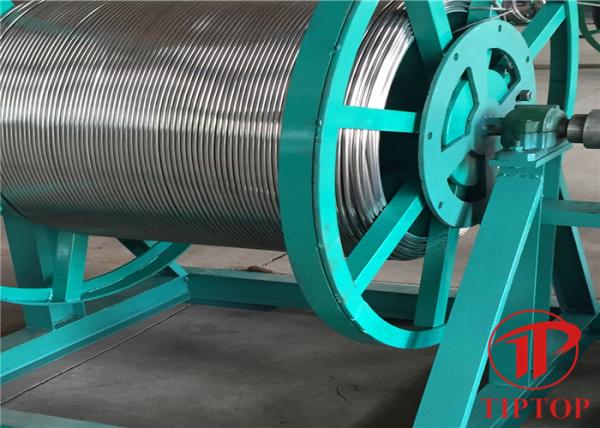

Conventional CT80 Coiled Tubing High-Strength API standard 3 / 4 ~ 3 1 / 2

Product introduction

As one of the main products of our company, conventional CT80 coiled tubing has more than 10 years of production history and supply experience, and now there is a mature production process and production line. Similar materials include CT70, CT80, CT90, CT100, CT110, etc. All our products are of high quality and fully conforms to API 5ST standard.

The composition, structure and mechanical properties of CT80 coiled tubing completely meet the standard requirements.Corrosion resistance, fatigue performance and other indicators are equivalent to the imported QT800 coiled tubing products, fully meeting the requirements of coiled tubing field operation.

Our products have complete specifications and can meet all working conditions. The outer diameter range of ST80 tube we supply is from 3/4”(Ф19.05mm) to 3 1/2”(Ф88.9mm). The thickness range is from 0.075" to 0.3" (1.9mm ~ 7.6mm). All dimensions and corresponding parameters are listed in the table below, we can also customize it according to customers' requirement details.

OD Thickness U-Weight yield
strength
Tension
strength
Loading of pipe body Min.
test pressure
specified Min. Min.
yield force
Min.
tension force
Inch Inch Inch lbs/ft psi psi lbs lbs psi
3/4 0.08~0.118 0.075~0.11 0.57~0.8 80000 90000 13470~18740 15160~21090 13600~15000
1 0.075~0.134 0.07~0.126 0.74~1.24 80000 90000 17440~29170 19620~32810 9500~15000
1 1/4 0.075~0.175 0.07~0.167 0.94~2.01 80000 90000 22150~47280 24920~53190 7600~15000
1 1/2 0.087~0.204 0.082~0.196 1.31~2.83 80000 90000 30900~66450 34760~74750 7400~15000
1 3/4 0.095~0.25 0.09~0.242 1.68~4.01 80000 90000 39510~94250 44450~106030 7000~15000
2 0.109~0.281 0.104~0.266 2.2~5.16 80000 90000 51800~121400 58280~136580 7100~15000
2 3/8 0.109~0.3 0.104~0.285 2.64~6.65 80000 90000 62080~156450 69840~176010 6000~15000
2 5/8 0.118~0.3 0.11~0.285 3.15~7.46 80000 90000 74350~175300 83640~197210 5700~14800
2 7/8 0.134~0.3 0.126~0.285 3.93~8.26 80000 90000 92310~194150 103850~218420 6000~13500
3 1/4 0.145~0.3 0.137~0.285 4.81~9.46 80000 90000 113150~222420 127300~250230 5700~11900
3 1/2 0.156~0.3 0.148~0.285 5.58~10.26 80000 90000 131110~241270 147500~271430 5800~11100

The chemical composition of the product conforms to the standard, as shown in the following table:

Grade max C max Mn max P max S max Si
CT80 0.16 1.2 0.02 0.01 0.5
