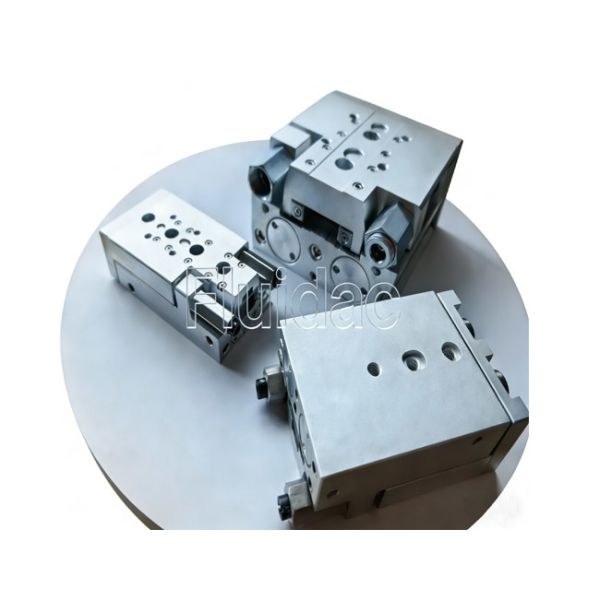

Mini Sliding Cylinder Double-acting Pneumatic Cylinder SLT Series SLT-16-10-P-A
Mini Sliding Cylinder Double-acting Pneumatic Cylinder SLT Series SLT-16-10-P-A
Mini Sliding Cylinder Double-acting Pneumatic Cylinder SLT Series SLT-16-10-P-A
Mini Sliding Cylinder Double-acting Pneumatic Cylinder SLT Series SLT-16-10-P-A
Specifications
Brand Name :
FLUIDAC or OEM
Model Number :
SLT-16-10-P-A
Certification :
ISO9001
Place of Origin :
Ningbo China(Mainland)
MOQ :
1 piece
Payment Terms :
TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability :
1000 Pieces Per month
Delivery Time :
Within 20 days after receiving payment or deposit
Packaging Details :
Boxes, Cartons,Wooden cases,Pallets
Bore size (mm) :
6mm~25mm
Motion Pattern :
Double action
Operating pressure range :
0.15~1.0MPa
Working Medium :
Dry Compressed Air
Material :
Aluminum Alloy
Stroke (mm) :
10.20.30.40.50.80.100.125.150.200
Description

Mini Sliding Cylinder Double-acting Pneumatic Cylinder SLT Series SLT-16-10-P-A

SLT Series sliding double acting Pneumatic air cylinder Bore size 6mm-25mm



SLT -16 - 80 - P - A

└─→ Type: Double acting Mini slide cylinder

└─→Piston Diameter (mm):6.10.16.20.25

└─→Stroke (mm): 10.20.30.40.50.80.100.125.150.200

└─→Cushion Type: Elastic cushion, Non-adjustable

└─→Position Sensing: Via Sensor

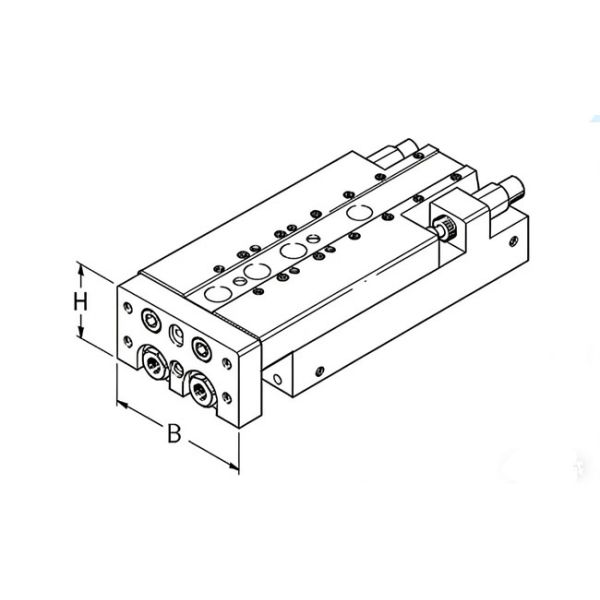

Piston Dia. Width (W) Height(H)
2*6mm 35 20mm
2*10mm 50 30mm
2*16mm 66 40mm
2*20mm 85 49mm
2*25mm 104 60mm


Operating and Environmental Conditions

Piston Diameter ⌀ [mm] 6 10 16 20 25
Working Medium Dry compressed air, lubricated or unlubricated
Operating Pressure [bar] 1.5 ... 10 1 ... 10
Ambient Temperature¹⁾ [°C] -20 ... +60
Corrosion Resistance Class CRC²⁾ 1





Mini Sliding Cylinder Double-acting Pneumatic Cylinder SLT Series SLT-16-10-P-A







Pneumatic Sliding cylinder,Air cylinder, Linear actuator,Gas cylinder,Double shaft air cylinder,Twin rod Pneumatic cyinder,Parallel air cylinder, compact air cylinder,table turnable air cyinder,rotary air cylinder,Rotary table cyinder, swivel table cylinder
