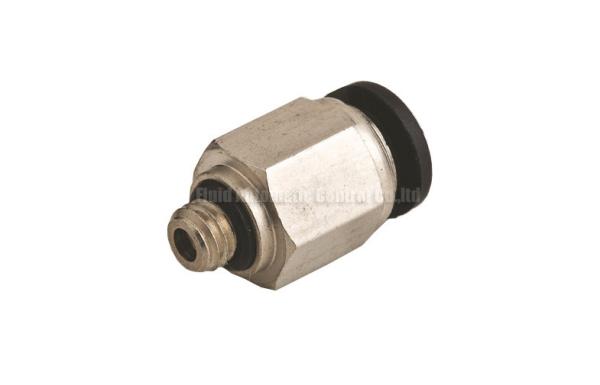

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

Miniature fitting straight,elbow,tee,run tee tube size 3mm,4mm,6mm,8mm,thread size M3,M5,M6,1/8”,1/4” Metric,G,PT,NPT e.g PC03-M3C

Quick Detail:

*Quick connect Miniature fitting

*Body material brass nickle plated or plastic engineering

*Lock claw material stainless steel,tight and stable

*Fast installation,easy and flexible connecting,saving space

*Diversfied model satisfy any need of piping work

* leak proof coated on thread to ensure good sealing peformance

*Threads available in G,PT,NPT,METRIC

*Thread sizeM3x0.5,M5x0.8,M6x1,1/8”,1/4”

*Tube size available metric 3,4,6,8 inch 5/32,3/16,1/4,5/16

*Straight,tee,branch tee ,elbow

*Compact type,small volume

Applications:


Compact miniature fitting used widely in metallurgy,oil industrial,chemical,textile,aviation,mechanical automation,transporation,electronics,medicine equipment,teching equipment as airline connector

Specifications:

Specification

Fluid Type

Air.Vacuum

Working Pressure Range

0~10.2Kgf/cm²(1.0Mpa)

Negative Pressure

-750mmHg(10Torr)

Pressure Resistance

15.3Kgf/cm²(1.5Mpa)

Operating Temperature

0~60℃

Applicable Tubing type

Nylon And Polyurethane

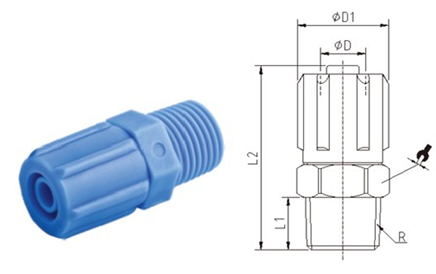

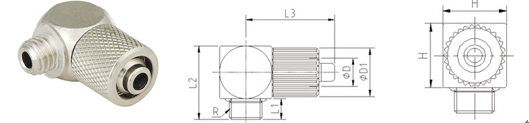

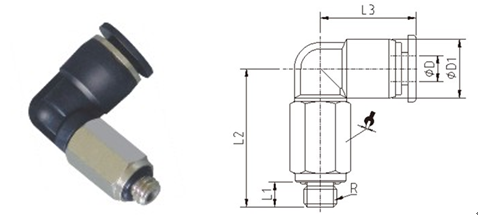

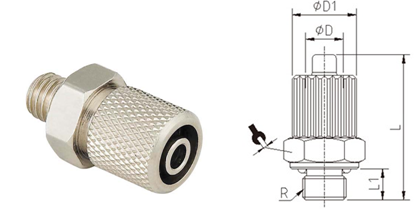

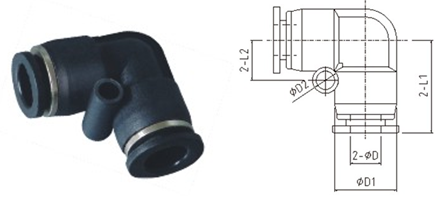

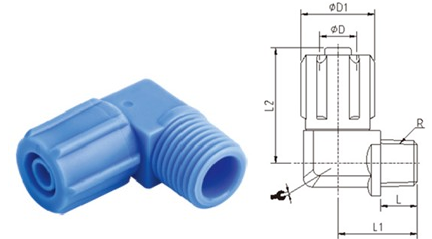

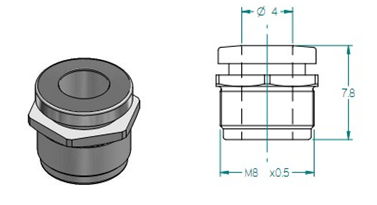

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

MODEL

ΦD

R

L1

L2

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

PC03-M3C

3

M3X0.5

3.5

15

　

8

PC03-M5C

3

M5X0.8

3.5

16

2

8

PC03-M6C

3

M6X1.0

4

16

2

8

PC03-01C

3

R1/8

7.5

15

2

10

PC03-G01C

3

G1/8

5.5

14.6

2

14

PC04-M3C

4

M3X0.5

3.5

17.5

　

8

PC04-M5C

4

M5X0.8

3.5

18.5

2

8

PC04-M6C

4

M6X1.0

4

19

2

8

PC04-01C

4

R1/8

7.5

16

3

10

PC04-G01C

4

G1/8

5.5

15.2

3

14

PC04-G02C

4

G1/4

7.5

17.2

3

17

PC06-M3C

6

M3X0.5

3.5

18

　

10

PC06-M5C

6

M5X0.8

3.5

18

2

10

PC06-M6C

6

M6X1.0

4

18.5

2

10

PC06-01C

6

R1/8

7.5

18.5

4

10

PC06-G01C

6

G1/8

5

17.2

4

13

PC06-G02C

6

G1/4

7.5

18.5

4

17

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

MODEL

ΦD

R

L1

L2

ΦD1

ΦD2

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

POC03-M3C

3

M3X0.5

3.5

15

6.5

7.5

　

POC03-M5C

3

M5X0.8

3.5

16

7

7.5

2

POC03-M6C

3

M6X1.0

4

16

8

7.5

2

POC03-G01C

3

G1/8

5.5

14.6

14

7.5

2

POC04-M3C

4

M3X0.5

3.5

17.5

8

10

　

POC04-M5C

4

M5X0.8

3.5

18

8

10

2

POC04-M6C

4

M6X1.0

4

18.5

9

10

2

POC04-01C

4

R1/8

7.5

15.5

10

10

3

POC04-G01C

4

G1/8

5.5

15.2

14

10

3

POC04-G02C

4

G1/4

7.5

17.2

17

10

3

POC06-M3C

6

M3X0.5

3.5

18

10

11.5

　

POC06-M5C

6

M5X0.8

3.5

18

10

11.5

2

POC06-M6C

6

M6X1.0

4

18.5

10

11.5

2

POC06-01C

6

R1/8

7.5

18.5

10

11.5

4

POC06-G01C

6

G1/8

5.5

17.6

14

11.5

4

POC06-G02C

6

G1/4

7.5

18.5

17

11.5

4

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

MODEL

ΦD

R

L1

L2

L3

ΦD1

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

PL03-M3C

3

M3X0.5

3.5

16

12

7.5

8

PL03-M5C

3

M5X0.8

3.5

16

12

7.5

8

PL03-M6C

3

M6X1.0

4

16.5

12

7.5

8

PL03-01C

3

R1/8

7.5

16.5

12

7.5

10

PL03-G01C

3

G1/8

5.5

16

12

7.5

14

PL04-M3C

4

M3X0.5

3.5

17.2

14

9.5

8

PL04-M5C

4

M5X0.8

3.5

17.2

14

9.5

8

PL04-M6C

4

M6X1.0

4

17.6

14

9.5

10

PL04-01C

4

R1/8

7.5

18

14

9.5

10

PL04-G01C

4

G1/8

5.5

16.5

14

9.5

13

PL04-G02C

4

G1/4

7.5

19.5

14

9.5

17

PL06-M5C

6

M5X0.8

3.5

17.2

16

11.5

8

PL06-M6C

6

M6X1.0

4

17.6

16

11.5

10

PL06-01C

6

R1/8

7.5

18

16

11.5

10

PL06-G01C

6

G1/8

5.5

16.5

16

11.5

13

PL06-G02C

6

G1/4

7.5

19.5

16

11.5

17

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

MODEL

ΦD

R

L1

L2

L3

ΦD1

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

PLL03-M3C

3

M3X0.5

3.5

24

12

7.5

8

PLL03-M5C

3

M5X0.8

3.5

24

12

7.5

8

PLL03-M6C

3

M6X1.0

4

24.5

12

7.5

8

PLL03-01C

3

R1/8

7.5

24.5

12

7.5

10

PLL03-G01C

3

G1/8

5.5

24

12

7.5

14

PLL04-M3C

4

M3X0.5

3.5

29.2

14

9.5

8

PLL04-M5C

4

M5X0.8

3.5

29.2

14

9.5

8

PLL04-M6C

4

M6X1.0

4

29.6

14

9.5

10

PLL04-01C

4

R1/8

7.5

30

14

9.5

10

PLL04-G01C

4

G1/8

5.5

28.5

14

9.5

14

PLL04-G02C

4

G1/4

7.5

31.5

14

9.5

17

PLL06-M5C

6

M5X0.8

3.5

29.2

16

11.5

8

PLL06-M6C

6

M6X1.0

4

29.6

16

11.5

10

PLL06-01C

6

R1/8

7.5

30

16

11.5

10

PLL06-G01C

6

G1/8

5.5

28.5

16

11.5

14

PLL06-G02C

6

G1/4

7.5

31.5

16

11.5

17

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

MODEL

ΦD

R

L1

L2

L3

ΦD1

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

PB03-M3C

3

M3X0.5

3.5

16

24

7.5

8

PB03-M5C

3

M5X0.8

3.5

16

24

7.5

8

PB03-M6C

3

M6X1.0

4

16.5

24

7.5

8

PB03-01C

3

R1/8

7.5

16.5

24

7.5

10

PB03-G01C

3

G1/8

5.5

16

24

7.5

14

PB04-M3C

4

M3X0.5

3.5

17.2

28

9.5

8

PB04-M5C

4

M5X0.8

3.5

17.2

28

9.5

8

PB04-M6C

4

M6X1.0

4

17.6

28

9.5

10

PB04-01C

4

R1/8

7.5

18

28

9.5

10

PB04-G01C

4

G1/8

5.5

16.5

28

9.5

14

PB04-G02C

4

G1/4

7.5

19.5

28

9.5

17

PB06-M5C

6

M5X0.8

3.5

18.2

32

11.5

8

PB06-M6C

6

M6X1.0

4

18.6

32

11.5

10

PB06-01C

6

R1/8

7.5

19

32

11.5

10

PB06-G01C

6

G1/8

5.5

16.5

32

11.5

14

PB06-G02C

6

G1/4

7.5

19.5

32

11.5

17

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

MODEL

ΦD

R

L1

L2

L3

ΦD1

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

PD03-M3C

3

M3X0.5

3.5

16

12

7.5

8

PD03-M5C

3

M5X0.8

3.5

16

12

7.5

8

PD03-M6C

3

M6X1.0

4

16.5

12

7.5

8

PD03-01C

3

R1/8

7.5

16.5

12

7.5

10

PD03-G01C

3

G1/8

5.5

16

12

7.5

14

PD04-M3C

4

M3X0.5

3.5

17.2

14

9.5

8

PD04-M5C

4

M5X0.8

3.5

17.2

14

9.5

8

PD04-M6C

4

M6X1.0

4

17.6

14

9.5

10

PD04-01C

4

R1/8

7.5

18

14

9.5

10

PD04-G01C

4

G1/8

5.5

16.5

14

9.5

14

PD04-G02C

4

G1/4

7.5

19.5

14

9.5

17

PD06-M5C

6

M5X0.8

3.5

18.2

14.5

11.5

8

PD06-M6C

6

M6X1.0

4

18.6

14.5

11.5

10

PD06-01C

6

R1/8

7.5

19

14.5

11.5

10

PD06-G01C

6

G1/8

5.5

16.5

16

11.5

14

PD06-G02C

6

G1/4

7.5

19.5

16

11.5

17

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

MODEL

ΦD

ΦD1

ΦD2

L1

L2

PV03C

3

7.5

3.2

12

4.8

PV04C

4

9.5

3.2

14.5

6

PV06C

6

11.5

3.2

16

6.5

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

MODEL

ΦD

ΦD1

L

PU03C

3

7.5

21

PU04C

4

9.5

26.5

PU06C

6

11.5

27.5

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

MODEL

ΦD

R

L1

L

ΦD1

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

TC03-M3

3

M3X0.5

3

15.2

6

7

TC03-M5

3

M5X0.8

3.5

15.5

6

7

TC04-M3

4

M3X0.5

3

17

7.5

8

TC04-M5

4

M5X0.8

3.5

17

7.5

8

TC04-M6

4

M6X1.0

4

17

7.5

10

TC04-01

4

R1/8

7.5

20.5

7.5

14

TC06-M5

6

M5X0.8

3.5

20.3

9.5

10

TC06-M6

6

M6X1.0

4

20.8

9.5

10

TC06-01

6

R1/8

7.5

23.3

9.5

14

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

MODEL

ΦD

R

H

L1

L

ΦD1

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

TL03-M5

3

M3X0.5

8

3

12

13.5

6

TL04-M3

4

M3X0.5

8

3

10.5

13.5

7.5

TL04-M5

4

M5X0.8

8

3.5

12

13.5

7.5

TL04-M6

4

M6X1.0

10

4

12.5

14.5

7.5

TL04-01

4

R1/8

14

7.5

19.5

16.5

7.5

TL06-M5

6

M5X0.8

10

3.5

14

17.3

9.5

TL06-M6

6

M6X1.0

10

4

14.3

17.3

9.5

TL06-01

6

R1/8

14

7.5

19.5

19.3

9.5

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

MODEL

ΦD

R

L1

L2

ΦD1

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

PTC06-01

6

R1/8

8

29

14

12

PTC06-02

6

R1/4

11

32

14

14

PTC08-01

8

R1/8

8

30.5

16

14

PTC08-02

8

R1/4

11

33.5

16

14

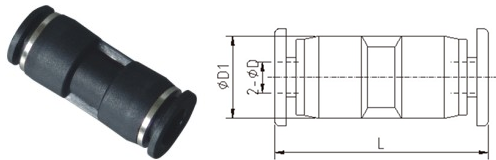

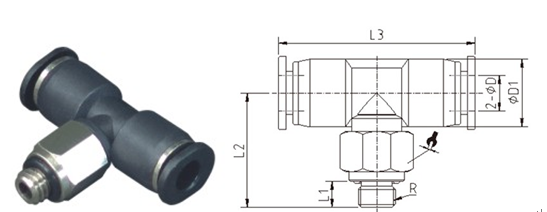

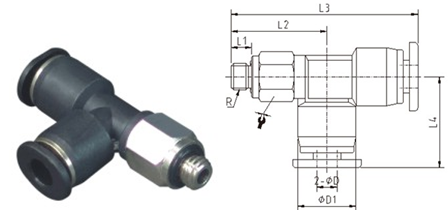

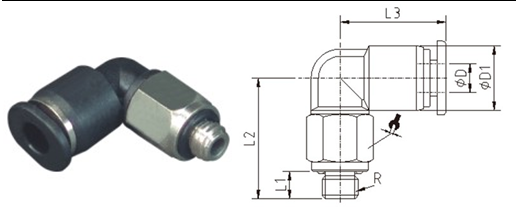

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

MODEL

ΦD

R

L

L1

L2

ΦD1

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

PTL06-01

6

R1/8

8

17

22

14

12

PTL06-02

6

R1/4

11

20

22

14

12

PTL08-01

8

R1/8

8

17

23.5

16

12

PTL08-02

8

R1/4

11

20

23.5

16

12

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

MODEL

ΦD

ΦD1

ΦD2

L

FS-06

6

4

12.5

16

FS-08

8

5

14.5

18

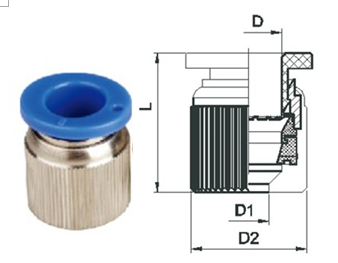

FESTO Type customized miniature fitting

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

Miniature fitting,micro fitting,pneumatic tube fitting

Product tags

tube coupler

,

pneumatic tube fittings

,

seamless brass tube
Send your message to this supplier
Send Now

Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

Ask Latest Price
Product Detail
Place of Origin :
Ningbo China(Mainland)
Brand Name :
FLUIDAC or OEM
Certification :
ISO9001
Model Number :
PC03-M3C
MOQ :
50 piece
Price :
USD0.1--
Contact Supplier
Miniature Brass Pneumatic Tube Fittings Straight / Branch Tee Type

FENGHUA FLUID AUTOMATIC CONTROL CO.,LTD

Verified Supplier
13 Years
Since 2005
Business Type :
Manufacturer, Exporter
Main Products :
Solenoid Operated Directional Control Valve, 2 Way Pneumatic Solenoid Valve, Manual Directional Control Valve
Total Annual :
5 Million-10 Million
Employee Number :
150~200
Certification Level :
Verified Supplier
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Pneumatic Tube Fittings
MachineU China Products Machinery Machinery Accessories Pneumatic Parts
Contact Supplier
Submit Requirement
