Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace
Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace
Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace
Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace
Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace
Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace
Specifications
Brand Name :
JINGJIE
Model Number :
HCCM
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
T/T or L/C
Supply Ability :
10sets per month
Delivery Time :
30 working days after received your payment
Packaging Details :
Packed in wooden case for outer packing
Product material :
Brass
Product :
Bar
Product diameters :
Φ100mmx1-strand
Type :
Horizontal
Length :
1.5m
Furnace type :
Melting and holding furnace split type
Melting furnace power :
120KW
Holding furnace :
80KW
Description

Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type 120KW Melting and 80KW Holding Furnace

Ⅰ.Process:

Melting furnace--Chute--Holding furnace-Mould--Micro-travel reversible casting machine--Synchronizing shearing machines-- Hydraulic unit--cooling unit--Electromechanical control unit

1.1 For casting of pure metal or special requirements, subsurface channel-type smelting-holding combination furnace or controllable channel-type smelting-holding combination furnace can be adopted;
1.2 For producing round-shaped, tubular-shaped and special-shaped billets, cut-to-length synchronizing sawing machine can be adopted;
1.3 For producing round-shaped, tubular-shaped and special-shaped billets, the material stock platform for receiving and storing billets can be adopted.


Ⅱ. Specifications:

2.1 Material of casting specifications
* Brass Bar
2.2 Rod billets (round-shaped)
* a. Diameter range -----Φ100mm
* b. Number of production lines -----1- Strand



Ⅲ. Equipment Components List of Horizontal Continuous Casting Production line for Brass Bar

No. Equipment Name and Spec. Unit Quantity Remarks
1 Melting furnace set 1 Including melting groove, coil, water jacket and iron core.
2 Chute set 1 One in-use and one standby
3 Holding furnace set 1 Including melting groove, coil, water jacket, iron core, vertical temperature measurement device (specially-made), thermocouple (containing platinum and rhodium) and protection tube.
4 Molten steel storage ladle and chute set 1 For transferring material into the mold after sintering in holding furnace.
5 mold system (Ф150) set 6 Including graphite mold
6 Dragger (7.5KW) set 1
7 Synchronized auto-tracking sawing machine set 1
8 Material stock platform set 1 Chain drive, length of 3M
9 Header tank set 1
10 Traction carrier roller Set 1
11 Cooling water distributor set 1 Including cooling water for transformer, reactor, coil of electric furnace, water jacket, water-cooling cable, and mold (primary and secondary cooling).
12 Hydraulic system set 2

Including hydraulic station and cylinder
(The hydraulic components produced by YUCI YUKEN HYDRAULICS CO., LTD. are adopted)
13 Electric-control operation system of electric furnace set 1 Including the control cabinet for melting furnace and holding furnace (Siemens is chosen for main electrical elements).
14 Process control operation system set 1 For control of servo motor and process, synchronized auto-tracking sawing machine, and control of material stock platform.




Ⅵ. Pictures of Brass Bar Horizontal Continuous Casting Machine

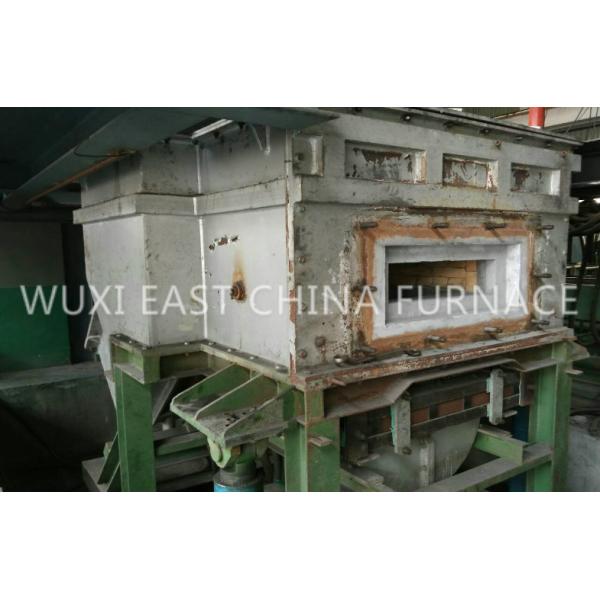

MELTING AND HOLDING FURNACE

Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace

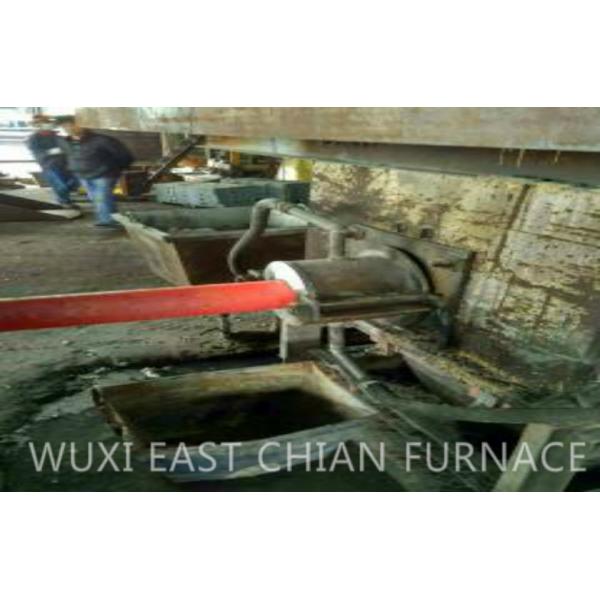

MOULD

Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace


DRAGGER
Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace

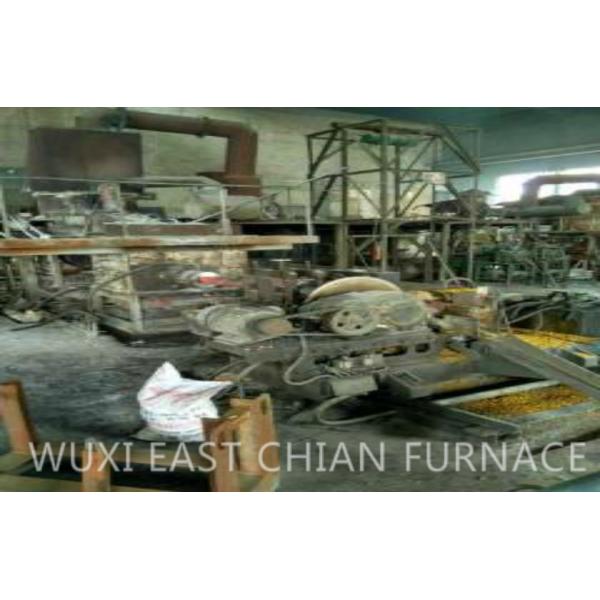

SAWING MACHINE
Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace

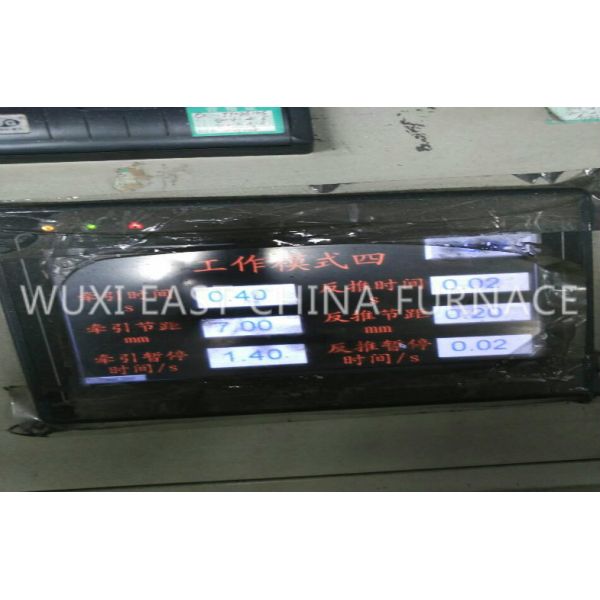

ELECTRIC CONTROL SYSTEM

Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace

Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace

Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace

Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace
