Durable 12 Wheel SINOTRUK HOWO 8x4 Mining Dump Truck Tipper Truck In Stock
Durable 12 Wheel SINOTRUK HOWO 8x4 Mining Dump Truck Tipper Truck In Stock
Durable 12 Wheel SINOTRUK HOWO 8x4 Mining Dump Truck Tipper Truck In Stock
Durable 12 Wheel SINOTRUK HOWO 8x4 Mining Dump Truck Tipper Truck In Stock
Durable 12 Wheel SINOTRUK HOWO 8x4 Mining Dump Truck Tipper Truck In Stock
Durable 12 Wheel SINOTRUK HOWO 8x4 Mining Dump Truck Tipper Truck In Stock
Durable 12 Wheel SINOTRUK HOWO 8x4 Mining Dump Truck Tipper Truck In Stock
Durable 12 Wheel SINOTRUK HOWO 8x4 Mining Dump Truck Tipper Truck In Stock
Durable 12 Wheel SINOTRUK HOWO 8x4 Mining Dump Truck Tipper Truck In Stock
Durable 12 Wheel SINOTRUK HOWO 8x4 Mining Dump Truck Tipper Truck In Stock
Specifications
Brand Name :
SINOTRUK HOWO
Model Number :
ZZ3317N3567W
Certification :
SGS, BV, CIQ, FORM E
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1500 Unit / Per Month
Delivery Time :
30 working days
Packaging Details :
Nude
Loading Tons :
40-50 Tons
Engine :
WD615.47, 371HP
Gearbox :
10 forward and 2 reverse gear
Cabin :
HW76, with one bed, A/C
Tire :
12.00R20, 12+1 pcs
Max Speed :
75km/h
Description

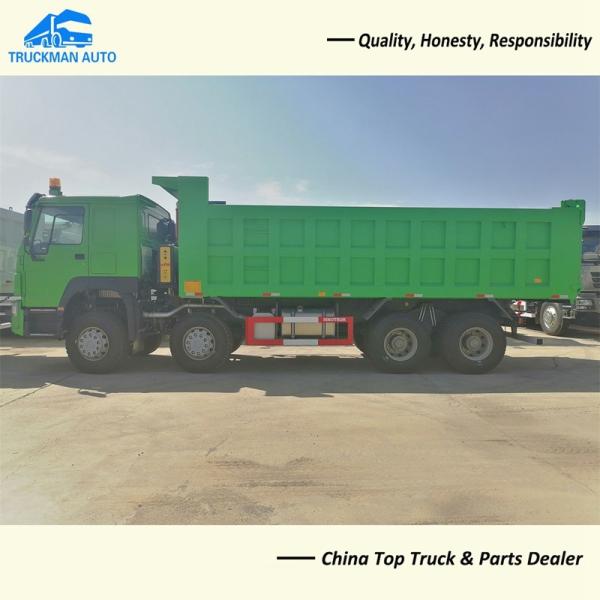

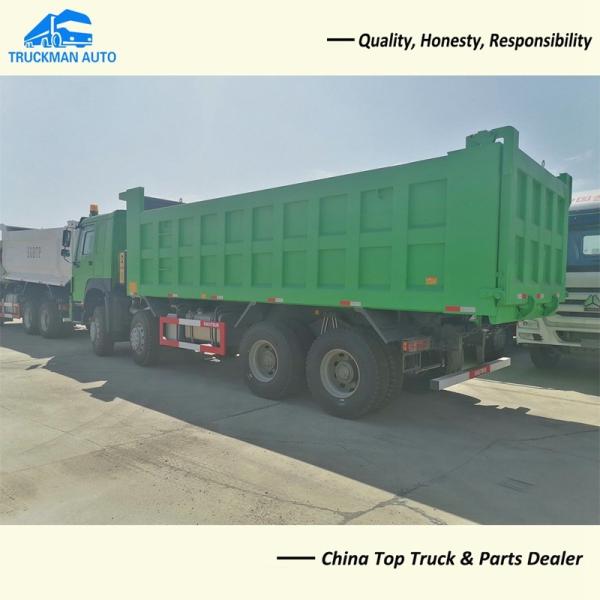

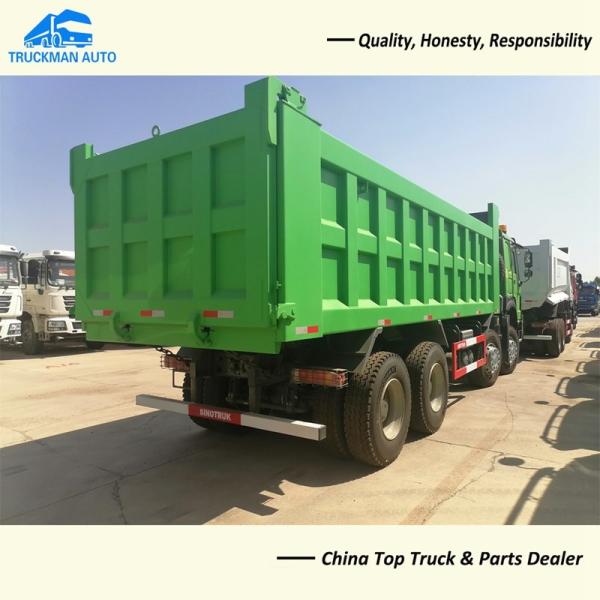

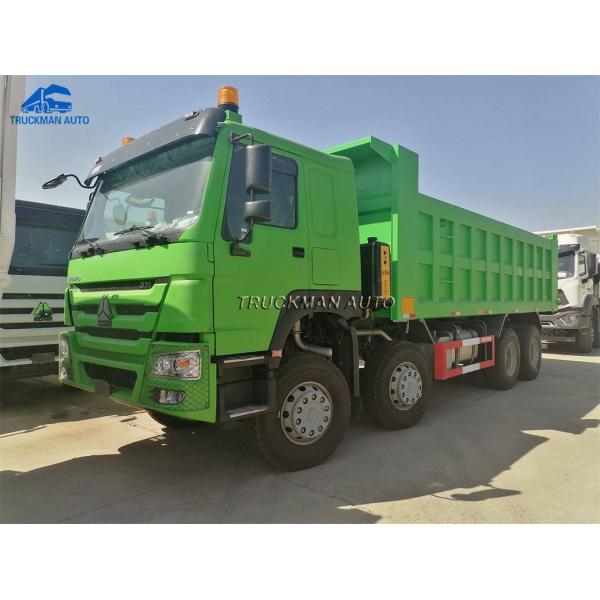

-1. SINOTRUK HOWO 8x4 Mining Dump Truck Detail.

SINOTRUK HOWO 8x4 mining dump truck can transport all kind of mining material, such as bauxite,

limestone, sand, gravel, copper etc. The main parts lifting system adopt the HYVA brand, lifting smoothly

and stable, also the after sales service very convenient.

-2. SINOTRUK HOWO 8x4 Mining Dump Truck Main Specification.

Description Parameter value
Product Name SINOTRUK HOWO 8x4 Mining Dump Truck
Application For construction and mining work
Engine WD615.47, 371HP, EURO II
Cabin HW76 model, with bed, A/C, top warning lamp
Gearbox HW19710, 10 forward and 2 reverse gear
Front Axle 2x9,000kg
Driving Axle 2x16,000kg
Tire 12.00R20, 12+1 pcs, TRIANGLE brand
Bucket 7300x2300x1500mm, bottom 8mm, side 6mm
Fuel Tank 300L (400L fuel tank optional)
Loading Tons 40-50 tons
Other Intercooler protect cover, reverse buzzer optional
Dimension 10400x2580x3400mm

Durable 12 Wheel SINOTRUK HOWO 8x4 Mining Dump Truck Tipper Truck In Stock

The SINOTRUK HOWO 8x4 mining dump truck specification is only for reference, we could

recommend the other model SINOTRUK HOWO 8x4 dump truck according to your request.

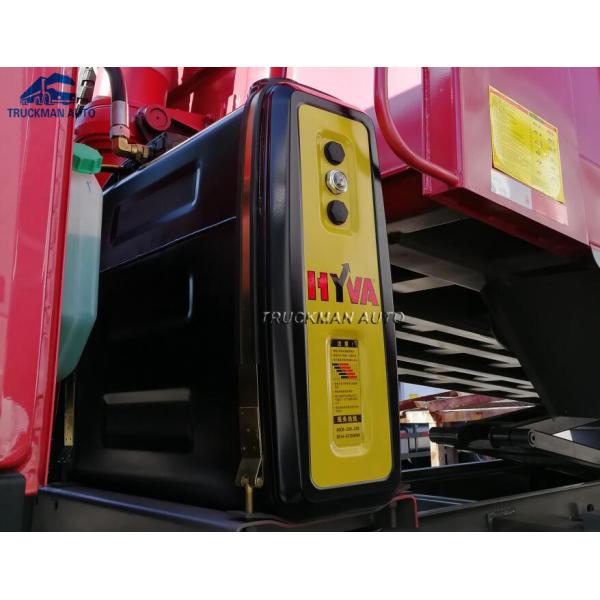

-3. SINOTRUK HOWO 8x4 Mining Dump Truck Lifting System.

Durable 12 Wheel SINOTRUK HOWO 8x4 Mining Dump Truck Tipper Truck In Stock

Our dump truck adopts Hyva-brand lifting system, the main components are Hyva hydraulic pump, Hyva

hydraulic oil tank, Hyva pneumatic valve, high-pressure oil pipe, low-pressure oil pipe, body locking device

and joints. Among them, Hyva hydraulic cylinders are excellent in quality, durable, excellent in performance,

safe and reliable, and Hyva hydraulic climbing valve is the control hub of the entire system. It has

two overflow functions to ensure that the system can work safely and stably for a long time. It adopts

proportional control. The system pressure fluctuation is small, and the operation is stable and reliable.

The use of Hyva's complete set of front roof hydraulic climbing system for dump trucks can effectively

extend the service life of the dump truck cylinder and the entire system and reduce maintenance costs.
