Specifications
Brand Name :
TRUCKMAN AUTO
Model Number :
TKMW360
Certification :
SGS, BV, CIQ
Place of Origin :
SHANDONG, CHINA
MOQ :
1 Unit
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1500 Unit / Per Month
Delivery Time :
7-10 working days
Packaging Details :
Nude
Product Name :
Fence cargo trailer
Loading Tons :
50-70 Tons
Support Leg :
JOST brand, 28 tons
Suspension :
mechanical type
Paint :
Polyurethane paint more light
Other :
With side and rear bumper
Description

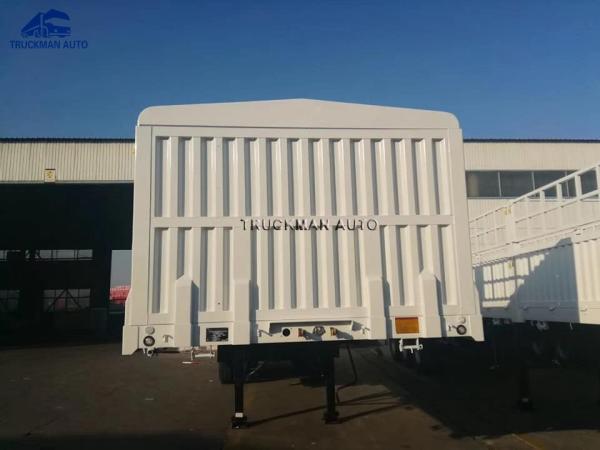

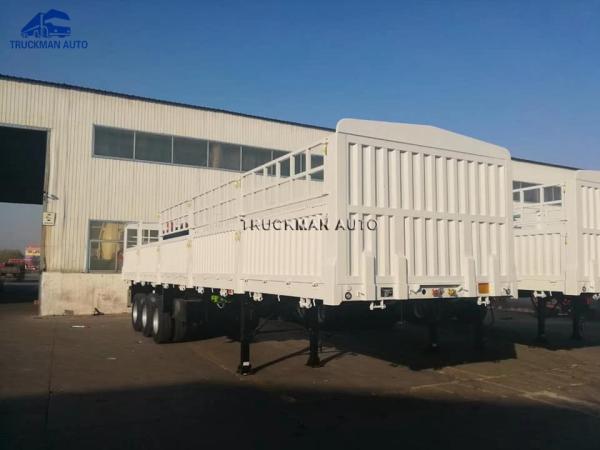

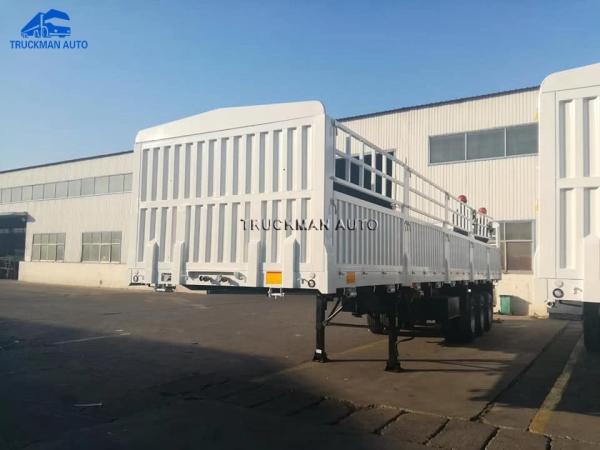

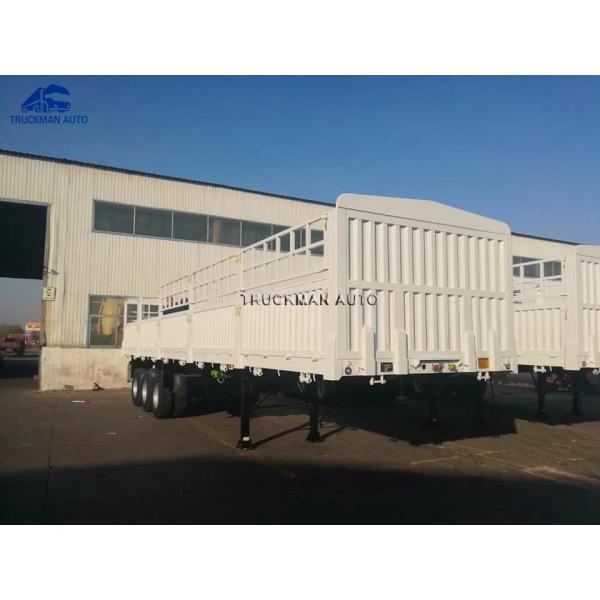

3 Axle 50 Tons Fence Cargo Trailer For Sudan

-1. 50 Tons Fence Cargo Trailer Main Detail.

50 tons fence cargo trailer is special design for Sudan market, with two pcs big repair tool box, 12R24 model big tire.

The total loading capacity could reach to 70 tons, with stronger material, like T700 model steel. The fence cargo trailer

also could transport the container after remove the fence and add container lock.

3 Axle 50 Tons Fence Cargo Trailer 18mm Thickness Rim

-2. 50 Tons Fence Cargo Trailer Main Specification.

Description Parameter value
Product Name Fence cargo trailer
Loading Weight 70,000kg
Tare Weight 10,000kg
Axle 3 axle, 3x13 tons
Suspension America type, 8mm thickness
Leaf Spring 90x16mmx10pcsx6sets
Rim 18mm thickness

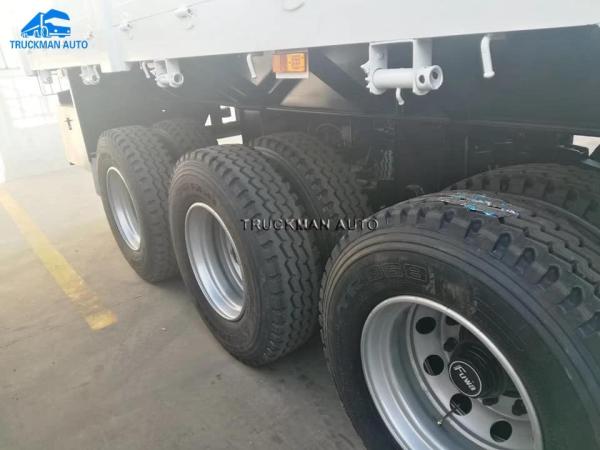

Tire 12.00R20 or 315/80R22.5, 12 pcs
Brake System WABCO brand, ABS and 6 pcs brake chamber
Thickness Of Frame

Upper plate 16mm, middle 8mm,

lower plate 18mm, “I” type main beam
Material T700, high strength steel
Dimension 12500x2500x800+600mm

-3. 50 Tons Fence Cargo Trailer Shipment Video.

Usual we put 2 units or 3 units fence cargo trailer put one group, and reduce the total volume save the freight cost,

also will more stronger and stable during at transportation.
