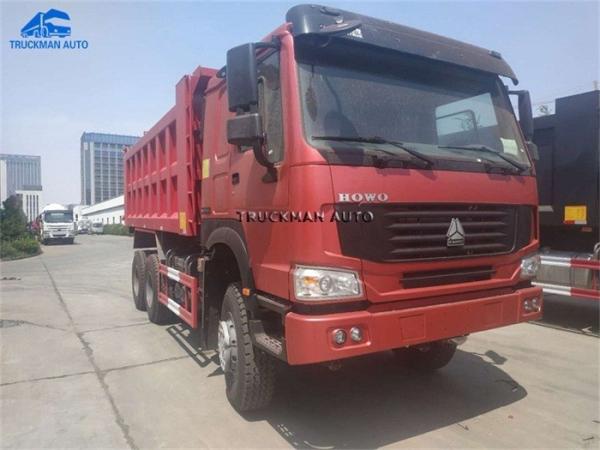

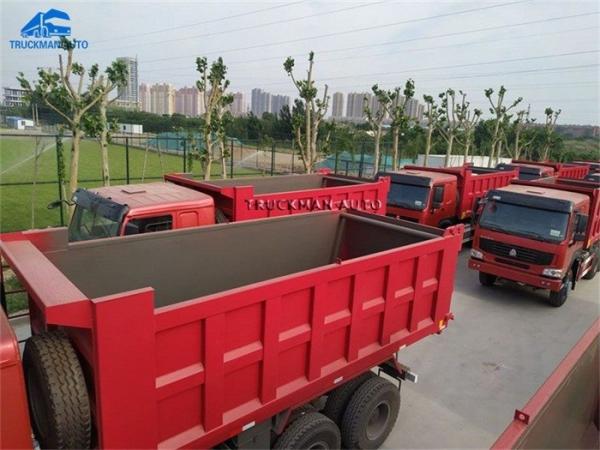

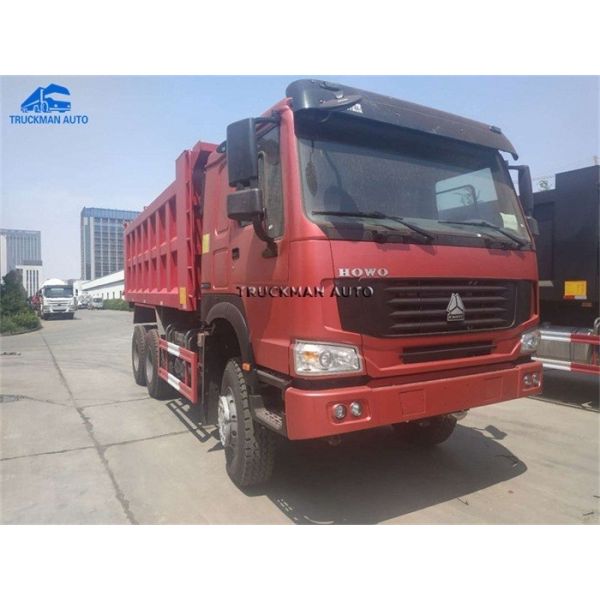

SINO TRUCK 25 Tons 371HP Heavy Duty Dump Truck For South Sudan
SINO TRUCK 25 Tons 371HP Heavy Duty Dump Truck For South Sudan
SINO TRUCK 25 Tons 371HP Heavy Duty Dump Truck For South Sudan
SINO TRUCK 25 Tons 371HP Heavy Duty Dump Truck For South Sudan
Specifications
Brand Name :
SINOTRUK HOWO
Model Number :
ZZ3257N3647A
Certification :
SGS, BV
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1500 Unit / Per Month
Delivery Time :
30-35 working days
Packaging Details :
Nude
Engine :
WD615.47, 371HP
Cabin :
HW76, with one bed
Gearbox :
HW19710, 10F & 2R
Cargo Box :
5600x2300x1400mm, 18m3
Tire :
12.00R20 or optional
Loading Tons :
25-30 Tons
Max Speed :
75km/h
Warranty :
1 year for main parts
Description

-. Main Specification For Sino Truck Dump Truck

With 371HP big horsepower engine, 5600x2300x1400mm, 18m3 cargo box. The sino truck dump truck could suitable for south sudan local work condition. especially the truck filter is adopt the PARKER tech, improve the filter using time. and also main parts such as engine, gearbox, drive axle etc supply one year warranty !

SINO TRUCK 25 Tons 371HP Heavy Duty Dump Truck For South Sudan

-. Main Specification For Sino Truck Dump Truck.

Model SINO TRUCK dump truck
Engine WD615.47, 371HP
Cabin HW76 cabin, one bed, A/C.
Gearbox HW19710, 10 forward and 2 reverse gear
Cargo Box 5600x2300x1400mm, bottom 8mm, side 6mm
Tire 12.00R20, 10+1 spare tire, TRIANGLE brand
Loading Tons 25-30 Tons
Max Speed 75km/h
Warranty 1 year

-. How To maintenance Sino Truck Dump Truck ?

A. Cargo Box Hydraulic Lifting System:

Check the hydraulic oil tank if any stock, If no enough, please add but not too much. Front hydraulic lifting system have a hydraulic oil observation position (red mark), see picture. The middle hydraulic lifting system need find a long pole, such as chopsticks. And stretch the chopsticks straight to the bottom of the hydraulic oil tank, and then take it out to see where the hydraulic oil is in the chopsticks.

B. Brake Lining.

Check the brake lining degree of wear.

C. Bolt.

After a period of use, tighten the tire bolts, U bolts, chassis bolt etc.

D. Oil and Air Leakage.

Check the truck engine, hydraulic system, gearbox, drive axle etc if any oil leakage issue. and also check all truck's pipe if any gas leakage issue.

E. Tire Pressure:

Frequently check the tire pressure, and tire pattern.

F. Air Filter.

If the working condition is dirty, need 2 month check and clean the air filter. If the air filter too dirty need
