Specifications
Brand Name :
SINOTRUK HOWO
Model Number :
ZZ3317N3567W
Certification :
SGS, BV, CIQ, FORM E
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1500 Unit / Per Month
Delivery Time :
30 working days
Packaging Details :
Nude
Engine :
WD615.47, 371HP
Gearbox :
10 forward and 2 reverse gear
Cabin :
HW76, with one bed, A/C
Loading Tons :
40-50 Tons
Tire :
13R22.5, 12+1 spare tire
Max Speed :
75km/h
Description

-1. SINOTRUK HOWO 50 Tons Tipper Truck Truck Detail.

12 wheel SINOTRUK HOWO 50 tons tipper truck can suitable for mining and construction work, the bucket

material adopt the HARDOX 450 wearable steel, and adopt the automatic welding.

-2. SINOTRUK HOWO 50 Tons Tipper Truck Truck Main Specification.

Description Parameter value
Product Name SINOTRUK HOWO 50 Tons Tipper Truck
Application For construction work only
Engine WD615.47, 371HP, EURO II
Cabin HW76 model, with one bed, A/C
Gearbox HW19710, 10 forward and 2 reverse gear
Front Axle 2x9,000kg
Driving Axle 2x16,000kg
Tire 13R22.5, 12+1 pcs, TRIANGLE brand
Bucket 7000x2300x1500mm, bottom 8mm, side 6mm
Fuel Tank 300L (400L fuel tank optional)
Loading Tons 40-50 tons
Other Intercooler protect cover, reverse buzzer optional
Dimension 10200x2580x3350mm

371HP 12 Wheeler SINOTRUK HOWO 50 Tons Tipper Trucks For Ghana

The SINOTRUK HOWO 50 tons tipper truck specification is only for reference, we could recommend the other

model SINOTRUK HOWO tipper truck according to your request.

-3. SINOTRUK HOWO 50 Tons Tipper Truck Gearbox Detail.

371HP 12 Wheeler SINOTRUK HOWO 50 Tons Tipper Trucks For Ghana

The SINOTRUK HOWO 50 tons tipper truck adopt the HW19710 model gearbox, with 10 forward gear and 2 reverse gear.

The gearbox collocation with HW70 series power take off, supply the enough power to tipper truck lifting the bucket.

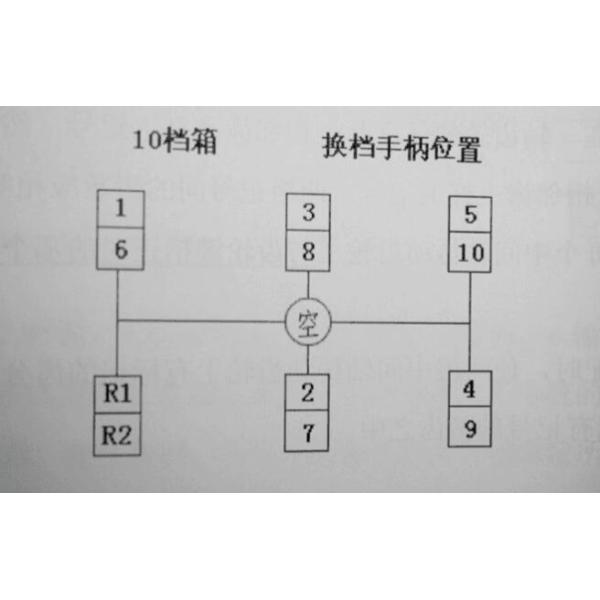

And here is gearbox gear picture for your reference.

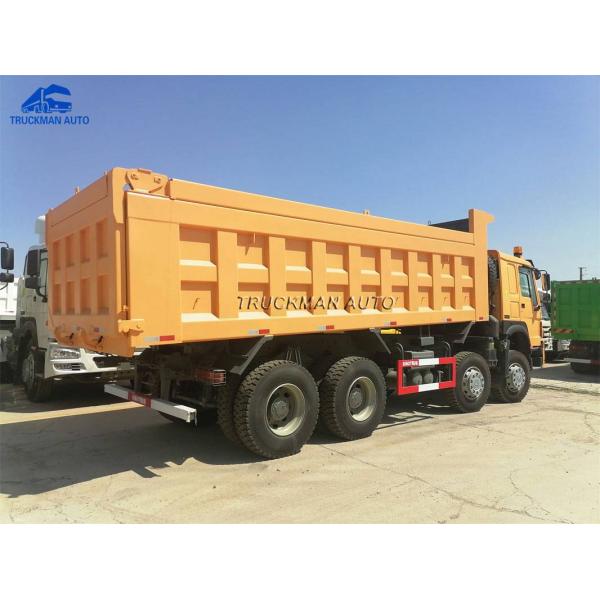

-4. SINOTRUK HOWO 50 Tons Tipper Truck Bucket.

371HP 12 Wheeler SINOTRUK HOWO 50 Tons Tipper Trucks For Ghana

The bucket height can add 10-30mm extra height for loading more cargoes, and also can easy put down when dont use.
