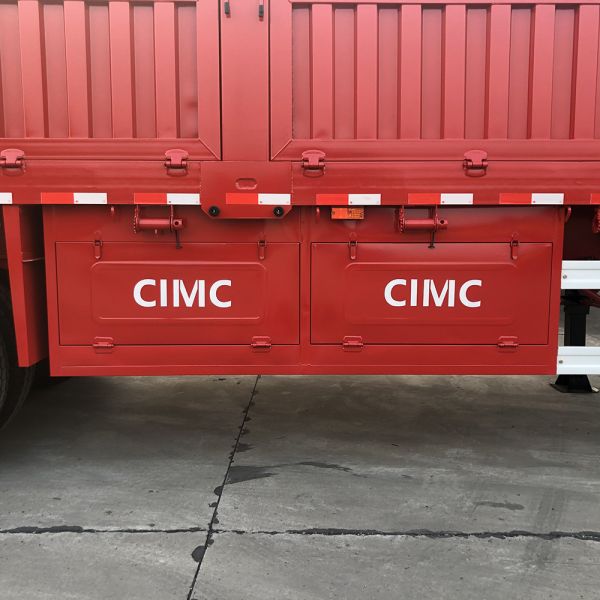

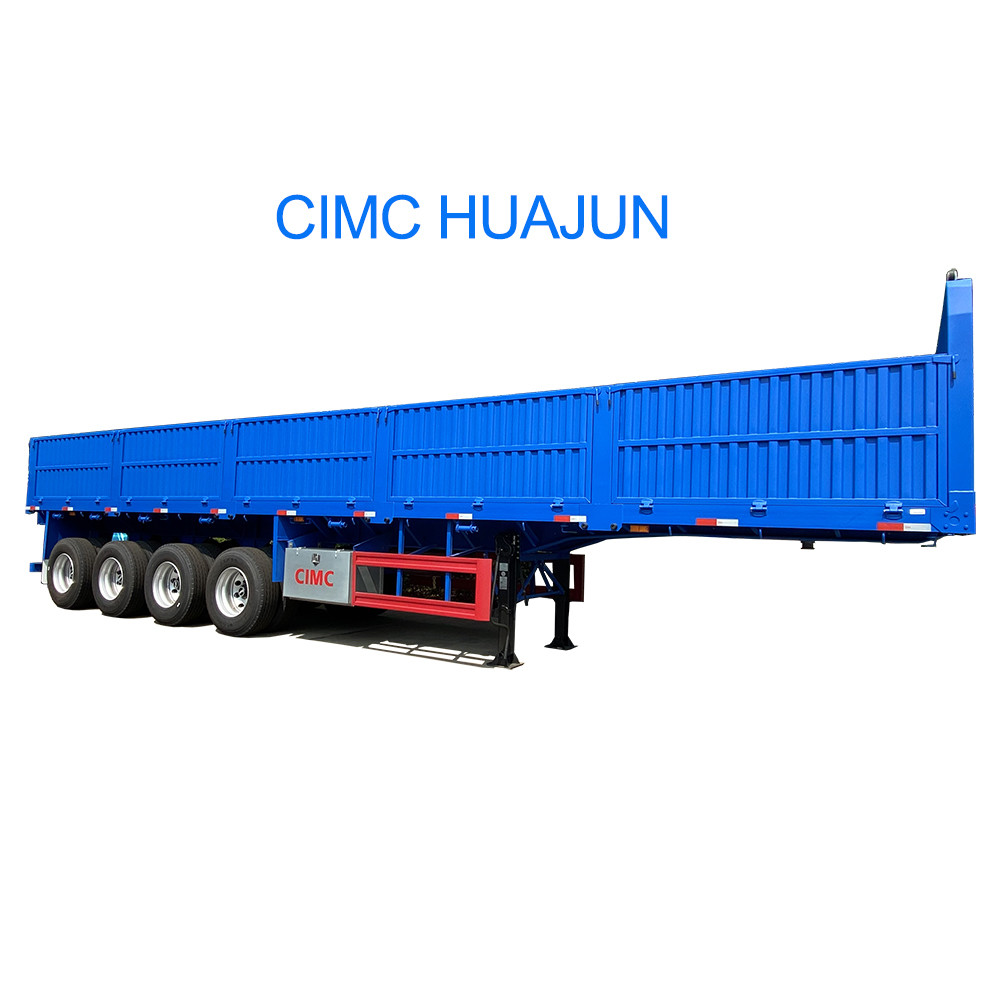

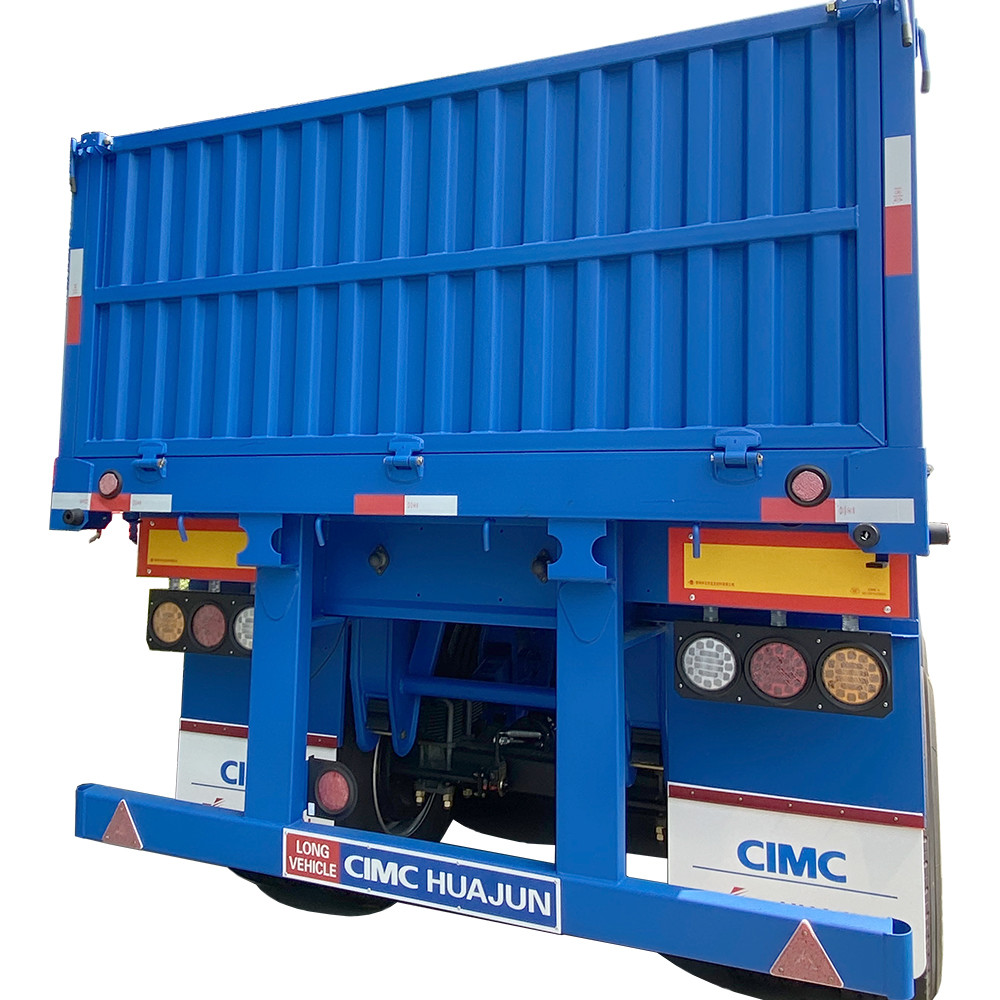

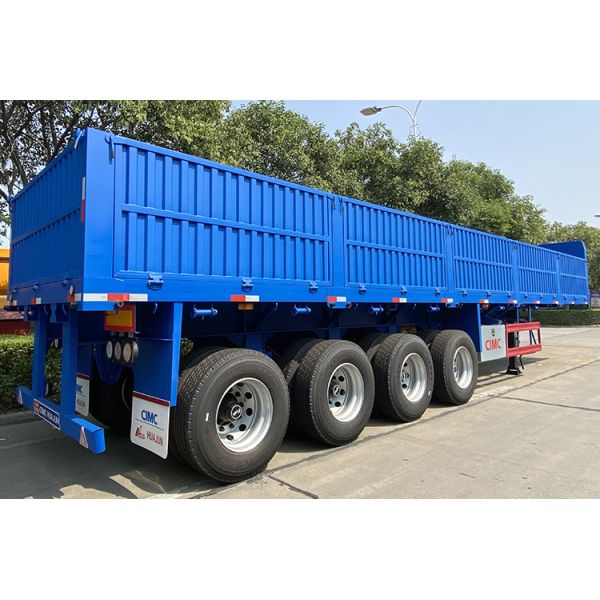

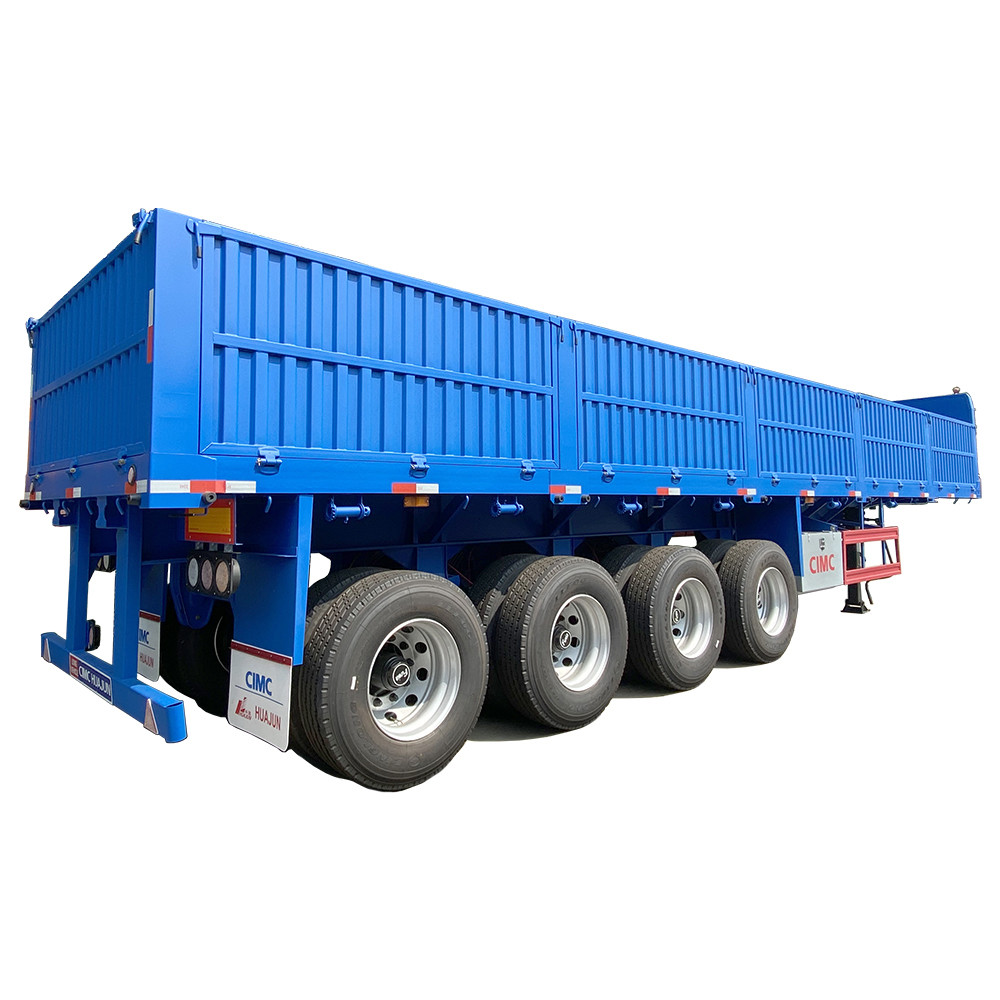

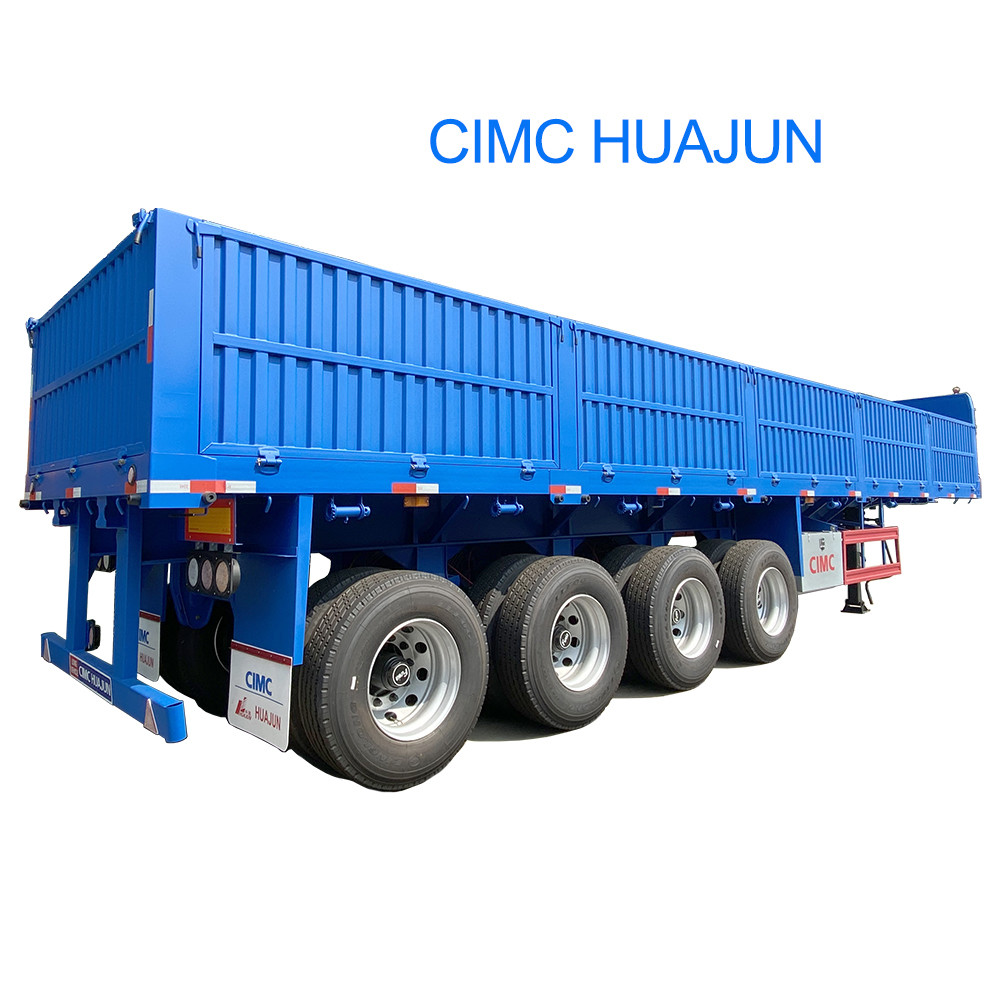

Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Specifications
Use :
Truck Trailer
Type :
Semi-Trailer
Material :
Steel
Size :
13000*2550*3780mm
Max Payload :
60T
Place of Origin :
Henan, China
Brand Name :
CIMC HUAJUN
Product name :
huajun trailer
Function :
Transport heavy cargo
Color :
Customers Optional
Axle :
Fuwa Brand with air suspension
Tire :
12.00R20
Capacity :
60 Tons
Floor board :
2.5 mm flatbed type

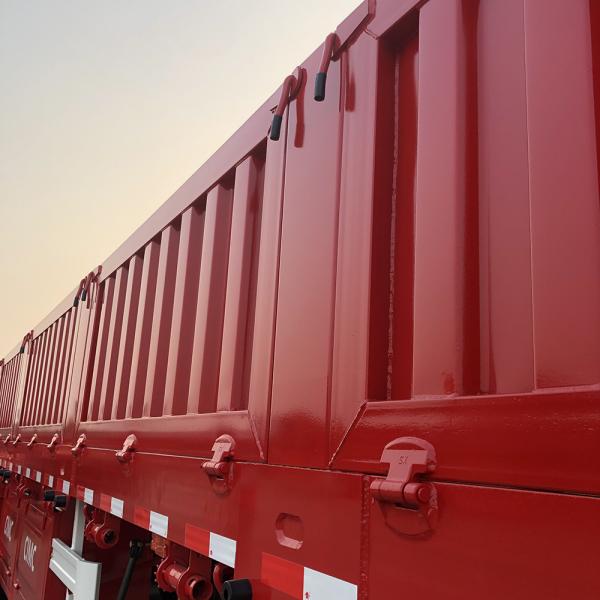

Side door :
11 sets
Main Beam :
T700/Q345 Steel
Suspension System :
Strength Supension
Certification :
CE
OE NO. :
HJGMCK21089
Packaging Details :
CIMC HUAJUN popular hot export 4 axles flatbed semi trailer with 1000mm sidewall
1. Nude packing with waxed the whole trailer;
2. 2 or 3 units were packed as one set;
Port :
SHANGHAI/QINGDAO/TIANJIN
Supply Ability :
2000 Unit/Units per Month transport trailer
Price :
$8,800.00 - $10,800.00/units
Description
Product Description
CIMC HUAJUN popular hot export 4 axles flatbed semi trailer with 1000mm sidewall
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Item
Specification
Size
13000*2550*3850mm.
Body Sheet
Floor thickness: 3mm, checkered plate;
Body material: Q355 steel.

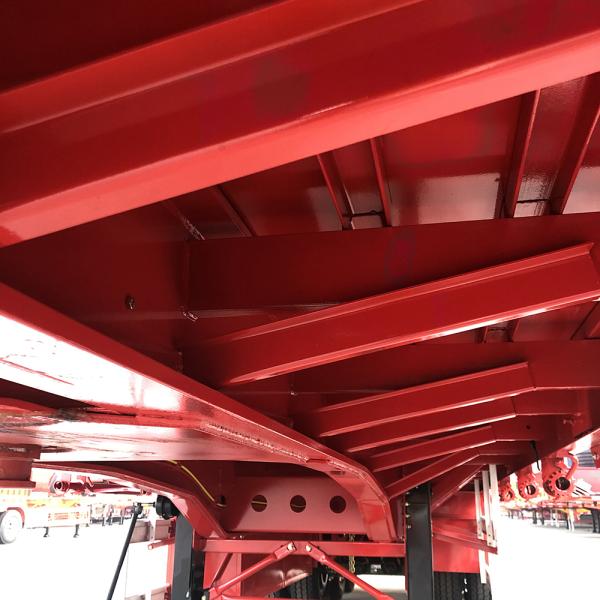

Chassis
Heavy duty and extra durability designed I beam; Opting for high tensile steel, welded by automatic Submerged-Arc processes.

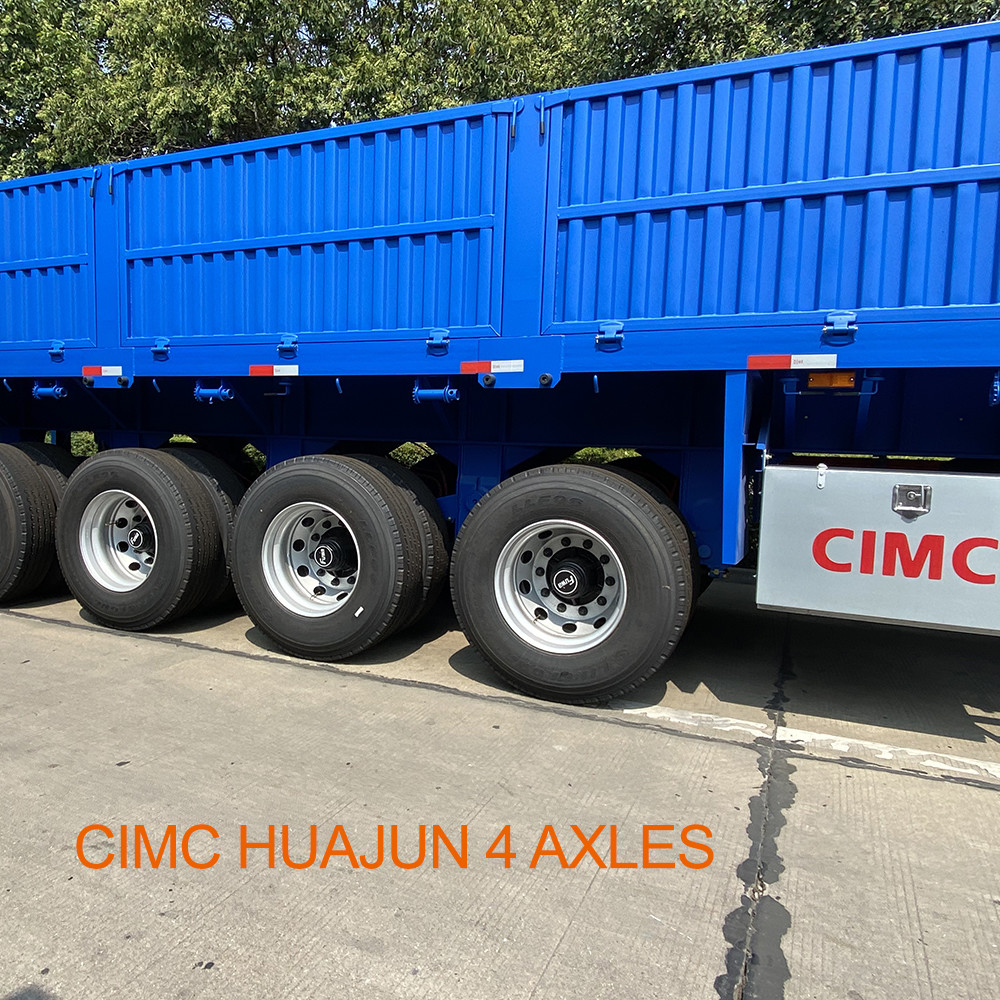

Axle
13T FUWA brand axle
Tire
12R22.5
Rim
9.0-22.5
Suspension
4 axles CIMC HUAJUN reinforced type.
Lead spring
CIMC HUAJUN reinforced type, 12 pieces and 16mm thickness.
Braking system
2 line air braking system with air tank, WABCO emergency relay valve, braking chambers and mechanical slack adjusters.
Electrical system
24V, LED lights. 7 pin electrical connector. Parking, stop, reverse, number plate and indicator lights conform to European standard, rear front and side reflectors.
Shot blasting
Chassis is comletely shotblasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.total 80-100 microns. high quality painting. the whole trailer waxed.

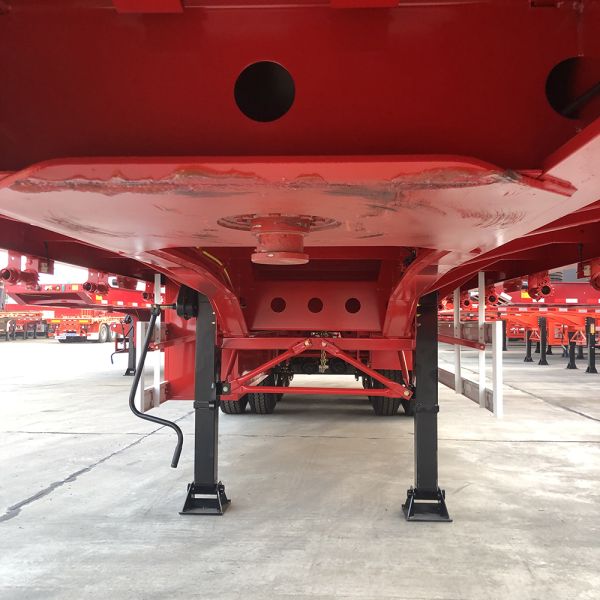

Landing gear
28T, two side operation.
Chamber
Double type
King pin
(2') 50# or (3.5') 90#
Spare tire carrier
CIMC HUAJUN standard
Tool box
CIMC HUAJUN standard
Color
According to customers' requirements and RAL color code.
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Certifications

Our Honor：

--China Well-Known Trademark
--Green Plants
--Intelligent Manufacturing Plant
--New High-tech Enterprise
--China Intellectual Property Advantage Enterprise
...

Our Certifications:

--CE
--CCC
--ISO
--TUV
--SGS
...
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Packing&Shipping
CIMC HUAJUN popular hot export 4 axles flatbed semi trailer with 1000mm sidewall

Waxed Packing by RO-RO or Vessel

1. One unit was shipped separately；
2. Two or units were packed as one set ;

Shipping by Containers

1. One or two units were packed in a container;
2. Shipping by containers via CKD or SKD;
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Our Customers
Our factory was established in 1952, with more than 60 years' experience in trailer manufacturing industry, we make “CIMC HUAJUN” as the leading brand over the world through years' unremitting efforts.
By now, our trailers were shipped to more than 60 countries and area. Such as: The Philippines, Vietnam, Laos, Myanmar, Thailand, Malaysia, Cambodia, Brunei, Singapore, Indonesia, Australia, Mongolia, Algeria, Ethiopia, Djibouti, Kenya, Tanzania, Rwanda, Mauritania, Mali, Guinea, Ghana, Chad, Nigeria, Gabon, Dr Congo, South Africa, Sudan, Mauritius, Uzbekistan, Kazakhstan, Bangladesh, Saudi Arabia, Egypt, Public of Costa Rica, Ukraine, etc.
More than 90% of our customers cooperated with our factory more than 15 years.
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Write to customers:
Appreciated for each customer's trust. We will never forget the mission and continue to provide reliable trailers.
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Our Supplier
Through the cooperation with famous brand suppliers, not only to ensure the quality of products, but also to sure the timeliness and reliability of after-sales service.
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Our service
So far, we have visited more than 60 countries and regions to investigate the market demand and road conditions, and set up offices in many countries to make after-sales service more timely and easily.
In addition, we have built KD plant in Djibouti in 2018, which mainly serves the assembly of trailers for customers in Africa areas and provides technical and operational guidance.
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Oversea Sales Team
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Oversea Engineer Team
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Factory History
ZHUMADIAN CIMC HUAJUN VEHICLE CO., LTD., a joint venture company, located in ZHUMADIAN, HENAN, with convenient transportation, is a wholly-owned subsidiary of CIMC, one of the most important factories in CIMC VEHICLE GROUP. CIMC VEHICLE GROUP, as one of the nine CIMC major business sectors, comes to the world leadership position.
CIMC HUAJUN covers an area of 1.8 million square meters, total assets of USD 1.3 billion, about 2000 employees. Main products are semi-trailer, dump truck, tank trailer, box trailer, refrigerator truck or trailer, special purpose vehicle, etc. annual producing capacity of more than 65,000.00 units.
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
Hot 4 Axles Flatbed Semi Trailer with 1000mm Sidewall Max Payload of 60T 12.00R20 Tire
