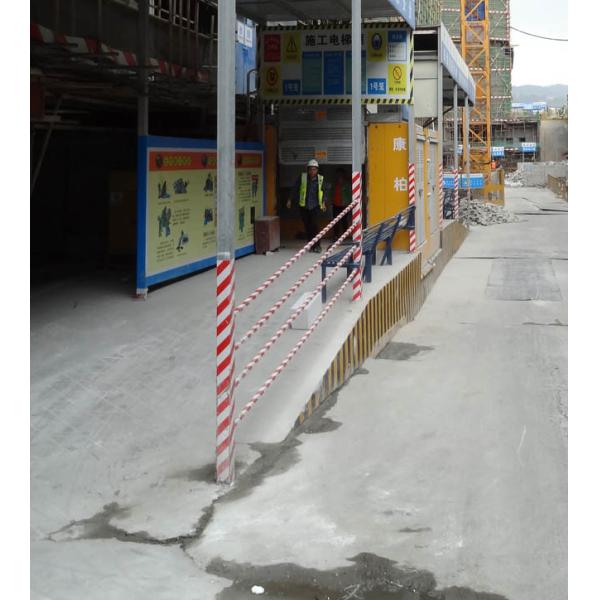

Rack Pinion Passenger And Material Hoist SC200/200 Cage Side With Additional 'C' Door
Rack Pinion Passenger And Material Hoist SC200/200 Cage Side With Additional 'C' Door
Specifications
Brand Name :
KANGBO
Model Number :
Passenger and material hoist rack pinion SC200BG MP-B09 SC200/200BG MP-B10
Certification :
TUV, CCC
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
150 sets per month
Delivery Time :
25-30 days per month
Packaging Details :
Export package
Description :
SC200/200 addition 'C' Door Cage Passenger and material hoist
Application :
Construction sites, plants, warehouses
Design :
According to European Regulation
Material :
Q355B steel
Drive unit :
Variable Frequency Drive (VFD)
Processing :
Processed by CNC machines
Finish :
Sand blasting and paint, Galvanised
Color :
Yellow
Description

Passenger and material hoist rack pinion SC200BG MP-B09 SC200/200BG MP-B10

Configuration


There is a electrical small crane available to facilitate the assembly of the construction elevator.
There is the additional 'C' door at cage side for convenient loading/unloading.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
There is LED lighting inside construction elevator car.

Technical Data

Item & Article No. SC200BG, MP-B09; SC200/200BG, MP-B10
Payload Capacity 2,000 KG per Cage
Lifting Speed 0–60 m/min.
Max. Lifting Height 450 m
Cage Size (internal) 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage
Cage Doors 3 Doors, Entry Door + Exit Door + Side Door
Motor Control FC (Frequency Control)
Engine Power 2x23 KW per Cage
Gearbox Helical Gearbox
Safety Device Type Centrifugal Brake
Power Supply Range 380–500 V, 50 or 60 Hz, 3 Phase
Type of Mast Square Column 650*650 mm with Bolted Rack
Length Mast Section 1.508 m
Rack Module 8
