450M Rack Pinion Construction Material Hoist Lift
450M Rack Pinion Construction Material Hoist Lift
Specifications
Brand Name :
KANGBO
Model Number :
Construction material hoist SC320(BZ) SC320-320(BZ) KP-B17 B18
Certification :
TUV
Place of Origin :
CHINA
MOQ :
1 set
Price :
in USD
Payment Terms :
T/T, L/C
Supply Ability :
150 sets per month
Delivery Time :
25-30 days
Packaging Details :
export package
name :
Rack And Pinion Hoist
Max Lifting Height :
450M
Design :
Modular design
Material :
Q345B Steel
Production :
Processed by CNC machines, Laser, Robots in assembly line.
Finishing :
Sandblasting and Painted, Galvanised
Description

Max Lifting Height 450M Rack And Pinion Hoist

Product Description

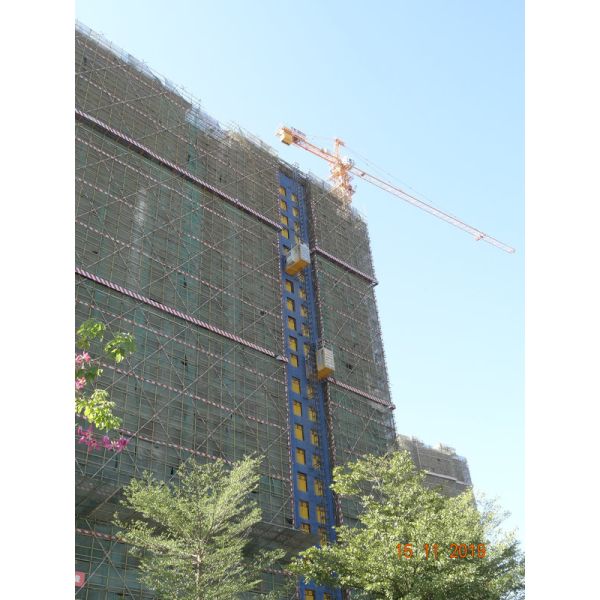

The construction elevators are widely used at the sites of industrial and civil construction, bridge construction, underground construction, large chimney construction, ship industry and so on. Being suitable for the vertical transport of materials and people, they can also be used as permanent / semi-permanent electric elevators and in various sites like warehouses and high towers.

This series of construction elevators, which are known for their stable performance, reliable safety, easy transportation and strong adaptability, can enhance work efficiency and reduce workers labor intensity.

Production and Materials


KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q345 high strength steel.
The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.

Technical Data

Item & Article No. SC320(BZ) KP-B17, SC320/320(BZ) KP-B18
Payload capacity 3,200 kg per cage
Lifting speed 0–46 m/min.
Max. lifting height 450 m
Cage width (internal) 1.5 m
Cage length (internal) 3.2 m
Cage height (internal) 2.35 m
Drive Mode VFD
Engine power 3x15 kw per cage
Gearbox Helical reducer
Safety device type centrifugal brake
Power supply range 380–500 V, 50 or 60 Hz, 3 phase
Type of mast square column 650*650 mm with bolted rack
Length mast section 1.508 m
Rack module 8
