Rack And Pinion Construction Lift Passenger And Material Hoist M20 Roller
Rack And Pinion Construction Lift Passenger And Material Hoist M20 Roller
Rack And Pinion Construction Lift Passenger And Material Hoist M20 Roller
Rack And Pinion Construction Lift Passenger And Material Hoist M20 Roller
Rack And Pinion Construction Lift Passenger And Material Hoist M20 Roller
Rack And Pinion Construction Lift Passenger And Material Hoist M20 Roller
Specifications
Brand Name :
Comwinning
Model Number :
SC200, SC200, SC300
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiate in USD
Payment Terms :
T/T
Supply Ability :
5000 per month
Delivery Time :
5-8 days
Packaging Details :
Carton
Application :
Hoisting Machine SC200 SC300
Color :
Silver or Black
Corrosion Resistance :
High
Durability :
High
Hardness :
High
Load Capacity :
High
Material :
Steel
Size :
Standard
Surface Treatment :
Blackening or galvanizing
Description

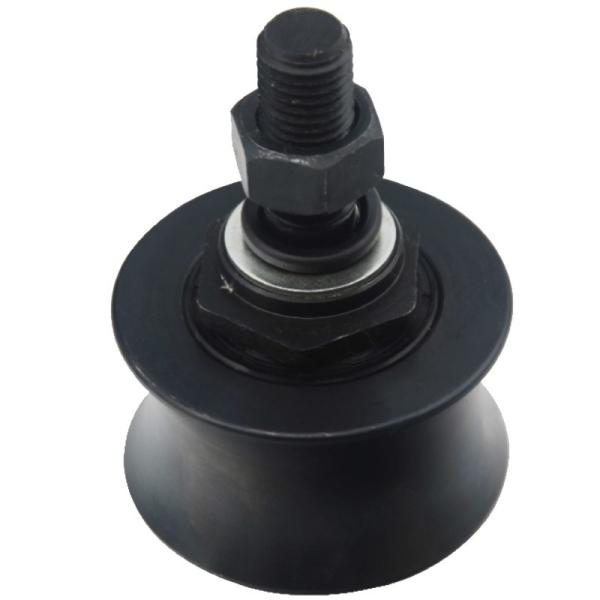

Rack And Pinion Construction Lift Passenger And Material Hoist M20 Roller

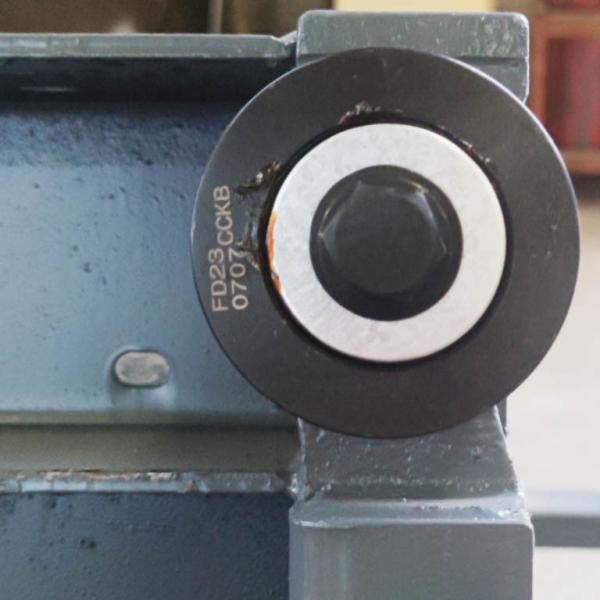

The roller is used on 650*650*1508mm mast section of rack and pinion lifts. The eccentric roller for can be adjusted to the right position, then the construction hoist can move up and down smoothly.

Features
Apply cover plate design to improve safety
Finish: Blackening or galvanizing

Technical Data

Dimensions (mm)
Big diameter (D) φ88 Step height (h) 5
Small diameter (d) φ74 Bearing width (Assembly height) (L) 30.5-34.5 (4) (shifting)
Roller thickness(H) 49 Eccentricity (P) 3.5
Arc ( R ) R39 Internal thread (M) M20
Step outer diameter φ40 Thread length (T) 56
