Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Specifications
Place of Origin :
Henan, China
Brand Name :
Be Focus
Application :
hotel, school, villa, restaurant
Features :
,easy operation
Condition :
Used
Production Capacity :
2 modular house per day
Warranty :
1 Year
Dimension(L*W*H) :
3250*1750*1680mm
Power :
45kw
Voltage :
220v, 220v
Applicable Industries :
Hotels, Building Material Shops, Construction works
Weight (KG) :
1900
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Not Available
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Engine, Motor, Pressure vessel, Pump
UNIQUE SELLING POINT :
Low Maintenance Cost
Product name :
Hydraulic wet spraying machine
Suitable for :
Building Project
Usage :
Wall Plaster Smoothing
Advantage :
Powerful
Size :
3250*1750*1680mm
Motor power :
45kw
Unit weight :
1900kg
Price :
$9,742.60/sets >=1 sets
MOQ :
1 set
Description
Pruduct Show
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation

Hydraulic wet spraying machine

The hydraulic wet shotcreting machine is used to mix cement, water and aggregate evenly according to the design proportion, press them to the nozzle with the wet shotcreting machine, add accelerator on the nozzle, and spray them after converging with the wind.

Product parameters
Overall performance
Maximum theoretical concrete delivery
m³/h
3-8

Concrete delivery pressure
MPa
13

Distribution valve type

S阀

Concrete cylinder specification * stroke
mm
140×580

Hopper volume * loading height
L×Bmm
300×1200

Outlet diameter
mm
80
dynamic system
Prime mover model

电机

Rated power
kw
45

Rated voltage
V
220

Rated speed
r/min
1450
Hydraulic system
Oil pump power

80 Manually adjusted plunger pump

Hydraulic system type

K series open intelligent hydraulic system (pressure control reversing)

Cooling mode

Air-cooled radiator
Other parameters
Maximum allowable orthopedic particle size
mm
碎石：10-25

Inner diameter of concrete delivery pipe
mm
57

Overall dimension: length * width * height
mm
3250×1750×1680

Total mass
kg
1900

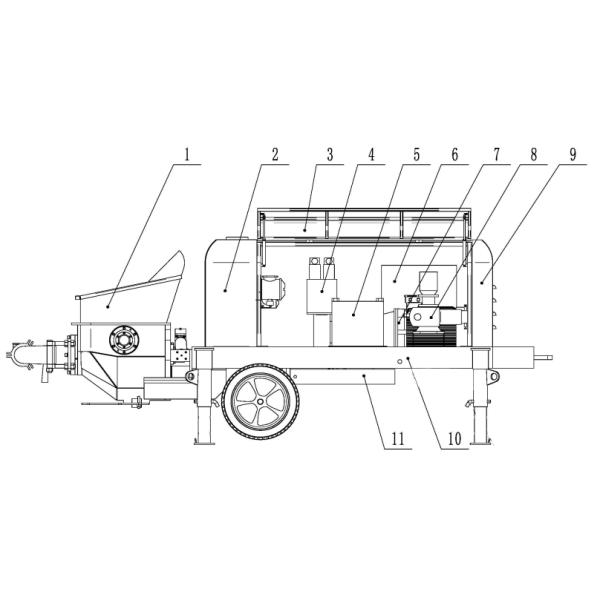

Product mix
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
1. Hopper assembly 2. Hydraulic oil tank 3. Intermediate hood 4. Hydraulic valve group 5. Air cooler 6. Electric cabinet 7. Hydraulic pump station 8. Metering pump 9. Rear hood 10. FRAME GP 11. Pushing mechanism assembly

Model division
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation

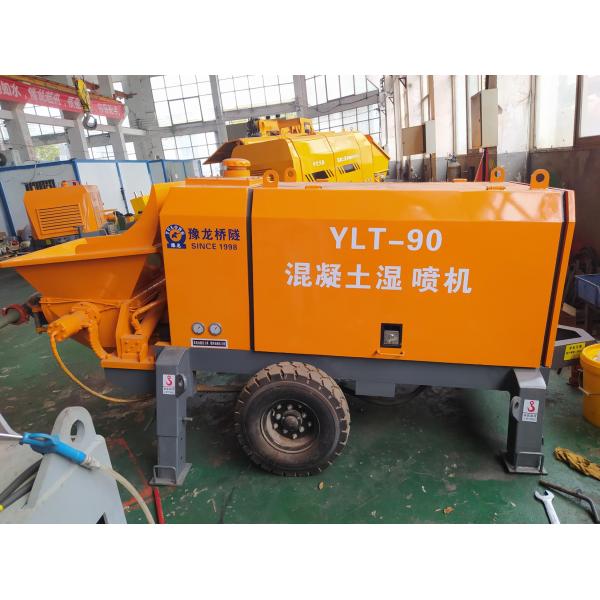

1.TLT-90 Concrete wet shotcreting machine
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation

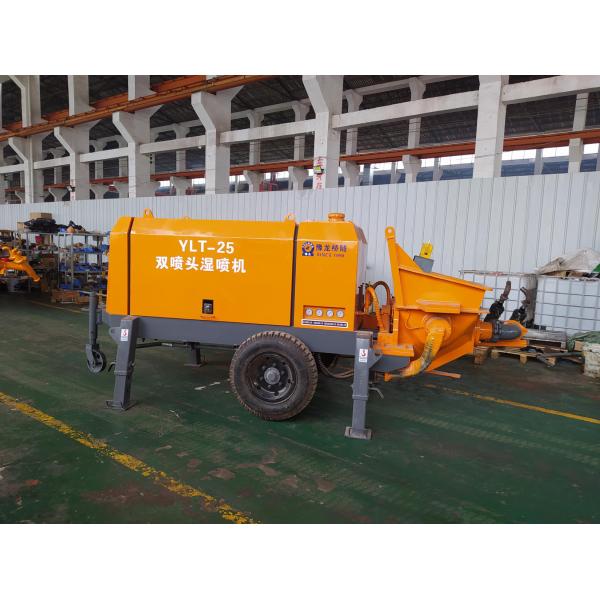

2.YLT-25Double nozzle wet spraying machine
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation

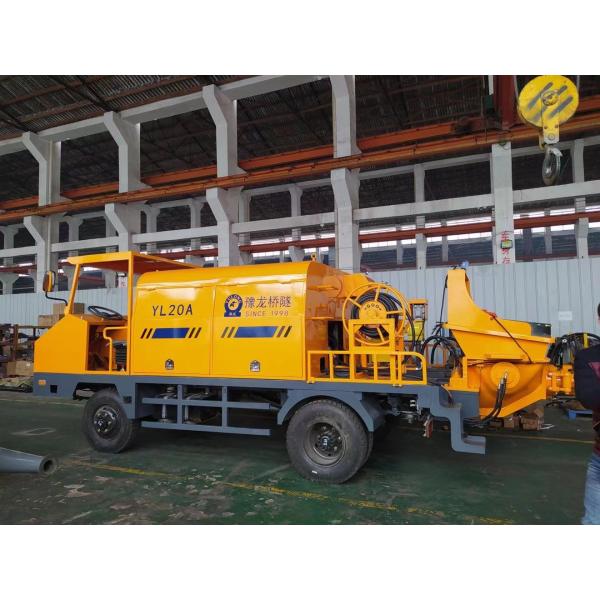

3.Engineering chassis double-nozzle YL20A wet spraying machine
Our Advantages
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Advantages

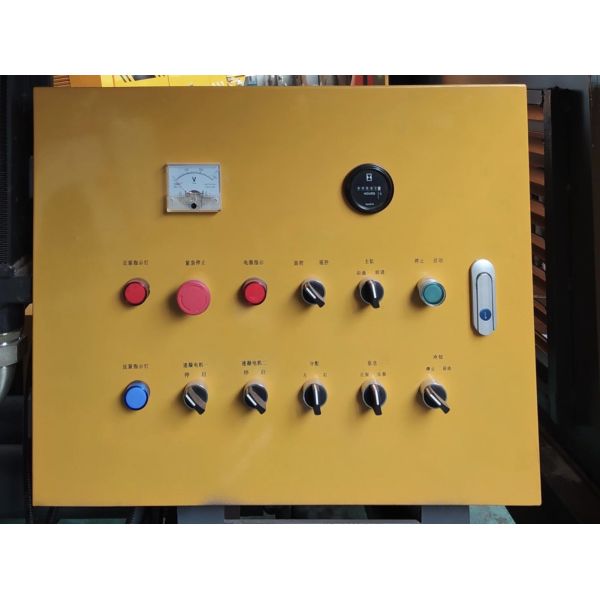

1.The system reliability is greatly improved by adopting PLC electrical control hydraulic pumping design. PLC control core can operate reliably and fault-free in harsh environment for a long time, and it is easy to connect, maintain, isolate and resist corrosion

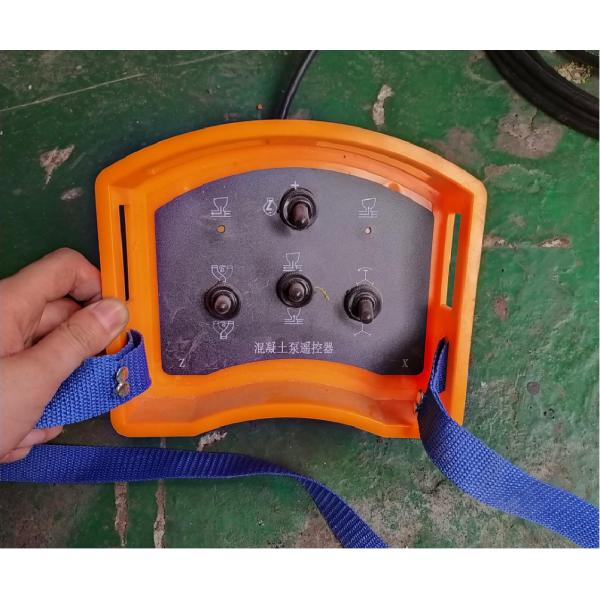

2.The product adopts humanized design: controlled by wire handle,
Simple and convenient operation. Remotely operate the switch of control equipment to save labor
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
3.The material cylinder with large diameter and long stroke can reduce the number of relative commutations, wear of vulnerable parts and maintenance costs. With less commutation times and fast commutation speed of swing cylinder, the pulsation phenomenon of commutation moment is relieved and the performance is stable.

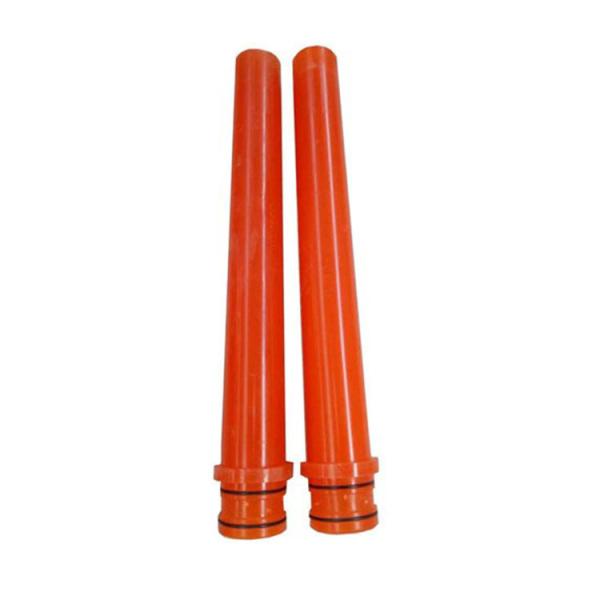

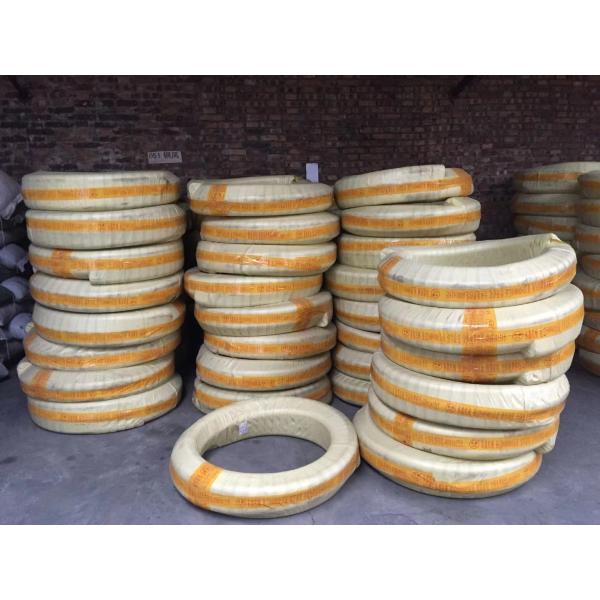

Equipment wearing parts
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation

Attention

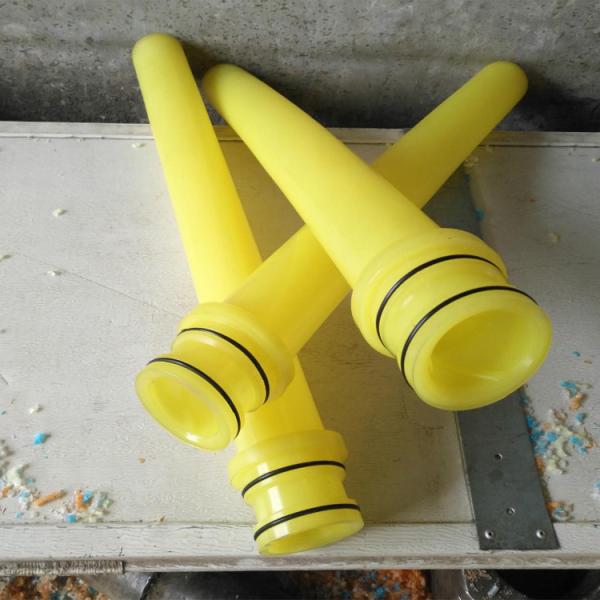

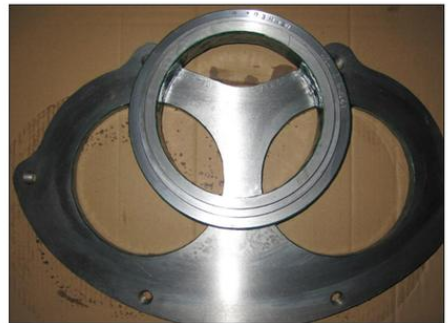

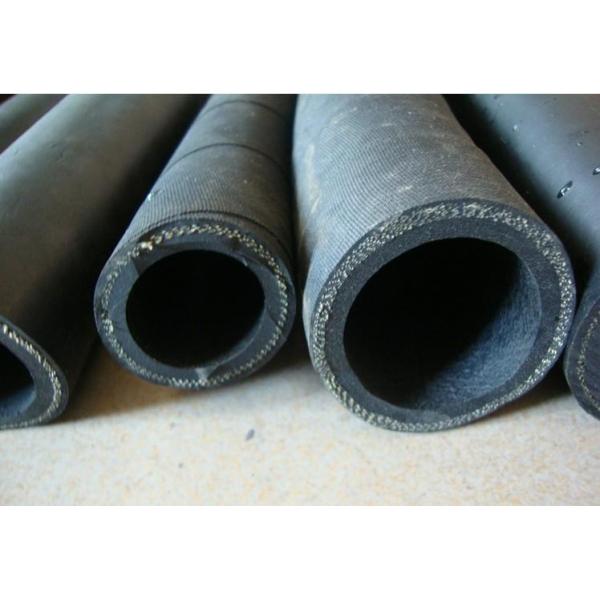

As shown in the figure above, the nozzle, spray tube, eyeglass plate, cutting ring and other parts are vulnerable parts. The factory accessories of the equipment and Type 7 dry spray can be used in general, and the air duct will be equipped, but the vehicle-mounted double spray nozzle does not have any spray tube and spray nozzle

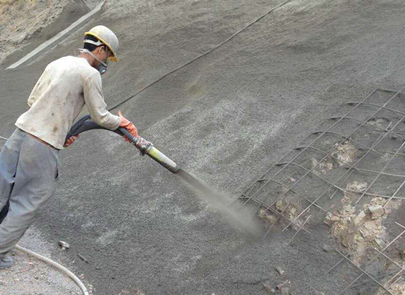

Application area
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation

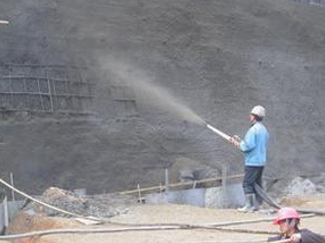

The shotcrete machine is widely used in the shotcrete construction of engineering buildings, mines, tunnels, culverts, subways, hydropower projects, underground projects and coal and high marsh mine roadways: various types of industrial furnaces, refractory materials of furnace lining are sprayed and shaped or repaired; various types of slope protection greening construction, soil transportation and spraying.
Why Choose Us
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Henan Be Focus Mechanical Equipment Co.,Ltd.is a professional production and processing company for steel machinery,concrete mixers,road machinery,batching machines,etc.It has a complete and scientific quality management system.Henan Be Focus Mechanical Equipment Co.,Ltd was established in the nineties of twenty century and is one of the earliest professional manufacturers in the field of construction machinery.In the spirit of professionalism and excellence,we have gradually developed into a large factory with a history of 30 years. The equipment we provid includes steel bar bending machine,steel bar cutting machine steel bar straightening machine concrete laser screed,concrete cutting machinepower plastering machinerollerconcrete screedconcrete mixer and so on.Has more than 100 engineering and technical experience. Construction machinery we can meet your different orders.In addition,our professional R &:D team will provide you with the most convenient service,Since your order, we can provide the best products and service for you.
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation

Company culture
All employees of the company adhere to the principle that credibility is life, quality is survival, and customers are parents The
principle is to gain trust by quality, extract value by brand, create differences by creating, and serve To win the competition is your reliable and long-term partner.

Production Capacity
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation

The company cooperates with all major engineering projects

R&D capability
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation

Packing
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation
Putty Spray Machine Cement Mortar Spraying Gun Motor Power 45kw for School Renovation


FAQ


Q1.What are your terms of payment?
A: T/T 30% is the deposit, and 70% before delivery. Before you pay the balance, we will show you the photos of the products and packaging.

Q2. What are your delivery terms?
Answer: EXW, FOB, CFR, CIF.

Q3. How about your delivery time?
A: Generally, it takes 7-10 working days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.

Q4. What is the warranty of our machine? Answer: Our host enjoys a one-year warranty(except hammer), during which all Damaged parts can be replaced with new ones. We provide machine installation and operation video.

Q5. What are your packing conditions?
Answer: LCL goods generally use standard export wooden cases, and the full case goods are fixed.

Q6. Do you test all goods before delivery?
Ans.: Yes, we conducted 100% tests before delivery. We will attach the inspection report of each machine.

Q7. Do you give priority to providing vulnerable parts to trading customers?
Ans.: Yes, we have the records of your customers and are more willing to provide them with accessories.

Q8: How do you maintain a long-term good relationship with our business?
Ans.: 1. We maintain good quality and competitive prices to ensure the interests of our customers;
2. We respect every customer and treat them as friends, no matter where they come from We all sincerely do business and make friends.

Q9. Do you have a certificate for your machine?
Ans.: All our products have CE and ISO9001 certificates.
