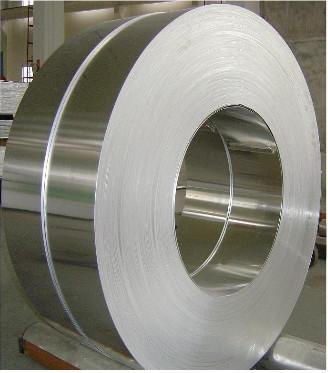

Customized Length Ni Cu Alloy Strip Good Weldability For Electrical Components
Customized Length Ni Cu Alloy Strip Good Weldability For Electrical Components
Specifications
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
Negotiated
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
depending
Delivery Time :
depending
Packaging Details :
sea or air worthy packing
Chemical composition :
Ni,Mn.Cu
the maxi.temp. for the parts and components made by this material :
200-400℃
fusion point :
1085-1280℃
Material Density :
8.9g/cm3
Electrical resistivity :
0.03-0.49µΩ·m,20℃
Elongation% :
≥25
length :
Customized
width :
0.1-200mm
thickness :
0.01-5mm
Application :
electrical components and parts
Description

Customized Length Ni Cu Alloy Strip Good Weldability For Electrical Components

Ni-Cu Alloy has the good weldability and processability, widely applied for relay,breaker, etc electrical components and parts.

the major technical performance.

Designations
Ni1Cu Ni2Cu Ni6Cu Ni8Cu Ni10Cu Mn3Cu Ni14Cu Ni19Cu Ni23Cu Ni30Cu Ni34Cu Ni44Cu
NC003 NC005 NC010 NC012 NC015 Mc012 NC020 NC025 NC030 NC035 NC040 NC050
Ni 1 2 6 8 10 -- 14.2 19 23 30 34 14
Mn -- -- -- -- -- 3 0.3 0.5 0.5 1 1 1
Cu Remains Remains Remains Remains Remains Remains Remains Remains Remains Remains Remains Remains
Max.temp for use °C -- 200 220 250 200 250 300 300 300 350 350 400
fusion point°C 1085 1090 1095 1097 1100 1050 1115 1135 1150 1170 1180 1280
Dencity g/cm³ 8.9 8.9 8.9 8.9 8.9 8.9 8.9 8.9 8.9 8.9 8.9 8.9
Resistivity Ωmm²/m 0.03±10% 0.05±10% 0.10±10% 0.12±10% 0.15±10% 0.12±10% 0.20±5% 0.25±5% 0.30±5% 0.35±5% 0.40±5% 0.49±5%
Resistance temp.coefficient 10-5°C/(200-600°C) <100 <120 <60 <57 <50 <38 <38 <25 <16 <10 <0 <-6
Tensile Strength(Mpa) ≥210 ≥220 ≥250 ≥270 ≥290 ≥290 ≥310 ≥340 ≥350 ≥400 ≥400 ≥420
Elongation % ≥25 ≥25 ≥25 ≥25 ≥25 ≥25 ≥25 ≥25 ≥25 ≥25 ≥25 ≥25
electrodynamic force to Cu V/°C(0-100°C) -8 -12 -18 -22 --- -25 -28 -32 -34 -37 -39 -43
metallographic structure austenite austenite austenite austenite austenite austenite austenite austenite austenite austenite austenite austenite
magnetism Non. Non. Non. Non. Non. Non. Non. Non. Non. Non. Non. Non.

status of supply: wire,strip,rod and final products.

wire: 0.01-6mm

Rod: 6-20mm

Strip: thickness 0.01-5mm width: 0.1-200mm
