Stainless Steel Membrane Housing
Stainless Steel Membrane Housing
Stainless Steel Membrane Housing
Stainless Steel Membrane Housing
Stainless Steel Membrane Housing
Stainless Steel Membrane Housing
Specifications
Certification :
SGS
Place of Origin :
China
MOQ :
Negotiatable
Price :
Negotiatable
Delivery Time :
5-20 working days after order confirmed by the factory
OEM/ODM :
Accept
Configuration :
End port or side port/end entry or side entry
Material :
304/316L stainless steel
Color :
Polished or Mirror Polish
Description

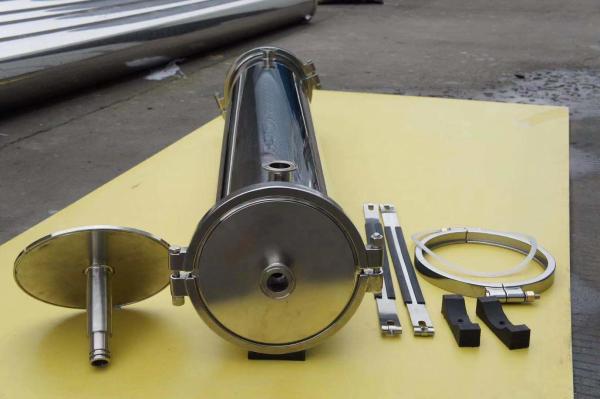

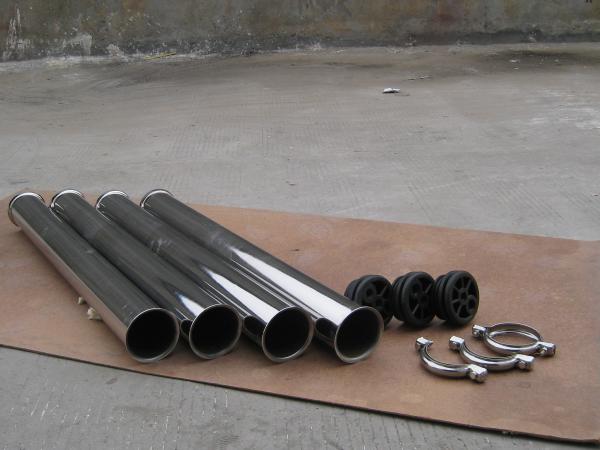

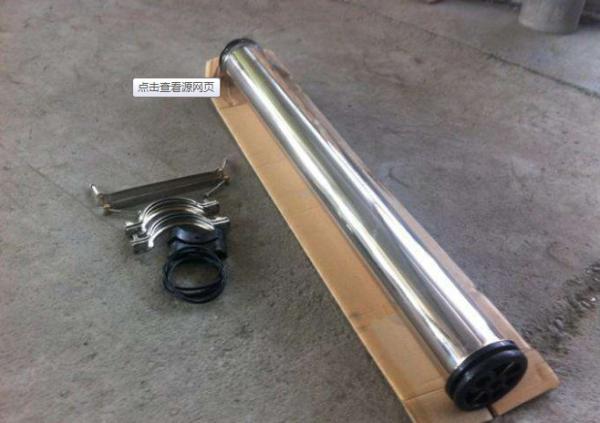

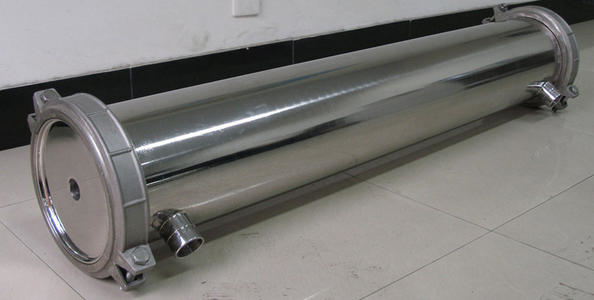

SS membrane housing is the basic component of reverse osmosis equipment and RO system. The material is 304 or 316L stainless steel seamless tubes. Sealing form of end cover includes: clamp, flange, built-in; Water inlet mode covers end port and side port. The length is matched with the number of reverse osmosis membrane components. Inside and outside of the tube is polished.

SS Membrane Housing Specification:

Specifications End port
Available pressure rating (psi) 400
Length (No. of elements) For 1-4 pcs of Membrane Element
Housing Material 304 Stainless Steel or 316L Stainless Steel
Cap Material SS304 or SS316L
Closure Victaulic,Tri-clover, Clamp
Design Pressure 400PSI
Finishing Polished or Mirror Polish
Operating Temp 0-95℃

SS Membrane Housing Dimensions:

Model L (mm) L1 (mm) D (mm) A B
8040-1 1252 1082 203 1 1/2'' 1''
8040-2 2268 2098 203 1 1/2'' 1''
8040-3 3284 3114 203 1 1/2'' 1''
8040-4 4300 4130 203 1 1/2'' 1''
8040-5 5316 5146 203 1 1/2'' 1''
8040-6 6332 6162 203 1 1/2'' 1''

Stainless Steel Membrane Housing
