RHG9 Turbocharger 114400-4011 VA600018 For Isuzu 6WF1T Engine
RHG9 Turbocharger 114400-4011 VA600018 For Isuzu 6WF1T Engine
Specifications
Model Number :
114400-4011
Price :
$530 - $650
Packaging Details :
Carton box
Supply Ability :
999
Part number :
114400-4011
Performance :
OEM Standard Injection Pressure & Flow Rate
Material :
High Strength Alloy Steel
Place of Origin :
China
Delivery Time :
3-7 work days
Construction Engine :
Diesel Engine
MOQ :
1
Brand Name :
Isuzu
Product Name :
Turbocharger
Payment Terms :
T/T,D/P,D/A,L/C,Western Union
Type :
Mechanical / Electronic Diesel Injector
Description

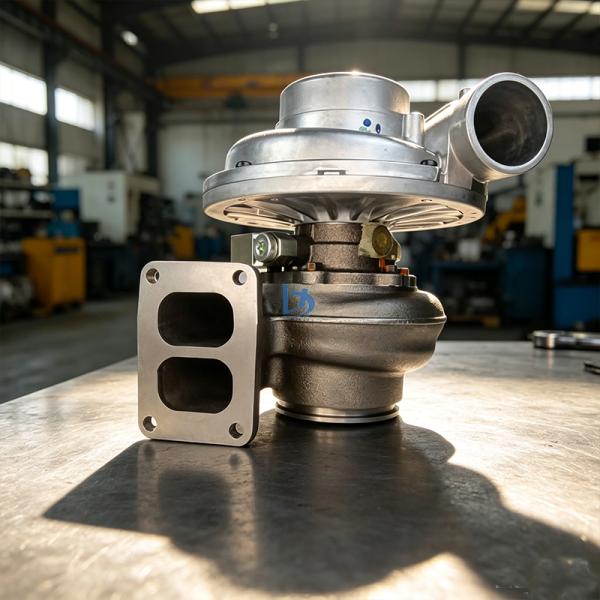

RHG9 Turbocharger 114400-4011 VA600018 For Isuzu 6WF1T Engine
RHG9 turbocharger part number 114400-4011 VA600018 is designed for Isuzu 6WF1T engines. This heavy-duty turbocharger serves as a reliable replacement for Isuzu Giga CXY diesel superchargers and industrial engine applications.
Key Features
  • Fixed geometry non-wastegate RHG9 structure simplifies internal mechanical parts, reducing daily failure risk for long-distance truck transport
  • AR35 large flow turbine housing supplies sufficient intake air under full load, effectively improving climbing torque and reducing exhaust black smoke
  • Strict high-speed dynamic balance testing for wheel assembly eliminates abnormal vibration and prevents oil leakage during continuous operation
  • Thickened cast iron turbine shell resists high exhaust temperature deformation, adapting to high-load uphill and dusty construction conditions
  • Standard original flange thread and pipeline interfaces enable direct bolt-on replacement without pipeline modification, saving maintenance time
Product Specifications
ItemParameter Details
Main OE Part No114400-4011 VA600018
Cross Reference Part No114400-3651 114400-3653 114400-4022 VB300019 VC600013 1-14400401-1
Turbo Core ModelRHG9 RHG9-12506Q35NHBRL671CUBT
Matching EngineIsuzu 6WF1T 6WF1TC-C(1B8) 6WF1TC Euro2 6WF1 Industrial Diesel Engine
Lubrication MethodPressure Feed Engine Oil Lubrication Oil Cooled Structure
Turbine Housing MaterialHeat Resistant Ductile Cast Iron Anti Thermal Deformation
Compressor Wheel MaterialPrecision Cast High Strength Aluminum Alloy
Turbine Housing AR ValueAR35 Matching Heavy Load Working Condition
Net Weight13.8KG Single Complete Turbo Unit
Pack Dimension340×265×280MM With Standard Installation Gaskets
Available GradeGenuine OEM New Factory Aftermarket New Rebuilt Dynamic Balanced Tested Unit
FOB Unit Price$160~$780 Differ based on product quality grade
Compatible Applications
Applicable Machine ModelCompatible Engine ModelAlternative Replacement Part No
Isuzu Giga CXY Heavy Cargo Truck6WF1T Standard Euro2 Version114400-4011 VA600018
Isuzu Long Haul Transportation Trooper Truck6WF1TC-C(1B8) Heavy Duty Spec114400-4022 VB300019
Stationary Industrial Diesel Power Unit6WF1 General Industrial Engine114400-3651 VC600013
Large Mobile Air Compressor Equipment6WF1TC Euro2 Full Load Tuning114400-3653 1-14400401-1
Isuzu Construction Site Dump Truck6WF1T High Torque Upgrade EngineVA600018 114400-4022
Off Road Heavy Industrial Generator Set6WF1TC Continuous Operation EditionVB300019 114400-3651
RHG9 Turbocharger 114400-4011 VA600018 For Isuzu 6WF1T Engine RHG9 Turbocharger 114400-4011 VA600018 For Isuzu 6WF1T Engine RHG9 Turbocharger 114400-4011 VA600018 For Isuzu 6WF1T Engine RHG9 Turbocharger 114400-4011 VA600018 For Isuzu 6WF1T Engine RHG9 Turbocharger 114400-4011 VA600018 For Isuzu 6WF1T Engine RHG9 Turbocharger 114400-4011 VA600018 For Isuzu 6WF1T Engine
Frequently Asked Questions
Q: Can 114400-4011 interchange with 114400-3651 turbo directly?
A: External installation dimensions and internal flow matching are consistent, making them fully interchangeable. Confirm your engine emission standard before purchase.
Q: Does this turbo include installation gaskets when delivered?
A: Each complete turbo set comes with intake gasket and oil pipe gasket as matching accessories, ready for installation.
Q: What common faults require replacement of this RHG9 turbocharger?
A: Abnormal loud noise, serious engine oil consumption, compressor wheel damage, or turbine shell crack all require full turbo assembly replacement.
