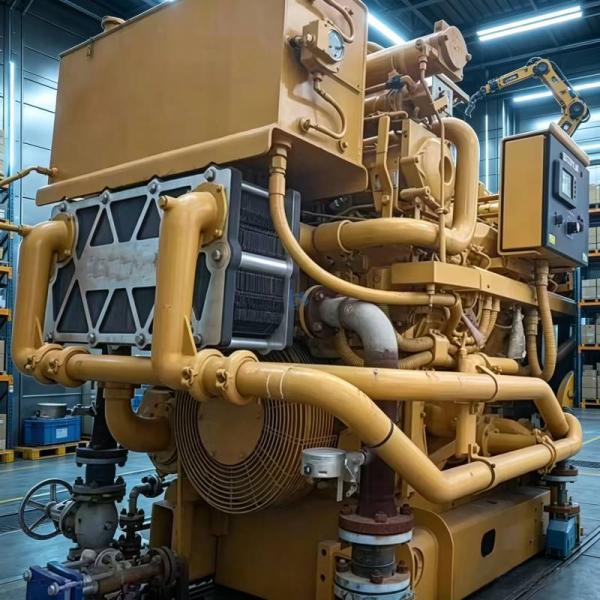

3156 Diesel Engine Generator Set Marine / Industrial Cat Diesel Generator
3156 Diesel Engine Generator Set Marine / Industrial Cat Diesel Generator
Specifications
Brand Name :
CAT
Model Number :
3156
Place of Origin :
China
MOQ :
1
Price :
$7545 - $9160
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
9
Delivery Time :
3-7 work days
Packaging Details :
Wooden Box
Product Name :
Diesel Engine Generator Set
Engine Model :
3156
Configuration :
V16, 4-stroke, direct injection
Aspiration :
Twin turbocharged & aftercooled
Prime Power Rating :
1000–1600 kW / 1250–2000 kVA
Voltage :
380V/400V/440V 3-phase (marine standard)
Cooling System :
Marine-grade liquid cooling with heat exchanger
Voltage Regulation :
±1% (AVR controlled)
Alternator Type :
Brushless, self-exciting synchronous (marine grade)
Efficiency :
≥94.5% at full load
Payment :
TT.Money Gram.Western Union. Paypal
Description

3156 Marine & Industrial Diesel Generating Set for CAT Excavator

The CAT 3156 heavy-duty diesel generator set is a professional-grade power solution engineered for both marine auxiliary and industrial applications. Delivering robust continuous power output, this complete assembly is built to withstand the harsh conditions of marine environments and demanding industrial operations. Designed as a direct replacement for original CAT 3156 generator systems, it provides reliable uninterrupted power for vessel operations, port facilities, and remote industrial sites. Every unit undergoes comprehensive load testing and marine-grade inspection before shipment to ensure immediate, trouble-free operation upon installation.

Core Selling Points

✅ Marine-Grade Corrosion Resistance
Constructed with marine-grade materials and protective coatings, this generator resists saltwater corrosion, humidity, and vibration. It meets international marine safety standards, making it ideal for installation on cargo ships, workboats, and offshore platforms.
✅ Dual-Purpose Versatility
Optimized for both marine auxiliary power and land-based industrial use. It delivers consistent performance as a ship's main auxiliary generator, emergency backup power, or prime power source for port and industrial facilities.
✅ Complete Ready-to-Install Assembly
Comes fully integrated with the engine, brushless alternator, marine-grade cooling system, control panel, and all necessary piping and wiring. No additional component sourcing is required, reducing installation time and commissioning costs.
✅ Advanced Marine Monitoring System
Equipped with a CAT marine-certified digital controller that provides real-time engine and generator performance monitoring, comprehensive fault diagnostics, and automatic protection against critical operating conditions.
Category Parameter Specification
General Information Generator Model CAT 3156 Marine/Industrial Diesel Generator Set
Prime Power Range 1000–1600 kW / 1250–2000 kVA
Standby Power 1100–1760 kW
Frequency 50Hz @ 1500 RPM / 60Hz @ 1800 RPM
Voltage 380V/400V/440V 3-phase (marine standard)
Application Marine auxiliary power / Industrial prime/standby power
Condition Fully tested assembly, marine-grade certified
Engine Specifications Engine Model CAT 3156 V16 Diesel Engine
Configuration V16, 4-stroke, direct injection
Displacement 78.1 L
Aspiration Twin turbocharged & aftercooled
Compression Ratio 14.5:1
Fuel Consumption ~200 g/kWh @ 75% prime load
Fuel Type Marine diesel oil (MDO) / ASTM No. 2 diesel
Generator End Alternator Type Brushless, self-exciting synchronous (marine grade)
Insulation Class H (marine approved)
Voltage Regulation ±1% (AVR controlled)
Power Factor 0.8 lagging
Efficiency ≥94.5% at full load
Control & Mechanical Control System CAT marine digital controller with alarm system
Cooling System Marine-grade liquid cooling with heat exchanger
Starting System 24V dual electric starters (marine approved)
Dry Weight 11,500–14,500 kg
Dimensions (L×W×H) ~5000 × 2100 × 2700 mm
