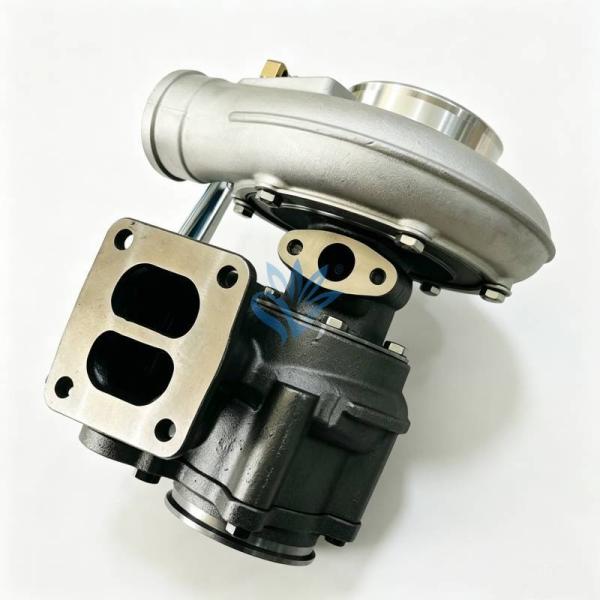

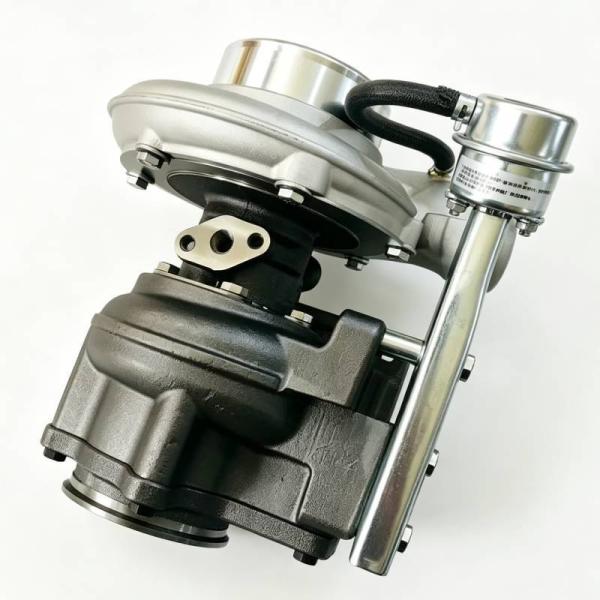

4044947 4049355 4029160 Turbocharger HX35W For 6BT 6CT Excavator Engine
4044947 4049355 4029160 Turbocharger HX35W For 6BT 6CT Excavator Engine
4044947 4049355 4029160 Turbocharger HX35W For 6BT 6CT Excavator Engine
4044947 4049355 4029160 Turbocharger HX35W For 6BT 6CT Excavator Engine
Specifications
MOQ :
1
Price :
$80 ~ $100
Payment Terms :
L/C,T/T,D/P,D/A
Supply Ability :
99
Delivery Time :
3-7 work days
Packaging Details :
Carton Box
Brand Name :
Cum-mins
Model Number :
HX35W
Place of Origin :
China
Product Name :
Turbocharger Assembly
compatible Model :
HX35W
OEM Part Numbers :
4044947, 4049355, 4029160
Compatible Engines :
6BT, 6CT 5.9L/8.3L Diesel Engines
Inlet Flange :
T3 Divided Twin Scroll
Outlet Flange :
4-inch V-band
Compressor Housing :
Cast aluminum alloy
Cylinder :
Multiple models can be installed
Description

4044947 4049355 4029160 Turbocharger HX35W for 6BT 6CT Excavator Engine Parts

Restore lost power and improve fuel efficiency in your powered equipment with this premium HX35W wastegate turbocharger, engineered as a direct OEM replacement for part numbers 4044947, 4049355 and 4029160. Featuring a T3 divided twin-scroll inlet flange, this turbocharger delivers faster spool-up, reduced turbo lag and optimized exhaust energy utilization for 6BT and 6CT diesel engines. Designed for heavy-duty construction, agricultural and industrial applications, it provides consistent boost pressure across all engine speeds, ensuring reliable performance in the most demanding working conditions.

Core Selling Points

✅ T3 Twin Scroll Divided Inlet Design
The dual-scroll manifold separates exhaust pulses from alternating cylinders, eliminating interference and maximizing turbine efficiency. This design delivers 15-20% faster throttle response and improved low-end torque compared to single-scroll turbos.
✅ Exact OEM Fit for 6BT/6CT Engines
Precision-machined to match all mounting points, oil lines and exhaust connections of the original HX35W turbo. No modifications are required, enabling straightforward bolt-on installation and minimal downtime.
✅ Heavy-Duty Industrial Construction
Built with a high-nickel cast iron turbine housing, aluminum compressor housing and heat-treated steel shaft. The wastegate actuator is calibrated to factory specifications for precise boost control and long service life.
✅ 100% Performance Tested
Every unit undergoes rigorous dynamic balancing, pressure leakage and flow testing before shipment. It is ISO 9001 certified and backed by a 6-month manufacturer warranty for complete peace of mind.
Category Parameter Specification
General Information Turbo Model HX35W Wastegate Turbocharger
OEM Part Numbers 4044947, 4049355, 4029160
Compatible Engines 6BT, 6CT 5.9L/8.3L Diesel Engines
Condition New aftermarket assembly, fully tested
Certification ISO 9001:2015, CE compliant
Warranty 6-month comprehensive warranty
Performance Parameters Compressor Wheel Diameter 58 mm (inducer)
Turbine Wheel Diameter 64 mm (exducer)
Maximum Boost Pressure 1.5 bar (21.8 psi)
Operating Temperature Range -40°C to 750°C
Rotation Direction Clockwise (viewed from compressor end)
Structural Details Inlet Flange T3 Divided Twin Scroll
Outlet Flange 4-inch V-band
Compressor Housing Cast aluminum alloy
Turbine Housing High-nickel ductile cast iron
Actuator Type Pneumatic wastegate actuator
Installation & Dimensions Installation Type Direct bolt-on replacement
Oil Inlet M12×1.5
Oil Drain M18×1.5
Coolant Ports M14×1.5 (water-cooled)
Net Weight ~10.5 kg
Part Number Status Description & Compatibility
4044947 Current Production Latest factory-original complete turbocharger assembly, supersedes all previous versions. Standard for 160-210HP 6BT/6CT engines
4044947H Current Production Original equipment manufacturer (Holset) part number, identical to 4044947
4044947RX Remanufactured Factory-remanufactured turbocharger assembly with full OEM warranty
4049355 Superseded Previous generation, fully replaced by 4044947, 100% interchangeable
4029160 Superseded Early production version, fully interchangeable with 4044947
3536338 Superseded Original Holset first-generation part number
3536339 Superseded High-flow version for 210-230HP engines
3802767 Superseded Industrial engine specific version
3802768 Superseded Truck application specific version
