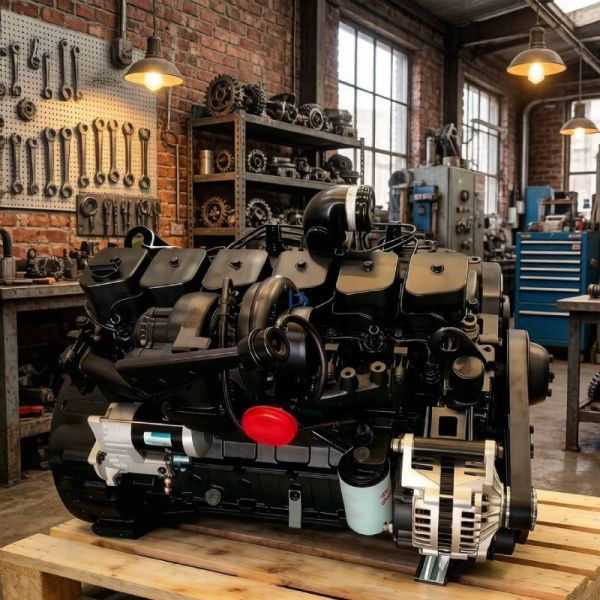

125hp - 180hp Inline 6 Cylinder Diesel Engine Complete 6BT5.9
125hp - 180hp Inline 6 Cylinder Diesel Engine Complete 6BT5.9
Specifications
Brand Name :
Cum-mins
Model Number :
6BT5.9
Place of Origin :
China
MOQ :
1
Price :
$4350 - $4587
Payment Terms :
T/T,D/P,D/A,L/C
Supply Ability :
99
Delivery Time :
3-7 work days
Packaging Details :
Wooden Box
Product Name :
Inline 6 Cylinder Diesel Engine
Compatible Model :
6BT5.9
Configuration :
Inline 6-cylinder, 4-stroke diesel engine
Cooling System :
Water-cooled
Rated Power :
125–180 hp (93–134 kW) @ 2500 RPM
Displacement :
5.9 L (5883 cc)
Fuel Consumption :
~220 g/kWh @ 75% load
Delivery :
3-7 Working Days
Shipment :
DHL FEDEX TNT EMS
Description

Inline 6 Cylinder Diesel Engine Assembly Complete 6BT59 Construction Engine

The 6BT5.9 complete inline 6-cylinder diesel engine assembly is a proven, heavy-duty power unit built to power excavators, loaders, and other industrial equipment. This water-cooled, turbocharged engine delivers reliable, fuel-efficient performance for both prime power and mobile applications. Every unit comes fully assembled with the turbocharger, alternator, starter motor, cooling system, and fuel injection system, requiring no additional parts for installation. Bench-tested to OEM standards, it ensures plug-and-play operation, minimal downtime, and consistent power output in even the harshest working conditions.

Core Selling Points

✅ Proven 6BT5.9 Reliability
A globally trusted engine design, the 6BT5.9 is renowned for its rugged construction, long service life, and low maintenance costs. Built with heavy-duty components, it withstands continuous use in construction, mining, and industrial environments.
✅ Complete Ready-to-Install Assembly
This turnkey engine includes all auxiliary systems (turbo, alternator, starter, cooling, fuel system). No additional parts are needed, cutting installation time and reducing costly equipment downtime.
✅ Versatile Power for Multiple Applications
Ideal for excavators, wheel loaders, generators, and heavy-duty trucks. Its power range and torque characteristics make it adaptable to a wide variety of construction and industrial equipment needs.
✅ Factory Calibrated & Quality Tested
Each engine undergoes comprehensive performance testing (compression, oil pressure, and leak tests) to ensure it meets factory specifications. It is backed by a 6-month manufacturer warranty.

Category Parameter Specification
General Information Engine Model 6BT5.9
Configuration Inline 6-cylinder, 4-stroke diesel engine
Cooling System Water-cooled
Condition New complete assembly, 100% bench-tested
Warranty 6-month comprehensive manufacturer warranty
Performance Parameters Rated Power 125–180 hp (93–134 kW) @ 2500 RPM
Displacement 5.9 L (5883 cc)
Aspiration Turbocharged
Compression Ratio 17.5:1
Fuel System Mechanical direct injection
Fuel Type Diesel (EN 590 / ASTM No. 2)
Fuel Consumption ~220 g/kWh @ 75% load
Mechanical Specifications Starting System 12V / 24V electric starter motor
Charging System 12V / 24V alternator
Lubrication System Pressure-fed lubrication with full-flow filter
Dry Weight ~420 kg
Dimensions (L×W×H) ~1050 × 650 × 900 mm
Emission Compliance Emission Standard Non-road Tier 1 / Stage I
Applications Primary Use Excavators, wheel loaders, industrial generators, heavy-duty trucks, construction machinery

Part Number Configuration Description & Compatibility
6BT5.9-C150 150HP Industrial/Excavator Factory-original complete engine assembly, the most common version for PC200-6/PC220-7 excavators
6BT5.9-C170 170HP High-Power 170HP variant for heavy-duty excavators and wheel loaders
6BT5.9-G2 Generator Set Version Calibrated for genset applications, 120-150kVA power range
6BT5.9-210 Truck Version 210HP variant for heavy-duty trucks
