16.5 kW 22.1 HP Construction Engine Kubota D902 Engine For U17 / U17-5 KX41-3
16.5 kW 22.1 HP Construction Engine Kubota D902 Engine For U17 / U17-5 KX41-3
Specifications
Brand Name :
Kubota
Model Number :
D902
Place of Origin :
China
MOQ :
1
Price :
$1400 - $1680
Payment Terms :
T/T,D/P,D/A,L/C
Supply Ability :
99
Delivery Time :
3-7 work days
Packaging Details :
Wooden Box
Product Name :
Construction Engine
Compatible Model :
D902
Displacement :
0.898 L (898 cc)
Rated Power :
16.5 kW (22.1 HP) @ 3000 RPM
Cylinder Arrangement :
Inline 3-cylinder, 4-stroke diesel
Maximum Torque :
48 N·m @ 2000 RPM
Fuel Consumption :
~235 g/kWh @ 75% load
Fuel Type :
Diesel (EN 590 / ASTM No. 2)
Description

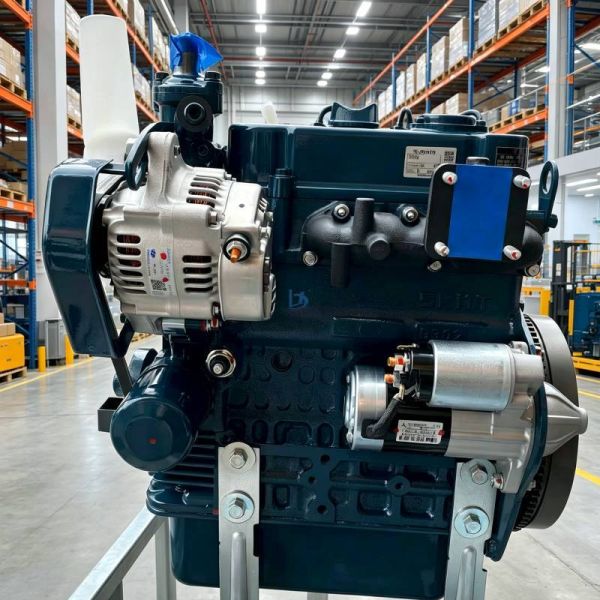

D902 Diesel Engine Assembly for Kubota Construction Engine U17/U17-5 KX41-3

The D902 complete diesel engine assembly is the ultimate direct replacement power unit for 1-2 ton class mini excavators and compact construction equipment. Engineered to exact Kubota OEM specifications, this fully assembled engine is designed as a drop-in replacement for Kubota U17/U17-5, KX41-3, KX018-4, KH-35(H), as well as LiuGong CLG9017F and Doosan DX17Z models. It comes pre-installed with all critical components including the alternator, starter motor, cooling system, and fuel injection system, requiring no additional parts for installation. Every unit undergoes comprehensive bench testing before shipment to ensure immediate, trouble-free operation and minimal equipment downtime.

Core Selling Points

✅ Precision Fit for Multiple Mini Excavator Brands
Calibrated to match the exact mounting points, electrical connections, and performance specifications of original Kubota engines. It is fully compatible with Kubota, LiuGong, and Doosan mini excavators, eliminating compatibility issues and simplifying repairs.
✅ Complete Ready-to-Install Assembly
Comes fully integrated with all auxiliary components including the radiator, fan, alternator, starter motor, and fuel pump. This all-in-one solution reduces installation time by up to 70% compared to rebuilding an existing engine.
✅ Kubota-Level Reliability & Efficiency
Built with a heavy-duty cast iron block and precision-engineered internal components, this engine delivers exceptional durability and long service life. Kubota’s advanced combustion technology ensures low fuel consumption and minimal exhaust emissions.
✅ Rigorous Quality Assurance
Every engine undergoes comprehensive performance testing, including compression, oil pressure, and leak tests. It is ISO 9001 certified and backed by a 6-month comprehensive manufacturer warranty for complete peace of mind.

Category Parameter Specification
General Information Engine Model D902
Condition New complete assembly, 100% bench-tested
Certification ISO 9001:2015, CE compliant
Warranty 6-month comprehensive manufacturer warranty
Engine Configuration Cylinder Arrangement Inline 3-cylinder, 4-stroke diesel
Displacement 0.898 L (898 cc)
Bore × Stroke 72 mm × 73.6 mm
Compression Ratio 23.5:1
Aspiration Naturally aspirated
Combustion System Direct injection (DI)
Performance Parameters Rated Power 16.5 kW (22.1 HP) @ 3000 RPM
Maximum Torque 48 N·m @ 2000 RPM
Fuel Consumption ~235 g/kWh @ 75% load
Fuel Type Diesel (EN 590 / ASTM No. 2)
Mechanical Specifications Cooling System Liquid-cooled with radiator and fan
Starting System 12V electric starter motor
Charging System 12V, 40A alternator
Lubrication System Pressure-fed with full-flow filter
Dry Weight ~95 kg
Dimensions (L×W×H) ~550 × 450 × 600 mm
Compatible Equipment Kubota Models U17, U17-5, KX41-3, KX018-4, KH-35(H)
Other Brands LiuGong CLG9017F, Doosan DX17Z
