Specifications
Feature :
TRUCK CRANE
Application :
construction
Max. Lifting Height :
12.5m
Place of Origin :
Jiangsu, China
Brand Name :
Famous Brand
Warranty :
1 Year
Hydraulic Cylinder Brand :
Famous Brand
Hydraulic Pump Brand :
Famous Brand
Hydraulic Valve Brand :
Famous Brand
Engine Brand :
Famous Brand
UNIQUE SELLING POINT :
Environmental,Energy-saving,Large power engine
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Weight (KG) :
3800 kg
Outrigger span: :
2280-5580mm
Dimension: :
5350*2430*3290mm
Showroom Location :
France
Condition :
New
Marketing Type :
Hot Product 2019
Price :
$20,000.00/units 1-4 units
Description
Product Description

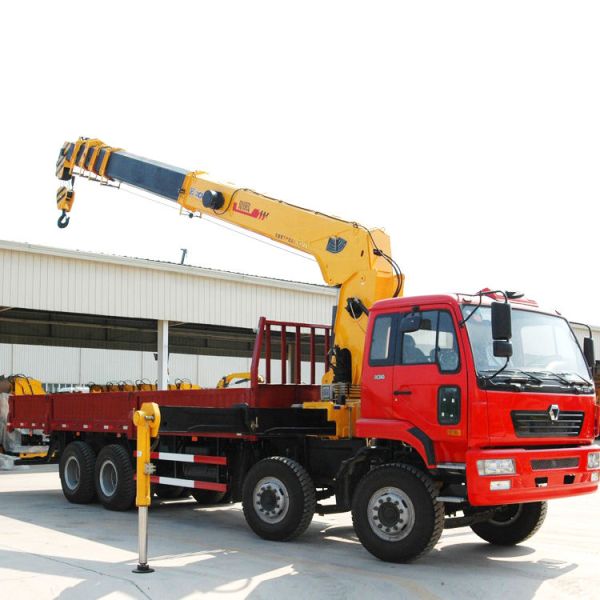

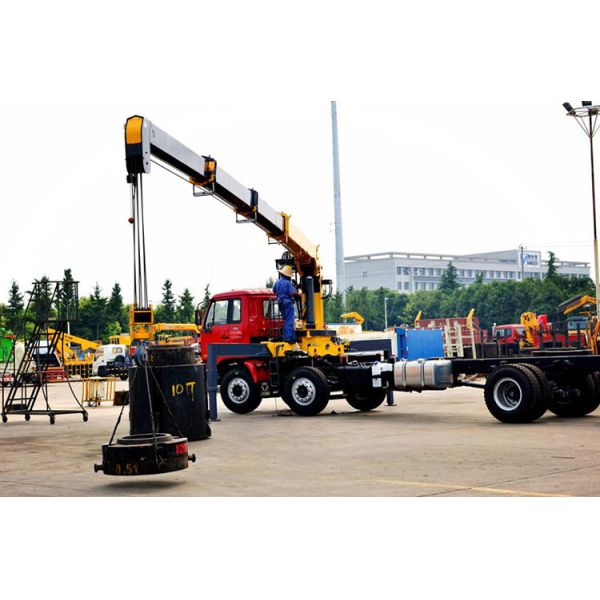

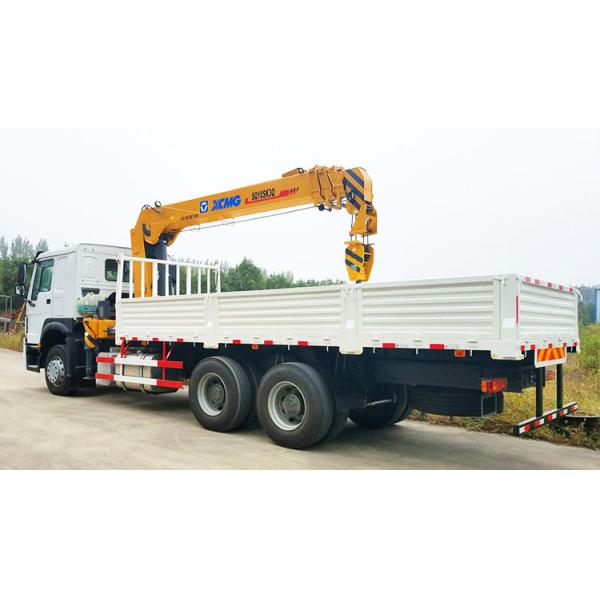

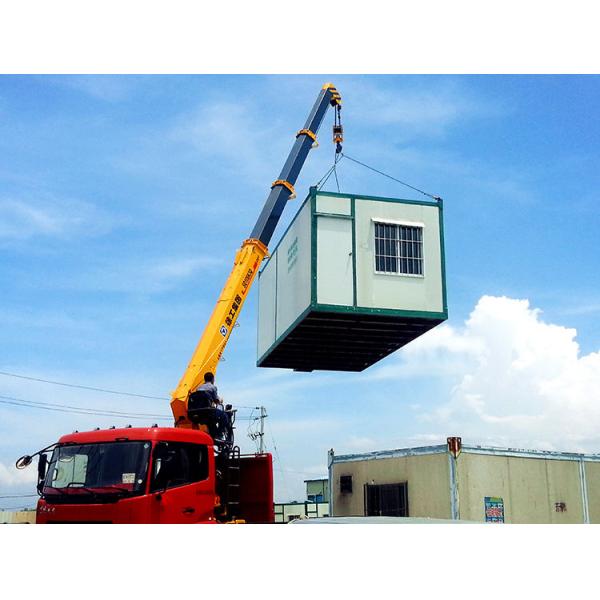

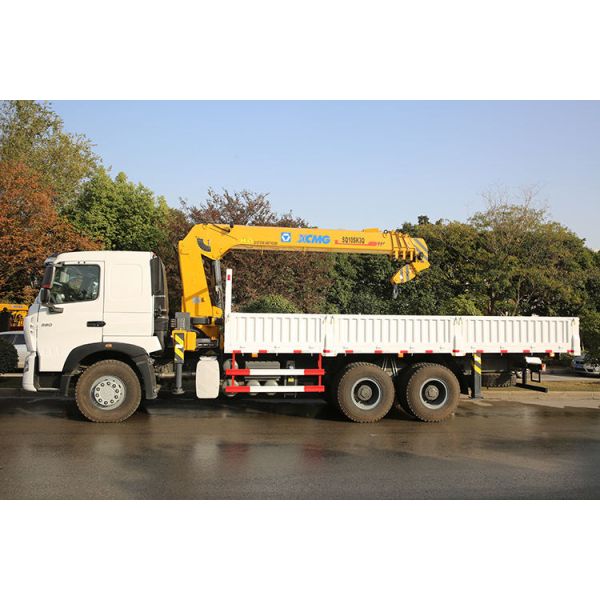

China Supplier SQ10SK3Q 10 ton construction telescopic boom truck mounted crane
1,Throttle Control System
Changing the form of previous manipulation and throttle operation individually,Realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,it can easily to carry out the lifting work.

2, End position automatic hook device
Maximum savings in preparation time before and after operation, to ensure that customer's vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.

3, Hoisting overwinder device
If a user is negligent or unfamiliar with the operation of lifting hooks,the hoisting overwinder device will stop hook raise in
time, to prevent the safety of personal and property caused by fracture of wire rope.

4, Slewing locking device
Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle,to avoid all kinds of accidents caused by swaying.

5, Dual pump converging
The hydraulic system adopts dual high pressure gear pump, multi-way valve hoisting joint to realize the converging, to improve the speed of winch, at the same time, it can realize the compound action of crane.

6, Torque limiter
It can select torque limit overload protection device to prevent users because of negligence or unfamiliar with the lifting
operation principle of overload operation, thereby causing the vehicle rollover and crane damage accidents.
10 Ton Telescopic Boom Truck Mounted Crane and with Outrigger Span of 2280-5580mm
10 Ton Telescopic Boom Truck Mounted Crane and with Outrigger Span of 2280-5580mm
10 Ton Telescopic Boom Truck Mounted Crane and with Outrigger Span of 2280-5580mm
10 Ton Telescopic Boom Truck Mounted Crane and with Outrigger Span of 2280-5580mm
10 Ton Telescopic Boom Truck Mounted Crane and with Outrigger Span of 2280-5580mm
Specification
Item
Units
SQ10SK3Q
Max lifting capacity
kg
10000
Max lifting capacity
T.m
25
Recommend power
kW
30
Max oil flow
L/min
63
Max pressure
mpa
26
Oil Tank Capacity
L
160
Crane weight
kg
3800
Installation space
mm
1150
Rotation angle
degree
360
Max extension length
mm
12000
Max lifting height
mm
12500
