Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Specifications
Condition :
New
Steering :
Left
Horsepower :
351 - 450hp
Emission Standard :
Euro 2
Brand Name :
Shacman
Place of Origin :
Shandong, China
Segement :
Heavy truck
Market Segement :
Engineering transportation
Engine Brand :
WEICHAI
Fuel Type :
Diesel
Engine Capacity :
> 8L
Cylinders :
6
Gear Box Brand :
SINOTRUCK
Transmission Type :
Manual
Forward Shift Number :
10
Reverse Shift Number :
2
Maximum Torque(Nm) :
2000-2500Nm
Dimensions (L x W x H) (mm) :
10500*25500*3500mm
Cargo Tank Dimension :
7600 X 2300 X1500 mm
Cargo Tank length :
6.2-8m
Gross Vehicle Weight :
15-20T
Capacity (Load) :
41 - 50t
Fuel Tank Capacity :
300-400L
Drive Wheel :
8X4
Passengers :
2
Driver's Seat :
Normal
Rear Camera :
None
Cruise Control :
None
ABS(Antilock Braking System) :
None
ESC(Electronic Stability Control System) :
None
Touch Screen :
None
Multimedia System :
None
Window :
Manual
Air Conditioner :
Manual
Tire Number :
12
After-sales Service Provided :
Video technical support, Online support
Brand :
Shacman
Transmission :
FAST 10JSD180
Driving type :
8x4 Right Hand Driving
Tire :
12+1
Engine :
WEICHAI WP10.380E201 Euro
Loading capacity :
40-50 Ton
Rear axle :
Man 16 X2
Fuel tank :
400L
Bucket capacity :
25 CBM
Color :
Customer's Request
Packaging Details :
Bulk ship
Port :
Tianjin
Supply Ability :
100 Unit/Units per Month
Price :
$33,250.00/units 1-2 units
Description
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Max. running speed (km/h) 最高车速
82
Drive System 驱动形式
8×4
Dimensions
（L*W*H）(mm)
Overall 外部尺寸
9735×2490×3790
Dump body 内部尺寸
7600×2300×1700
Thickness (mm) 厚度
Bottom 8, side 6 底8边6

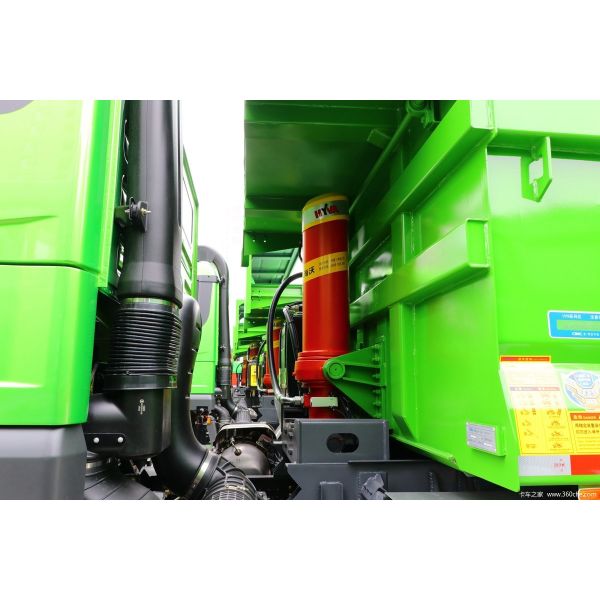

Hydraulic lifting system 液压举升系统
Ф200 Before the lifting Ф200前举
Approach / departure angle (°) 接近角/离去角
28 / 20
Kerb weight (kg)自重
15500
Total mass (kg)总重
31000
Wheel base (mm) 轴距
1800+3775+1400
Engine 发动机
WEICHAI WP10.380E201 Euro Ⅱ 潍柴动力 欧2排放
Horsepower 马力
420 hp
Gearbox 变速箱
FAST 10JSD180,法士特10档变速箱
Clutch 离合器
Ф 430 Diaphragm type Ф 430膜片离合式
Steering 转向机
ZF technology
Cab 驾驶室
F3000 mid-lengthened Cabin with single-sleeper
F3000中长平顶驾驶室带单卧铺
Axle 桥

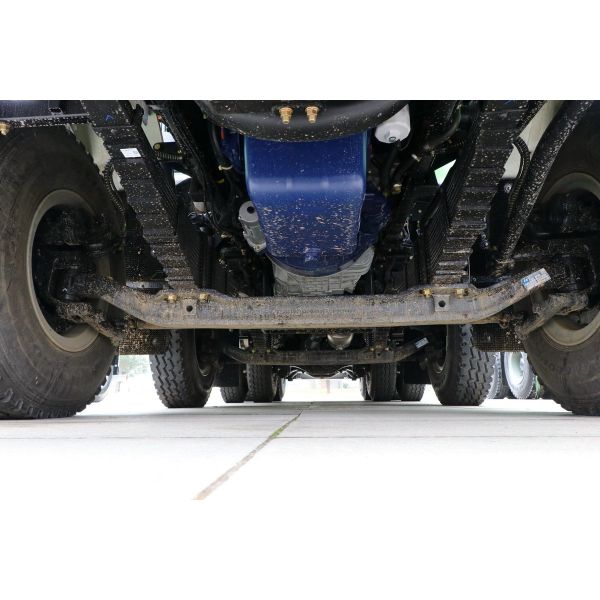

Front axle前轴
9.5T MAN
Rear axle 后桥
16Ton MAN axle, final ratio 5.262
16吨曼双极桥，速比5.262
Tyre (radial tyre) 轮胎（钢丝胎）
12.00R20（12+1 备胎）
Oil tank 油箱
300L(Metal) 300L金属油箱
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
