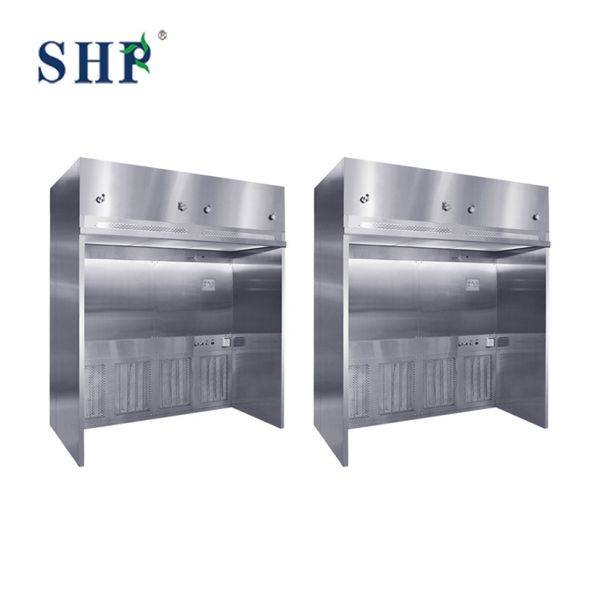

Product Overview ——Negative Pressure Weighing Hood with Customized Size and HEPA Filter 99.99% 0.3um

LAF/Weighing Booth/Dispensing Booth

Main Specification for LAF/Weighing Booth/Dispensing Booth

Core Working Principle

Airflow Patterns

• • Vertical Laminar Flow (VLF): Air flows vertically downward from the ceiling through the work zone and exits via floor return grilles.

  • Horizontal Laminar Flow (HLF): Air flows horizontally from one wall across the work zone to the opposite exhaust wall.

  • Core Principle: The "Piston Effect" – clean air moves at a constant velocity, pushing contaminants in a directed flow toward exhaust points, preventing dispersion and cross-contamination.

Filtration System

• • Pre-Filter: Captures larger particles to protect the main filter.

  • HEPA Filter: Minimum 99.995% efficiency on particles ≥0.3 μm.

  • ULPA Filter: Minimum 99.9995% efficiency on particles ≥0.12 μm.

Products Description

• Housing/Casing: Constructed from stainless steel, aluminum, or coated galvanized steel for durability, cleanability, and corrosion resistance.

• HEPA/ULPA Filter: The core filtration element, mounted on the discharge side, providing final air cleaning.

• Centrifugal Blower Fan: Typically a backward-curved impeller design, providing stable airflow with good energy efficiency and low noise. Units may feature single or multiple fans (for redundancy).

• Pre-filter: Usually a primary (G4) or medium-efficiency (F8) filter located at the fan inlet. It protects the main HEPA filter and extends its service life by capturing larger particles.

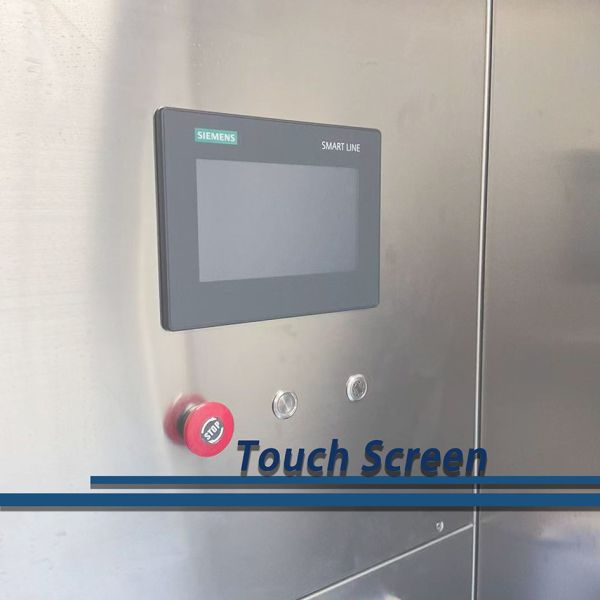

• Control System:

  • Speed Control: Modern FFUs predominantly use Electronically Commutated (EC) motors, allowing infinite variable speed control via 0-10V DC, PWM signals, or network commands. This enables precise airflow adjustment and significant energy savings compared to older AC motor designs.

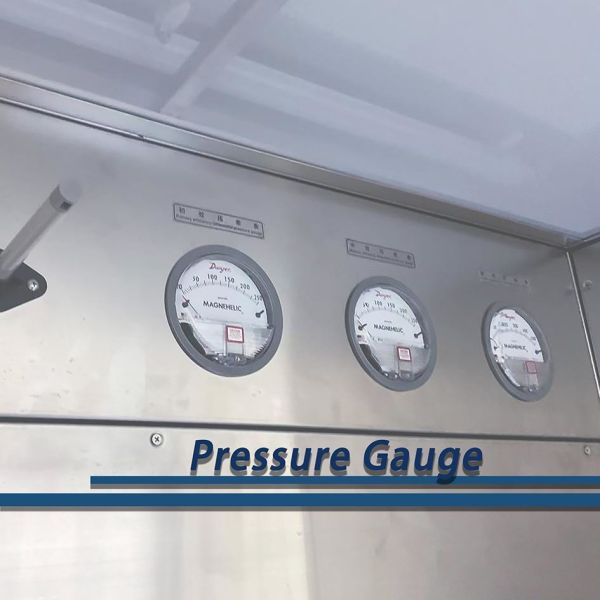

  • Monitoring: May include integrated differential pressure sensors (to monitor filter loading), status indicator lights, alarm functions, and communication interfaces for connection to Building Management Systems (BMS).

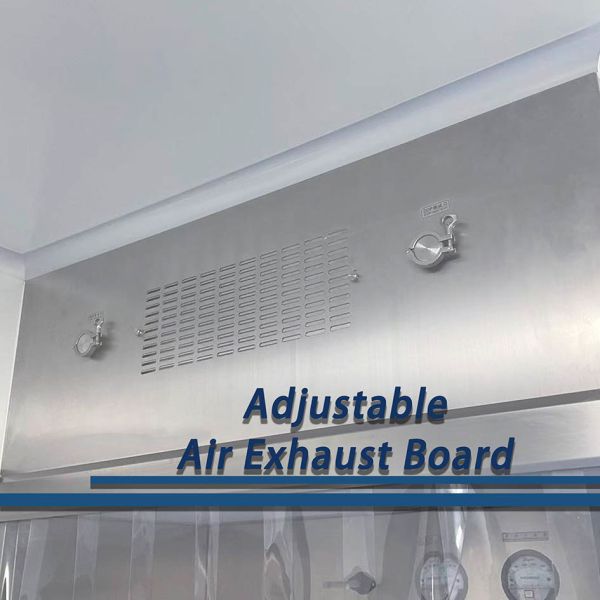

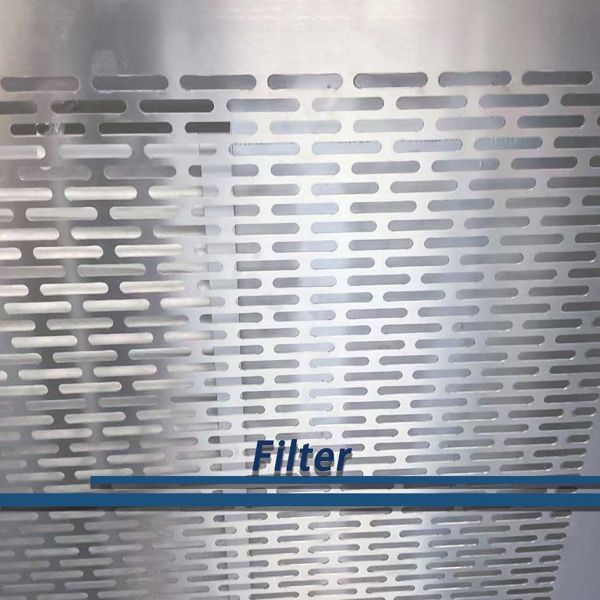

• Airflow Diffuser/Perforated Plate: Mounted below the filter, it helps to equalize and stabilize the discharged airflow, promoting uniform laminar flow.

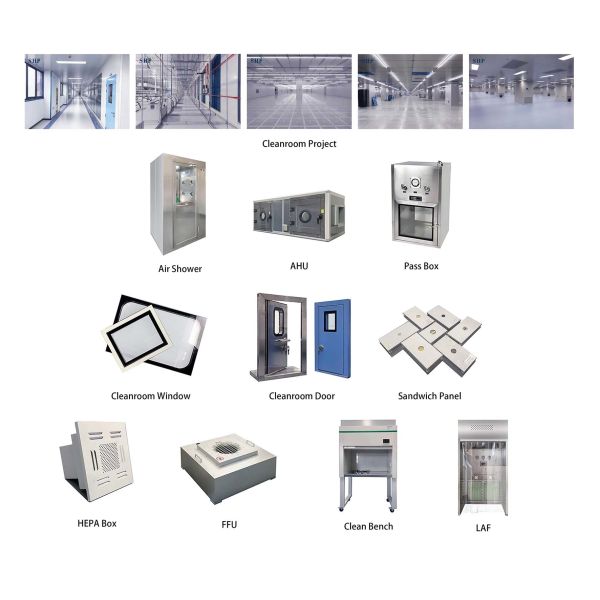

Related Products

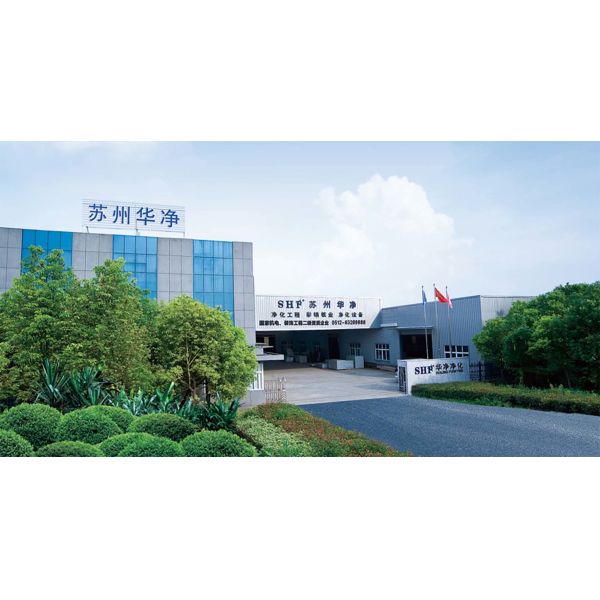

Company Profile

As a leading supplier of clean room system and clean room products,SHP is an organization that prides itself both on technical expertise as well as next level customer care.SHP offers Cleanroom Solutions to meet our clients' particular requirements specialized for pharmaceutical,biotechnology and microelectronic cleanrooms.We also provide a range of Clean Room products including wall panel,door&window and a series of clean room equipment.

As an ISO 9001:2015 certified organization,we are committed to continually improving our customer service programs while meeting or exceeding your product quality criteria.With our comprehensive customer solution offerings,excellence in products,and decades of technical expertise,we are confident that SHP can match the best to your application.

Our Certification

Customer Photos

FAQ

Q1: Where is your company?

A1:Our company is located in Suzhou City, close to Shanghai. It's a 1.5-hour drive from PVG Airport.

Q2: Are you a manufacturer or a trading company? What can I buy from you?
A2: We are manufacturers. We focus on cleanroom projects, air showers, FFUs, through boxes, dosing rooms, laminar flow hoods and benches, AHUs, and sealed doors and Windows.

Q3:When is your delivery time?
A3: If your cleanroom project includes AHU, the delivery time is 35 days. If you purchase goods without an AHU, the delivery time is 10 days.

Q4: How long is your warranty period? What kind of after-sales service can you offer?
A4: Our warranty period is two years after the completion of the project. During the warranty period, if there are any problems, we will replace it. If you can't handle it, we will send an engineer to solve it for free.

Q5:Can you conduct cleanroom validation?
A5: Yes, we can offer documentaries of DQ, IQ, OQ and PQ. Still fat & Sitting. Product operation manual, maintenance guide and a complete set of cleanroom drawings.

Q6:What are your advantages?
A6: We have a complete technical team consisting of 12 senior cleanroom and HVAC engineers to provide you with technical support. We have completed over 2,100 cleanroom projects in China and overseas. Such as Japan, Indonesia, Thailand, Bangladesh, India, North Macedonia, Saudi Arabia, Yemen, Russia, Moldova, Switzerland, Norway, the United Kingdom, Spain, France, Belgium, Kuwait, Tunisia, Mauritius, Sri Lanka, Mongolia, Philippines, Nepal, Sudan, Somaliland, Australia, New Zealand, Canada, Algeria, Egypt, Singapore, and the United States.
