Pharmaceutical Turnkey Clean Room Air Purifier Iso 7 Hvac System For Electronics
Pharmaceutical Turnkey Clean Room Air Purifier Iso 7 Hvac System For Electronics
Pharmaceutical Turnkey Clean Room Air Purifier Iso 7 Hvac System For Electronics
Pharmaceutical Turnkey Clean Room Air Purifier Iso 7 Hvac System For Electronics
Pharmaceutical Turnkey Clean Room Air Purifier Iso 7 Hvac System For Electronics
Pharmaceutical Turnkey Clean Room Air Purifier Iso 7 Hvac System For Electronics
Pharmaceutical Turnkey Clean Room Air Purifier Iso 7 Hvac System For Electronics
Pharmaceutical Turnkey Clean Room Air Purifier Iso 7 Hvac System For Electronics
Specifications
Brand Name :
SHP
Model Number :
Customized
Certification :
CE、ISO
Place of Origin :
China
MOQ :
50 square meters
Price :
$500.00/square meters 50-499 square meters
Payment Terms :
L/C,T/T
Packaging Details :
Wooden Case, Galvanized Steel Pallet, Plastic Film
Delivery Time :
30 days
Supply Ability :
≥1 set
Condition :
New
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory, Cosmetics, Electronics, Laboratories, Clean Room, Dust-free Workshop, Hospitals
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Cleanliness :
Class 100 to Class 100,000
HEPA Filter :
99.995%@0.3um or as required
Key Words :
Turnkey Solution Clean Room
Application :
Electronics, Food, Hospital
Material :
Rock wool sandwich panel or hollow glass magnesium sandwich Panel
Work Scope :
Construction, HVAC, Electric, Process piping
Description

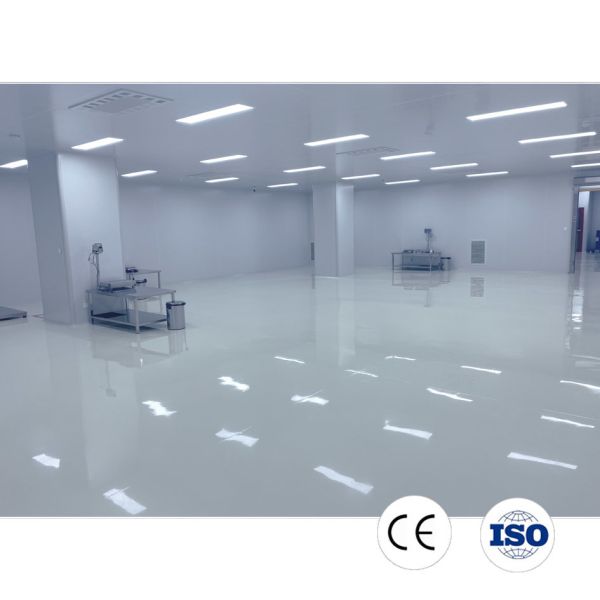

Product Overview ——Pharmaceutical Turnkey Iso 7 Modular Clean Room Dust Free Room For Electronics


Pharmaceutical Turnkey Clean Room Air Purifier Iso 7 Hvac System For Electronics

Cleanrooms offer definitive advantages: superior contamination control for higher product yields, a stable environment for consistent processes, and the foundational compliance required for market access in regulated industries. They are the backbone of quality in precision-dependent sectors.


Cleanroom Description


Application Pharmaceutical Lab Electronics
Cleanliness China class 100 to 100000 ISO 5 to 8 EU B to D
Scope

Structure part;

Partition and ceiling panel;

door and window,epoxy.

HVAC part;

AHU and chiller;

Ducting and piping.

Electrical part;

Lamp,switch and socket;

Distribution cabinet.
Service Design and production Construction and test Validation and training


Wall/ceiling panel Machine-made or Hand-made sandwich board
Clean room equipment Air shower,FFU,Pass box,Laminar flow cabinet,hepa box
Cleanliness Class 100-100000
Purification system HVAC, or AC conditioner+FFU
Floor PVC anti-static floor or epoxy-based coating
Other addessores stalinite window,LED panel light,Door,Hand wash sink,storage/shoe cabinet etc
Service Design,manufacturing,construction


Features at a Glance

Function Category Core Purpose Key Components / Actions
1. Particulate & Microbial Control To remove and prevent airborne contaminants. • Filtration: HEPA/ULPA filters
• Airflow Management: Laminar/Turbulent flow
• Pressurization: Positive/Negative pressure cascades
2. Environmental Parameter Regulation To maintain stable, specified physical conditions. • Climate Control: Precise temperature & humidity
• Additional Controls: Lighting, vibration, ESD mitigation
3. Contamination Containment To isolate processes and protect adjacent areas. • Physical Barrier: Sealed envelope with smooth surfaces
• Access Control: Airlocks, gowning rooms, pass-throughs
4. Personnel & Material Flow Management To minimize human and item-borne contamination. • Procedures: Strict gowning, cleaning, and entry protocols
• Infrastructure: Designed workflows for people, materials, waste
5. Monitoring & Validation To ensure continuous compliance with specifications. • Real-time Sensors: Particle counters, pressure gauges, etc.
• Documentation: Data logging for audits and certification

Products Description


Pharmaceutical Turnkey Clean Room Air Purifier Iso 7 Hvac System For Electronics

Pharma,Biotech&Labs
With today's new regulations and growing concernforpublicsecurity,pharmaceutical,biotech and medical device industries need to maintain and upgrad their facilities in order to meet new requirements and regulations.SHP's in-house experts have the necessary experience in designing building and installin cleanrooms and enclosures to be compliant with new standards.And our knowledge and experience cove a wide range such as infusion production, tablet making and vaccine project,etc.

Pharmaceutical Turnkey Clean Room Air Purifier Iso 7 Hvac System For Electronics

Electronic,Semiconductors&High-tech Industry
SHP designs,manufactures and installs cleanrooms for the semiconductor and high-technology sectors,from optics,photonics to the assembly of electronic components.In these induatries,products are often very sensitive to airborne particulates and must be manufactured in a controlled environment.Inaddition,these industries often require the use of ultra-precise and costly equipment that must be housed and operated in a location where temperature and humidity are maintained at a specific level.

Pharmaceutical Turnkey Clean Room Air Purifier Iso 7 Hvac System For Electronics

Hospital
SHP designs and installs cleanrooms that can work well for hospital and pharmaceutical applications and are of high quality to meet stringent cleanroom standards.High levels of environmental control are required to protect patients' health.SHP constructs cleanrooms that can incorporate existing structures or stand freely and offers a high level of environmental control including static,pressure,contamination,and humidity control can be designed to comply with even the most stringent medical standards.

Pharmaceutical Turnkey Clean Room Air Purifier Iso 7 Hvac System For Electronics

Food Processing&Packaging
Food Processing is an industry where product safety,quality,and integrity are paramount.Assuch,cleanrooms are vital in the food manufacturing industry to ensure food product quality and to adhere to GMP(ISO) standards and requirements,In food manufacturing,cleanrooms must generally meet ISO Class 6 standards.We offer a variety of options to meet your application's specific needs,from highly controlled HardWall cleanrooms that can be built to comply with the most stringent classification to SoftWallcleanrooms with a high degree of flexibility thatwork well for food storage and similar uses.

Pharmaceutical Turnkey Clean Room Air Purifier Iso 7 Hvac System For Electronics

Manufacturing Industry
Authoritative documents such as ISO 14644 provide no specific instructions regarding activities carried out in other manufacturing industry such as medical device enbvironment.Broadly,medical device manufacturing is conducted in an ISO Class 5 cleanroom(Feb.Class 3),while medical device packaging is conducted in an ISO Class 7-8 cleanroom.Guaranteed completion and final compliance testing are among the reasons SHP is a trusted ally of enterprise in this area as well.
