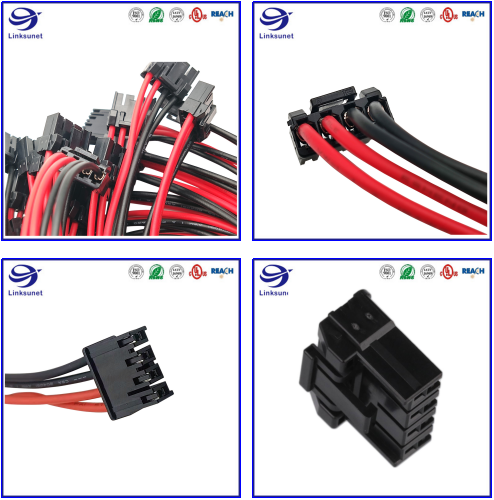

The DF63 series can be mounted in three configurations: vertical, straight, and in-line. A guide post on the header prevents incorrect placement to the PCB, so mounting errors are eliminated. Even with its small size, the DF63 accepts potting up to 5 mm high. The bottom of the housing is tapered and helps the resin to surround the contacts.

• Small size and supports up to 15 A with #16 AWG cable
• High reliability with multi-contact points
• 3.96 mm pitch
• Secure mating and clear tactile click

• Locking structure prevents incorrect mounting and mating
• Accepts resin sealing up to 5 mm height
• Variations: 1 to 6 positons (straight, right angle, in-line)
• Will be UL and TÜV certified

FAQ

Wire &Cable Reference

Standard Confirm

Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer

Requirements and Acceptance for Cable and

Wire Harness Assemblies

Sample L/T,MOQ

We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks

when under you order form,we return the delivery(usually)

sample expense MOQ: Depends on the main material

Wire &Cable Customized

High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6

Apha, Belden, 3M, or Customer specified weeks

Mid-ranking : Ltk, Wonderful, Cableplus,

Honglin

Packing Connector

Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,

Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.

Q How can I get the sample to check your quality?

After price confirmation, you can require for samples to check our product’s quality. We are must charge

the sample expense, when under you order form, we return the sample expense.

Q What can I get the price?

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please

tell us in your email so that we will regard you inquiry priority.

Q What is your term of delivery?

We accept EXW, FOB Shanghai . You can choosethe one which is the most convenient or cost effective

for you.

Q What about the lead time for the mass production?

Honestly, it depends on the order quantity and the season you place the order.
