LP20 4-Core 20A Waterproof Connector IP68 Metal Plastic Flange Mount
LP20 4-Core 20A Waterproof Connector IP68 Metal Plastic Flange Mount
LP20 4-Core 20A Waterproof Connector IP68 Metal Plastic Flange Mount
LP20 4-Core 20A Waterproof Connector IP68 Metal Plastic Flange Mount
LP20 4-Core 20A Waterproof Connector IP68 Metal Plastic Flange Mount
LP20 4-Core 20A Waterproof Connector IP68 Metal Plastic Flange Mount
LP20 4-Core 20A Waterproof Connector IP68 Metal Plastic Flange Mount
LP20 4-Core 20A Waterproof Connector IP68 Metal Plastic Flange Mount
Specifications
Brand Name :
Cablein
Certification :
CE, ROHS, TUV , ETL
Place of Origin :
Shenzhen China
MOQ :
100PCS
Price :
The price ranges from $1 to $4 USD per pieces
Payment Terms :
T/T,Western Union
Delivery Time :
5-8 Working Days
Packaging Details :
High Quality export carton
Name :
LP20 Type 4-Core Locking Wire 20A Power Flange-Style Metal + Plastic Waterproof Connector
Corrosion Resistance :
High Corrosion Resistance
Flame Resistanc :
UL94 V-0
Waterproof :
IP68/IP67
Dustproof :
100% Dustproof
Withstand Temperature :
-40℃~+80℃
Metal :
Gilded brass
Material :
Metal + Plastic
Description
LP20 Type 4-Core Locking Wire 20A Power Flange-Style Metal + Plastic Waterproof Connector
Specifications
  • Pin: 4 Pin
  • Current Rating(A): 20A Max
  • Material: Metal+plastic
  • Conenction Way: Push-button snap fastener
  • Operating Voltage: 500V Max
  • Assembly Wire: IP-Rated Locking Gland
  • Mounting Type :Flange Mounting Type
  • Out Door UV Resistance: Pass
  • Cable Jacket OD: 2.5-4 mm²
LP20 Type 4-Core Locking Wire 20A Power Flange-Style Metal + Plastic Waterproof Connector datasheet
Pins Number2Pins3Pins4Pins5Pins7Pins9Pins12Pins
Rated Voltage500V
250V
Rated Current20A10A5A
Insulation voltage2.5KV1.5KV
IP CODEIP68
Cable Jacket ODStandard Power:⌀8-12mm Standard Signal :⌀5-6.5mm Other:⌀5-9mm
Assembly cable diameter2.4-4mm²/14-12AWG1-1.5mm²/18-16AWG0.34-0.75mm²/22-20AWG
Ambient temperature-40℃~+80℃
LP20 Type 4-Core Locking Wire 20A Power Flange-Style Metal + Plastic Waterproof Connector Advantages:
  1. Material & Performance:
    The housing is made of high-performance PBT engineering plastic, ensuring stable electrical properties, excellent heat resistance, and corrosion resistance. The gold-plated conductive components guarantee superior conductivity and meet temperature rise requirements even in high-temperature environments.
  2. Secure Locking Mechanism:
    Features a push-to-lock snap-fit design for secure mating and smooth insertion/removal.
  3. Waterproof Design:
    Standard IP67 rating (IP68 optional) provides precise waterproof protection.
  4. Certifications & Compliance:
    Complies with TUV, ISO, CE, and RoHS certifications, meeting global market requirements.
  5. High Current Capacity: Supports 20A power transmission, making it suitable for medium-to-high-power applications
  6. Versatile Compatibility: The 4-core design allows for multiple signal/power transmissions in a single compact connector.
LP20 Type 4-Core Locking Wire 20A Power Flange-Style Metal + Plastic Waterproof Connector Application industries
  • Automation Equipment
  • LED Lighting
  • Security Equipment
  • Telecommunication Equipment
  • New Energy
  • Electronic Devies

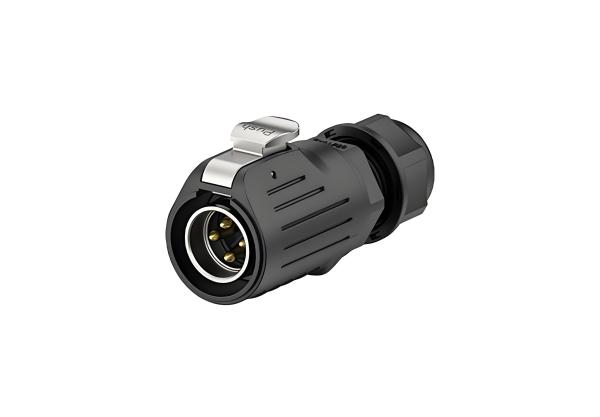

LP20 4-Core 20A Waterproof Connector IP68 Metal Plastic Flange Mount
LP20 Type 4-Core Locking Wire 20A Power Flange-Style Metal + Plastic Waterproof Connector Drawing
LP20 4-Core 20A Waterproof Connector IP68 Metal Plastic Flange Mount LP20 4-Core 20A Waterproof Connector IP68 Metal Plastic Flange Mount
FAQ
Q: How does the locking mechanism operate? Does it support quick mating/unmating?

Locking Operation: The cable is secured by rotating or pressing the connector's latch mechanism (specific method varies by model) to prevent loosening in high-vibration environments.

Mating/Unmating Performance: Quick plugging/unplugging is supported, but the locking mechanism must be disengaged first to avoid interface damage

Q: Can pin assignments or color markings be customized?

Yes, we support the following customizations:

  1. Pin assignment modification (e.g., redefining Pin #1 as signal terminal)
  2. Housing color options (red/blue/green, etc. for voltage level identification)
  3. Cable length adjustments (specific requirements needed)
