P20 3-Pin Power Connector with 16A 450V Push-Wire Waterproof Circular Connector
P20 3-Pin Power Connector with 16A 450V Push-Wire Waterproof Circular Connector
Specifications
Brand Name :
Cablein
Certification :
CE, ROHS, TUV , ETL
Place of Origin :
Shenzhen China
MOQ :
100PCS
Price :
The price ranges from $1 to $4 USD per pieces
Payment Terms :
T/T,Western Union
Supply Ability :
Monthly output: 10,000 sets
Delivery Time :
5-8 Working Days
Packaging Details :
High Quality export carton
Mechnical Life :
≥1000 times
Contact Resistance :
≤10mΩ
Pin :
3 Pin Male Femal Connector
Housing Material :
nylon, PVC
Connector Type :
Waterproof Connector
Mating Style :
Male and Female
Interface Type :
AC/DC
Breakdown Voltage :
1500 V or higher
Description
P20 3-Pin Power Connector, Push-Wire IP68 Quick Connect
Specifications

Connection Type: Quick Connect

Installation Type: Wire-to-Wire

Pin: 3

Material: PA66

Applicable Wire Gauge: 0.5mm²-2.5mm²

Waterproof Ring: 5-9mm 9-12mm

Rating:IP68

Datasheet
Parameter Specification
Product Name P20 3-Pin Power Connector, Push-Wire IP68 Quick Connect
Wiring Range 0.5 - 2.5 mm²
Rated Current 16A
Operating Voltage 450V
Ingress Protection (IP) Rating IP67 /IP68
Ambient Temperature -40℃ ~ +105℃
Cable Diameter (OD) 5-12mm
Advantages
  1. Tool-less, push-wire termination.
  2. IP68 rating for dust and water resistance.
  3. Secure quick-connect locking mechanism.
  4. Compact P20 size for tight spaces.

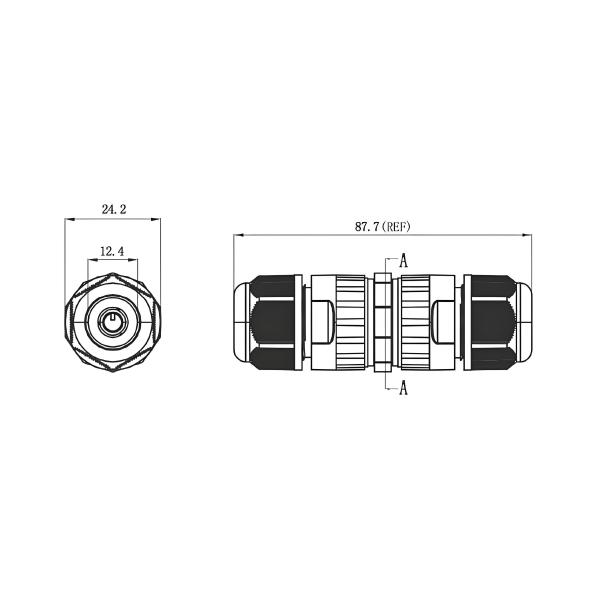

Product Images
P20 3-Pin Power Connector with 16A 450V Push-Wire Waterproof Circular Connector P20 3-Pin Power Connector with 16A 450V Push-Wire Waterproof Circular Connector P20 3-Pin Power Connector with 16A 450V Push-Wire Waterproof Circular Connector P20 3-Pin Power Connector with 16A 450V Push-Wire Waterproof Circular Connector P20 3-Pin Power Connector with 16A 450V Push-Wire Waterproof Circular Connector P20 3-Pin Power Connector with 16A 450V Push-Wire Waterproof Circular Connector P20 3-Pin Power Connector with 16A 450V Push-Wire Waterproof Circular Connector P20 3-Pin Power Connector with 16A 450V Push-Wire Waterproof Circular Connector
FAQ
1. Q: What is the IP rating?

A: It has an IP68 rating, fully waterproof and dustproof.

2. Q: How to connect wires?

A: Use a simple push-wire design; no tools are required.

3. Q: What is the operating temperature?

A: It operates within a standard range of -40°C to +105°C.
