UL94 V-0 Waterproof Electrical Connector with LED Indicator and Operating Temperature -40°C to 105°C
UL94 V-0 Waterproof Electrical Connector with LED Indicator and Operating Temperature -40°C to 105°C
UL94 V-0 Waterproof Electrical Connector with LED Indicator and Operating Temperature -40°C to 105°C
UL94 V-0 Waterproof Electrical Connector with LED Indicator and Operating Temperature -40°C to 105°C
UL94 V-0 Waterproof Electrical Connector with LED Indicator and Operating Temperature -40°C to 105°C
UL94 V-0 Waterproof Electrical Connector with LED Indicator and Operating Temperature -40°C to 105°C
Specifications
Brand Name :
Cablein
Model Number :
CB-M10
Certification :
CE, ROHS, TUV , ETL
Place of Origin :
Shenzhen China
MOQ :
100PCS
Price :
The price ranges from $1 to $4 USD per pieces
Payment Terms :
T/T,Western Union
Supply Ability :
Monthly output: 10,000 sets
Delivery Time :
5-8 Working Days
Packaging Details :
High Quality export carton
Ip Rating :
IP67
Material :
PA66 Brass
Operating Temperature :
-40°C to 105°C
Flame Resistance Rating :
UL94 V-0
Mating Style :
Screw
Color :
Black White
Unique Differentiator :
Visual Representation
Outer Diameter (OD) :
3-6.5mm
Description
Waterproof Electrical Connector with LED Indicator CB-M10 IP67
Specifications

Connection Type: Screw-Type

Pin: 2/3/4/5/6

Material: PA66 Brass

Applicable Wire Gauge: 0.5mm²-1.5mm²

Outer Diameter (OD): 3-6.5mm

P/N : CB-M10

Datasheet
Parameter Specification
Product Name 2/3/4/5/6pin Waterproof Electrical Connector with LED Indicator
Wiring Range 0.5 - 1.5 mm²
Rated Current 2/3/8A+4/5/6/5A
Operating Voltage 1000V
Ingress Protection (IP) Rating IP67
Ambient Temperature -40℃ ~ +105℃
Cable Diameter (OD) 3-6.5mm
Insulation Resistance 200MΩ
Advantages
  1. Instant visual status indication.
  2. IP67 rated for harsh environments.
  3. Quick, tool-free installation.
  4. Secure, vibration-resistant mating.

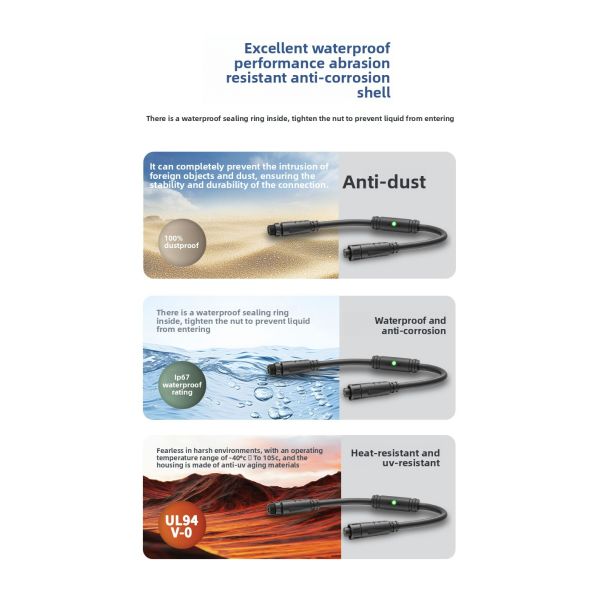

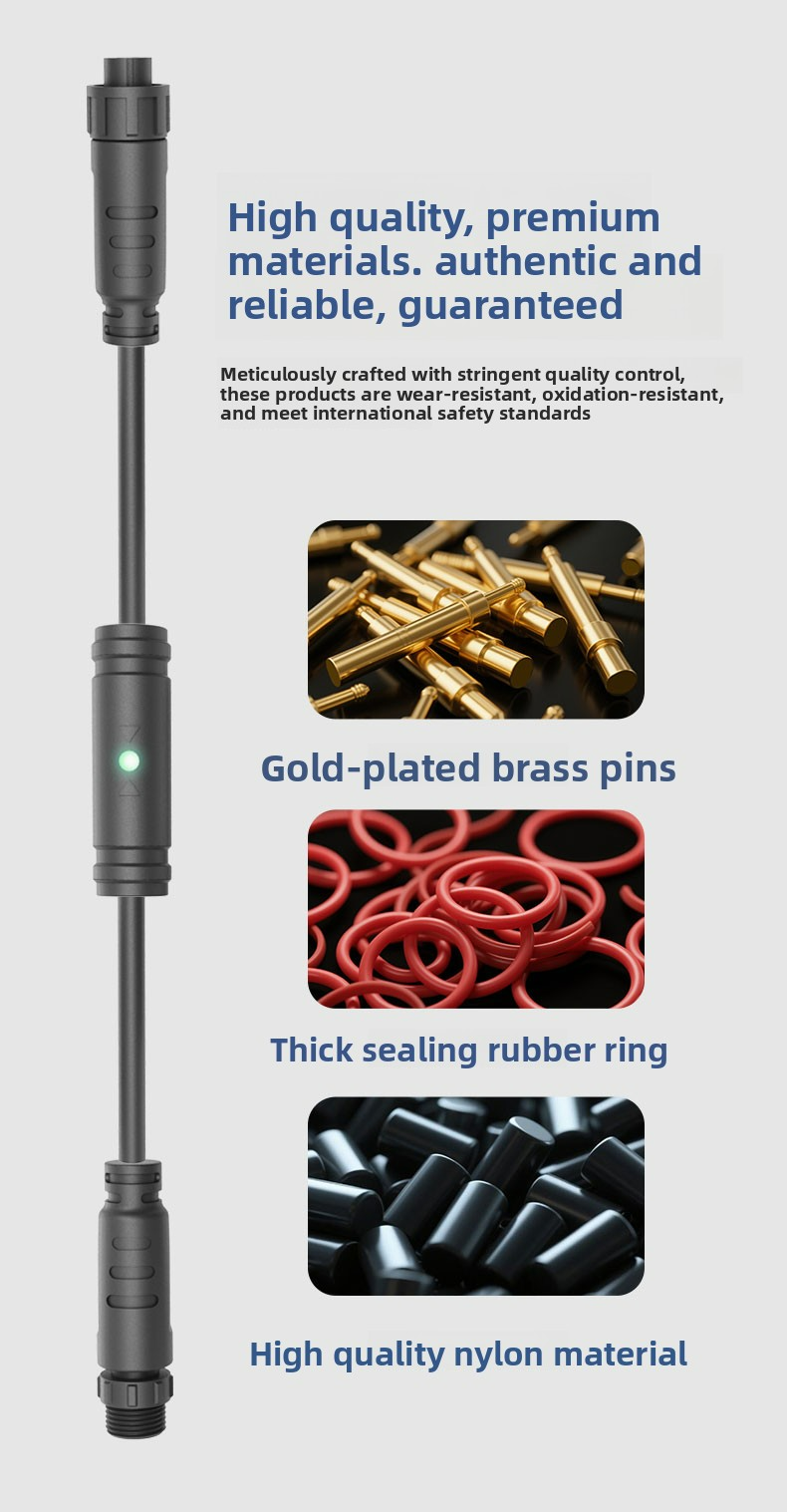

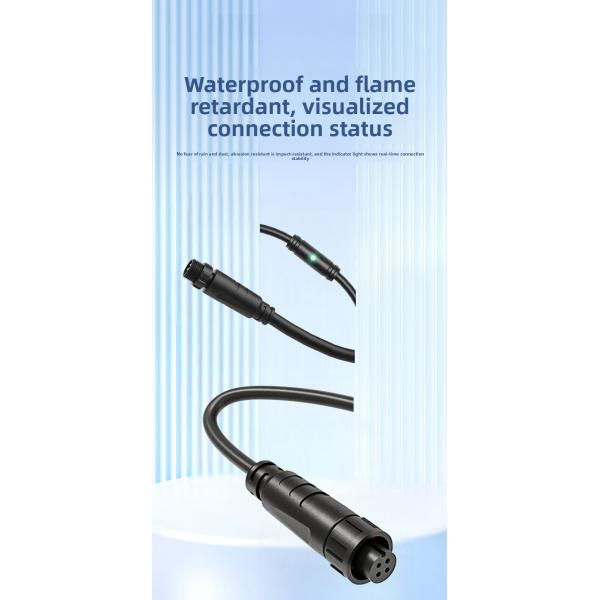

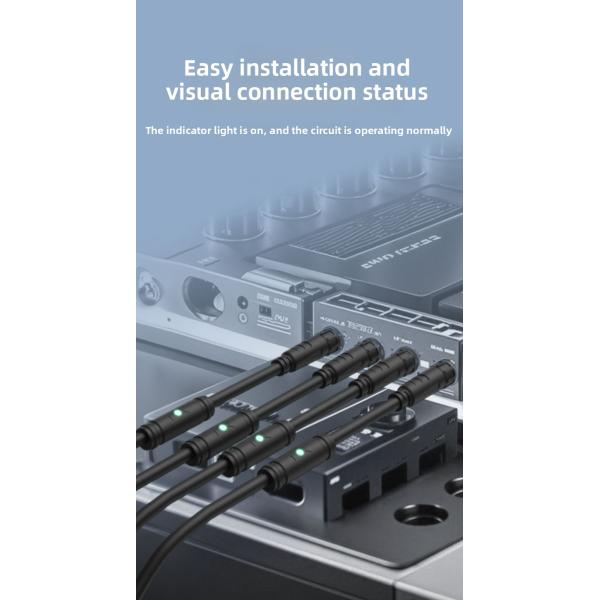

Product Images
UL94 V-0 Waterproof Electrical Connector with LED Indicator and Operating Temperature -40°C to 105°C UL94 V-0 Waterproof Electrical Connector with LED Indicator and Operating Temperature -40°C to 105°C UL94 V-0 Waterproof Electrical Connector with LED Indicator and Operating Temperature -40°C to 105°C UL94 V-0 Waterproof Electrical Connector with LED Indicator and Operating Temperature -40°C to 105°C UL94 V-0 Waterproof Electrical Connector with LED Indicator and Operating Temperature -40°C to 105°C UL94 V-0 Waterproof Electrical Connector with LED Indicator and Operating Temperature -40°C to 105°C
FAQ
1. Q: What is the IP rating?

A: It is rated IP67, fully dust-tight and protected against temporary immersion in water.

2. Q: What is the LED indicator for?

A: It provides instant visual status confirmation for power or signal transmission.

3. Q: What wire sizes does it accept?

A: It typically accommodates standard wire sizes from 0.5 mm² to 1.5 mm².

4. Q: Is it suitable for outdoor use?

A: Yes, its IP67 rating and UV-resistant housing make it ideal for outdoor applications.

5. Q: What is the operating temperature range?

A: It operates reliably within a standard range of -25°C to +85°C.

6. Q: How is the connector installed?

A: It features a tool-less, snap-lock design for quick and easy installation.
