LP20 Series, 9-Pin, Flange-Mount, 5A Signal & Power Waterproof Connector - IP67 Rated, Metal/Plastic Hybrid, Solder Terminations
Specifications
  • Pin: 9 Pin
  • Current Rating(A): 5A Max
  • Material: Metal+plastic
  • Conenction Way: Push-button snap fastener
  • Operating Voltage: 250V Max
  • Assembly Wire: IP-Rated Locking Gland
  • Mounting Type: Flange Mounting Type
  • Out Door UV Resistance: Pass
  • Cable Jacket OD: 0.34-0.75 mm²
Datasheet
Pins Number 2Pins 3Pins 4Pins 5Pins 7Pins 9Pins 12Pins
Rated Voltage 500V 250V
Rated Current 20A 10A 5A
Insulation voltage 2.5KV 1.5KV
IP CODE IP68
Cable Jacket OD Standard Power:⌀8-12mm Standard Signal:⌀5-6.5mm Other:⌀5-9mm
Assembly cable diameter 2.4-4mm²/14-12AWG 1-1.5mm²/18-16AWG 0.34-0.75mm²/22-20AWG
Ambient temperature -40℃~+80℃
Advantages
  1. Material & Performance:
    The housing is made of high-performance PBT engineering plastic, ensuring stable electrical properties, excellent heat resistance, and corrosion resistance. The gold-plated conductive components guarantee superior conductivity and meet temperature rise requirements even in high-temperature environments.
  2. Secure Locking Mechanism:
    Features a push-to-lock snap-fit design for secure mating and smooth insertion/removal.
  3. Waterproof Design:
    Standard IP67 rating (IP68 optional) provides precise waterproof protection.
  4. Certifications & Compliance:
    Complies with TUV, ISO, CE, and RoHS certifications, meeting global market requirements.
Application Industries
  • Automation Equipment
  • LED Lighting
  • Security Equipment
  • Telecommunication Equipment
  • New Energy
  • Electronic Devies
Product Images

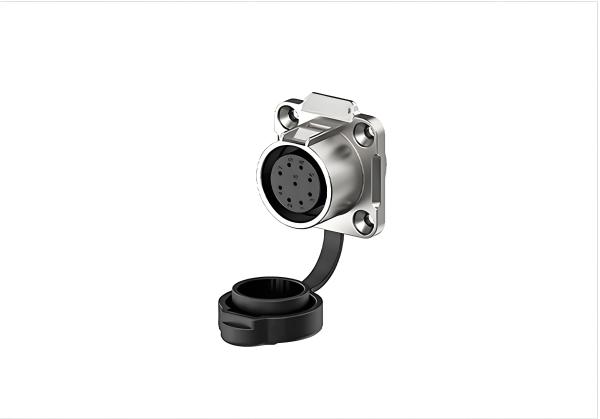

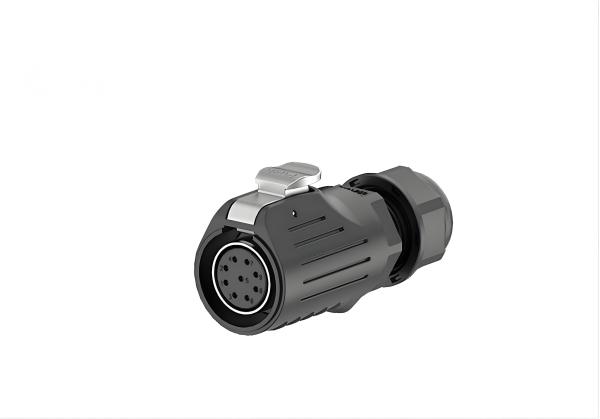

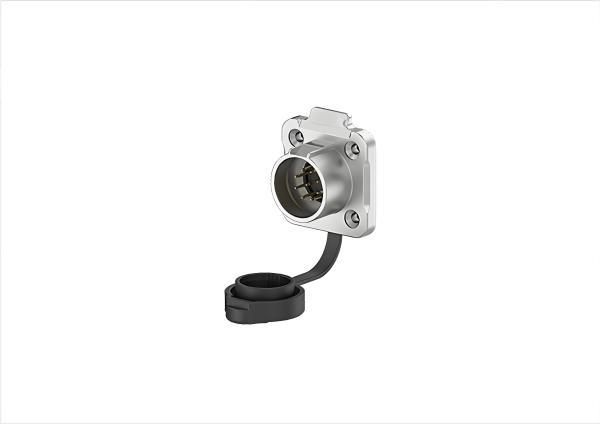

LP20 Series 9-Pin IP67 Waterproof Connector 5A Flange Mount LP20 Series 9-Pin IP67 Waterproof Connector 5A Flange Mount LP20 Series 9-Pin IP67 Waterproof Connector 5A Flange Mount
Drawing
LP20 Series 9-Pin IP67 Waterproof Connector 5A Flange Mount LP20 Series 9-Pin IP67 Waterproof Connector 5A Flange Mount LP20 Series 9-Pin IP67 Waterproof Connector 5A Flange Mount
FAQ
Q: What level of environmental protection does this IP67-rated connector provide, and where is it suitable for use?
A: Our LP20 connector's IP67 rating certifies complete protection against dust ingress (the "6") and the ability to withstand temporary immersion in water up to 1 meter for 30 minutes (the "7"). This makes it an ideal solution for demanding applications such as industrial automation, outdoor lighting, marine equipment, agricultural machinery, and any environment exposed to moisture, dust, rain, or wash-downs.
Q: Why does the connector use a hybrid metal and plastic design, and what are the benefits?
A: The hybrid design strategically combines the best properties of both materials. The metal shell (typically the flange and locking ring) provides superior mechanical strength, shielding against EMI/RFI interference, and durability against impacts and crushing. The plastic housing is lightweight, highly resistant to corrosion from salts and chemicals, and provides excellent electrical insulation. This combination ensures a robust, reliable, and long-lasting connector without the full weight and cost of an all-metal unit.
Q: Is this connector suitable for both power and signal transmission, and what is the maximum current rating?
A:Yes, absolutely. This is a key feature of the LP20 series. It is engineered to handle both signal transmission (for data, sensors, control signals) and power delivery simultaneously within a single, compact connector. Each pin is rated for up to 5A, making it capable of powering devices like small motors, sensors, actuators, and LED arrays, while also transmitting data, simplifying your system design and reducing the need for multiple separate connectors.
