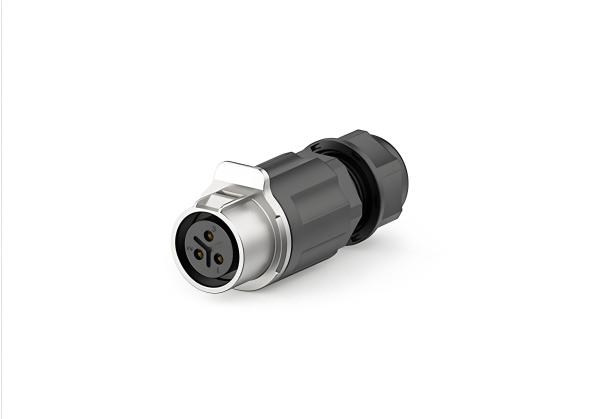

20A IP68 In-Line Cable Connector, 3-Pin LP20 Series, Metal-Nylon Hybrid, Solder Termination, Waterproof Wire-to-Wire Coupler
20A IP68 In-Line Cable Connector, 3-Pin LP20 Series, Metal-Nylon Hybrid, Solder Termination, Waterproof Wire-to-Wire Coupler
20A IP68 In-Line Cable Connector, 3-Pin LP20 Series, Metal-Nylon Hybrid, Solder Termination, Waterproof Wire-to-Wire Coupler
20A IP68 In-Line Cable Connector, 3-Pin LP20 Series, Metal-Nylon Hybrid, Solder Termination, Waterproof Wire-to-Wire Coupler
20A IP68 In-Line Cable Connector, 3-Pin LP20 Series, Metal-Nylon Hybrid, Solder Termination, Waterproof Wire-to-Wire Coupler
20A IP68 In-Line Cable Connector, 3-Pin LP20 Series, Metal-Nylon Hybrid, Solder Termination, Waterproof Wire-to-Wire Coupler
20A IP68 In-Line Cable Connector, 3-Pin LP20 Series, Metal-Nylon Hybrid, Solder Termination, Waterproof Wire-to-Wire Coupler
20A IP68 In-Line Cable Connector, 3-Pin LP20 Series, Metal-Nylon Hybrid, Solder Termination, Waterproof Wire-to-Wire Coupler
Specifications
Brand Name :
Cablein
Certification :
CE, ROHS, TUV , ETL
Place of Origin :
Shenzhen China
MOQ :
100PCS
Price :
The price ranges from $1 to $4 USD per pieces
Payment Terms :
T/T,Western Union
Supply Ability :
Produce 5,000 sets daily
Delivery Time :
5-8 Working Days
Packaging Details :
High Quality export carton
Metal :
Gilded brass
Housing Material :
nylon, PVC
Connector Style :
Straight
Gender :
male to female
Waterproof Rating :
IP67
Cable Type :
Coaxial/Twisted Pair
Description
20A IP68 In-Line Cable Connector, 3-Pin LP20 Series, Metal-Nylon Hybrid, Solder Termination, Waterproof Wire-to-Wire Coupler
Specifications

Pin: 3 Pin

Current Rating(A): 20A Max

Material: Metal+plastic

Conenction Way: Push-button snap fastener

Operating Voltage: 500V Max

Assembly Wire: IP-Rated Locking Gland

Mounting Type: Flange Mounting Type

Out Door UV Resistance: Pass

Cable Jacket OD: 2.5-4 mm²

Datasheet
Pins Number 2Pins 3Pins 4Pins 5Pins 7Pins 9Pins 12Pins
Rated Voltage 500V 250V
Rated Current 20A 10A 5A
Insulation voltage 2.5KV 1.5KV
IP CODE IP68
Cable Jacket OD Standard Power: ⌀8-12mm Standard Signal: ⌀5-6.5mm Other: ⌀5-9mm
Assembly cable diameter 2.4-4mm²/14-12AWG 1-1.5mm²/18-16AWG 0.34-0.75mm²/22-20AWG
Ambient temperature -40℃~+80℃
Advantages:
  1. Material & Performance:
    The housing is made of high-performance PBT engineering plastic, ensuring stable electrical properties, excellent heat resistance, and corrosion resistance. The gold-plated conductive components guarantee superior conductivity and meet temperature rise requirements even in high-temperature environments.
  2. Secure Locking Mechanism:
    Features a push-to-lock snap-fit design for secure mating and smooth insertion/removal.
  3. Waterproof Design:
    Standard IP67 rating (IP68 optional) provides precise waterproof protection.
  4. Certifications & Compliance:
    Complies with TUV, ISO, CE, and RoHS certifications, meeting global market requirements.
20A IP68 In-Line Cable Connector, 3-Pin LP20 Series, Metal-Nylon Hybrid, Solder Termination, Waterproof Wire-to-Wire Coupler 20A IP68 In-Line Cable Connector, 3-Pin LP20 Series, Metal-Nylon Hybrid, Solder Termination, Waterproof Wire-to-Wire Coupler 20A IP68 In-Line Cable Connector, 3-Pin LP20 Series, Metal-Nylon Hybrid, Solder Termination, Waterproof Wire-to-Wire Coupler
Application industries
  • Automation Equipment
  • LED Lighting
  • Security Equipment
  • Telecommunication Equipment
  • New Energy
  • Electronic Devies
20A IP68 In-Line Cable Connector, 3-Pin LP20 Series, Metal-Nylon Hybrid, Solder Termination, Waterproof Wire-to-Wire Coupler
20A IP68 In-Line Cable Connector, 3-Pin LP20 Series, Metal-Nylon Hybrid, Solder Termination, Waterproof Wire-to-Wire Coupler Drawing
20A IP68 In-Line Cable Connector, 3-Pin LP20 Series, Metal-Nylon Hybrid, Solder Termination, Waterproof Wire-to-Wire Coupler 20A IP68 In-Line Cable Connector, 3-Pin LP20 Series, Metal-Nylon Hybrid, Solder Termination, Waterproof Wire-to-Wire Coupler
FAQ
1. Q: What does the "IP68" rating mean for this in-line cable connector, and how does it perform in wet environments?
A: The IP68 rating indicates complete protection against dust ingress (6) and the ability to withstand continuous submersion in water beyond 1 meter depth, under conditions specified by the manufacturer (8). This makes the connector ideal for demanding environments such as outdoor installations, marine applications, or any scenario where exposure to heavy rain, temporary flooding, or high-pressure washing is expected.
2. Q: Why does this connector use a hybrid Metal-Nylon design, and what are the benefits?
A: The Metal-Nylon hybrid housing combines the superior mechanical strength and electromagnetic shielding properties of metal with the corrosion resistance, electrical insulation, and lightweight characteristics of nylon. This design ensures durability in rugged conditions while providing reliable protection against impacts, vibrations, and environmental corrosion.
3. Q: Is the solder termination type suitable for field repairs or applications requiring frequent disconnections?
A: Solder terminations provide a permanent, highly reliable, and vibration-resistant connection. They are ideal for applications where long-term stability is critical. However, for field repairs or situations requiring frequent mating and unmating, we recommend considering our LP20 Series models with screw-terminals or quick-disconnect options, which offer easier maintenance and reconfiguration.
