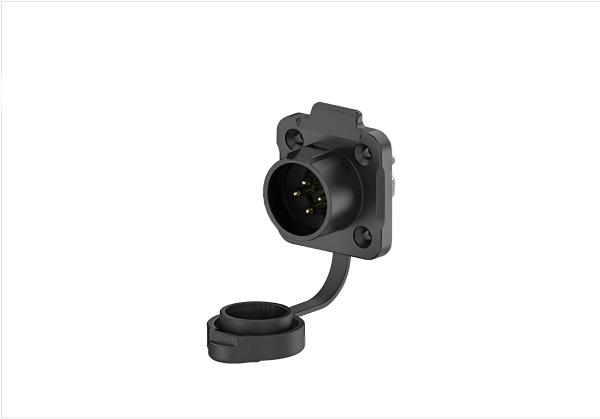

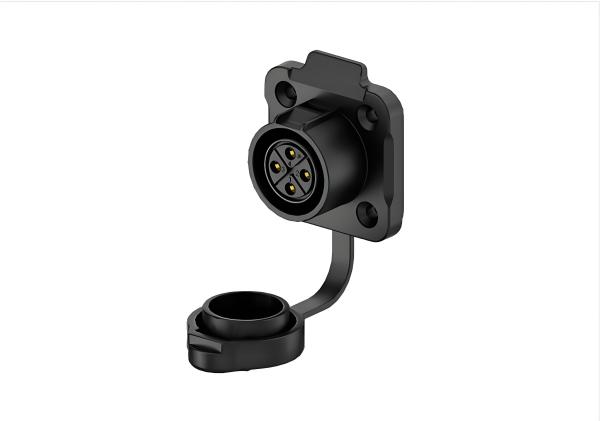

LP20 4-Pin 20A Power Flange Mount Waterproof Connector - Full Plastic, Wire Lock, IP68 Rated
Specifications
  • Pin: 4 Pin
  • Current Rating(A): 20A Max
  • Material: Full plastic
  • Conenction Way: Push-button snap fastener
  • Operating Voltage: 500V Max
  • Assembly Wire: IP-Rated Locking Gland
  • Mounting Type :Flange Mounting Type
  • Out Door UV Resistance: Pass
  • Cable Jacket OD: 2.5-4 mm²
Datasheet
Pins Number 2Pins 3Pins 4Pins 5Pins 7Pins 9Pins 12Pins
Rated Voltage 500V 250V
Rated Current 20A 10A 5A
Insulation voltage 2.5KV 1.5KV
IP CODE IP68
Cable Jacket OD Standard Power:⌀8-12mm Standard Signal:⌀5-6.5mm Other:⌀5-9mm
Assembly cable diameter 2.4-4mm²/14-12AWG 1-1.5mm²/18-16AWG 0.34-0.75mm²/22-20AWG
Ambient temperature -40℃~+80℃
Advantages:
  1. Material & Performance:
    The housing is made of high-performance PBT engineering plastic, ensuring stable electrical properties, excellent heat resistance, and corrosion resistance. The gold-plated conductive components guarantee superior conductivity and meet temperature rise requirements even in high-temperature environments.
  2. Secure Locking Mechanism:
    Features a push-to-lock snap-fit design for secure mating and smooth insertion/removal.
  3. Waterproof Design:
    Standard IP67 rating (IP68 optional) provides precise waterproof protection.
  4. Certifications & Compliance:
    Complies with TUV, ISO, CE, and RoHS certifications, meeting global market requirements.
  5. High Current Capacity: Supports 20A power transmission, making it suitable for medium-to-high-power applications
  6. Versatile Compatibility: The 4-core design allows for multiple signal/power transmissions in a single compact connector.
Application industries
  • Automation Equipment
  • LED Lighting
  • Security Equipment
  • Telecommunication Equipment
  • New Energy
  • Electronic Devies
LP20 4-Pin 20A Power Flange Mount Waterproof Connector Full Plastic Wire Lock IP68 Rated
LP20 Type 4-Core Locking Wire 20A Power Flange-Style Metal + Plastic Waterproof Connector
Drawing
LP20 4-Pin 20A Power Flange Mount Waterproof Connector Full Plastic Wire Lock IP68 Rated LP20 4-Pin 20A Power Flange Mount Waterproof Connector Full Plastic Wire Lock IP68 Rated
FAQ
Q: What are the key advantages of the full plastic construction in this connector?

The all-plastic design provides complete electrical insulation, exceptional corrosion resistance, and lightweight properties. Unlike metal connectors, it will not rust or corrode in humid, salty, or chemical environments. The material also provides excellent impact resistance and thermal stability from -40°C to 120°C.

Q: How does the wire lock mechanism work and what are its benefits?

The integrated wire lock system features a secure snap-lock design that prevents accidental disconnection from vibration or pulling. Simply push the locking tab until it clicks into place - no tools required. This ensures reliable power transmission in high-vibration applications such as industrial machinery, automotive systems, and outdoor equipment.

Q:What makes this connector suitable for 20A power applications?

This connector is engineered with oversized contacts and optimized thermal management to handle 20A continuous current. The full plastic housing provides excellent heat dissipation, while the precision-machined contacts minimize resistance. It meets IP68 standards for complete waterproof protection, making it ideal for high-current applications in demanding environments.
