M25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type Connector
M25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type Connector
Specifications
Brand Name :
Cablein
Certification :
CE, ROHS, TUV , ETL
Place of Origin :
Shenzhen China
MOQ :
100PCS
Price :
The price ranges from $1 to $4 USD per pieces
Payment Terms :
T/T,Western Union
Supply Ability :
Monthly output: 10,000 sets
Delivery Time :
5-8 Working Days
Packaging Details :
High Quality export carton
Current :
41A max. for Power
Insulation Resistance :
≥1000MΩ
Connector Style :
Straight
Certifications :
CE, RoHS
Finish :
Gold
Connector Number :
2
Color :
Black
Working Temperature :
-40~105℃
Description
M25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type Connector
Specifications

Installation Type: Wire-to-Wire

Connection Type: Screw Locking

Rating: IP68

Pin: 3

Waterproof Ring: 5-9mm 9-12mm 10-14mm

Applicable Wire Gauge: 1.5mm²-6mm²

Material: PA66

Datasheet
Parameter Specification
Product Name M25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type Connector
Wiring Range 1.5mm² - 6 mm²
Rated Current 41A
Operating Voltage 450V
Ingress Protection (IP) Rating IP67/IP68
Ambient Temperature -40℃ ~ +105℃
Cable Diameter (OD) 5-9mm 9-12mm 10-14mm
Advantages
  1. Unshakable Connection in Demanding Environments

    Superior Vibration Resistance with Screw Locking
    The screw-locking mechanism ensures a tight, secure grip on the cables, preventing loosening even under constant vibration or mechanical stress. This guarantees a stable and reliable electrical connection, minimizing downtime and maintenance.

  2. Ultimate Protection Against Water and Dust

    IP68 Rated for Total Peace of Mind
    Built to the industry-leading IP68 standard, this connector offers complete protection. It is fully dust-tight and can withstand continuous submersion in water, making it the ideal choice for outdoor, marine, and industrial applications.

  3. Streamlined Installation and Maintenance

    Effortless "Through-Type" Wiring for Easy Setup
    The straight-through (feed-through) design simplifies the wiring process, allowing for quick and tool-efficient cable insertion and securing from one or both ends. This reduces installation time and lowers overall labor costs.

  4. Robust Durability for Long-Term Reliability

    Engineered with High-Quality, Corrosion-Resistant Materials
    Constructed from premium materials such as PA66 (Nylon) and high-grade seals, this connector is built to last. It effectively resists corrosion, UV exposure, and chemical degradation, ensuring a long service life even in harsh conditions.

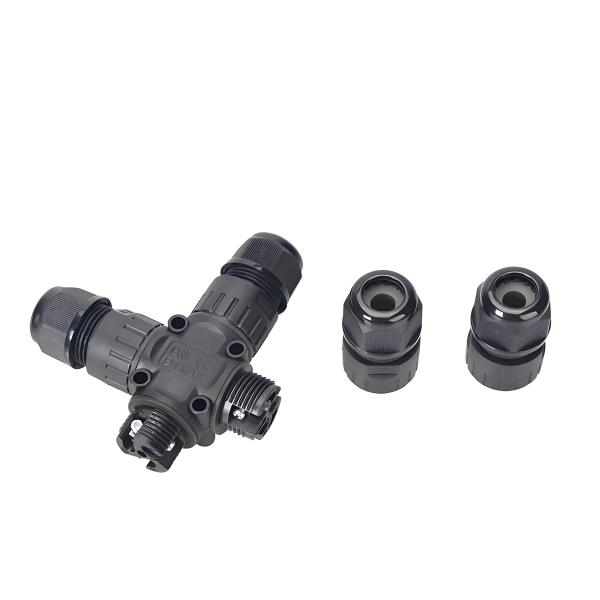

Product Images
M25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type ConnectorM25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type ConnectorM25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type ConnectorM25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type ConnectorM25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type Connector
FAQ
Q1: What is the maximum depth and duration for the IP68 waterproof rating?

A: Our connector is certified to the IP68 standard, which means it can be continuously submerged in water up to 1.5 meters (approximately 4.9 feet) deep for a maximum of 30 minutes. This makes it ideal for applications exposed to heavy rain, splashing, or temporary immersion.

Q2: What is the main advantage of the screw-locking design compared to push-pull connectors?

A: The primary advantage is vibration-proof security. The screw-locking mechanism mechanically prevents the connection from loosening over time due to vibration, shock, or cable strain. This ensures a consistently reliable electrical connection, making it superior to push-pull types in industrial, automotive, or mobile equipment applications.

Q3: What cable outer diameter (OD) range is this connector compatible with?

A: This through-type connector is designed to accommodate a standard cable outer diameter range of 5mm to 14mm. For optimal sealing and strain relief, we recommend using cables within this specified range. Please check your cable specifications before installation.
