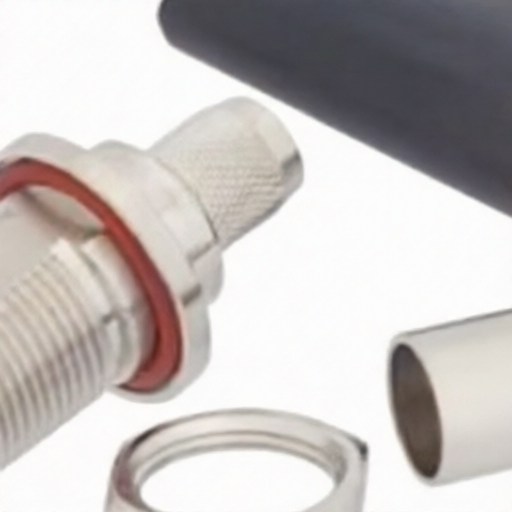

N Female Connector L-com EZ-400-NF-BH-LC Designed for LMR-400 LMR-400-DB and LMR-400-FR Coax Cables
N Female Connector L-com EZ-400-NF-BH-LC Designed for LMR-400 LMR-400-DB and LMR-400-FR Coax Cables
Specifications
Description :
Coaxial Connector (RF) Assemblies RoHS
Mfr. Part # :
EZ-400-NF-BH-LC
Model Number :
EZ-400-NF-BH-LC
Description

Product Overview

The L-com EZ-400-NF-BH-LC is an N Female Bulkhead Mount Connector designed for LMR-400, LMR-400-DB, LMR-400-FR, and 400-Series coax cables. It features a Crimp/Non-Solder Contact attachment method, offering a reliable solution for RF Boxes, test systems, general purpose RF interconnects, and laboratory applications. This connector operates within the frequency range supported by LMR-400 coax and is built with quality body materials and plating to industry standard interface dimensions.

Product Attributes

  • Brand: L-com
  • Origin: USA (implied by contact information and export compliance statement)
  • Certifications: See product page for current document

Technical Specifications

Part NumberConnector TypeInterface TypeBody GeometryContact AttachmentImpedanceOperating Voltage (AC)VSWR (Max)Insertion Loss (Max)Size (Length)Size (Width/Dia.)WeightContact MaterialInsulation MaterialBody Material
EZ-400-NF-BH-LCN FemaleLMR-400, LMR-400-DB, LMR-400-FR, 400-SeriesStraightCrimp/Non-Solder50 Ohms1,000 Vrms1.25:10.21 dB1.813in [46.05mm]0.875in [22.23mm]0.17lbs [77.11g]Beryllium CopperTeflonBrass

2310201423_L-com-EZ-400-NF-BH-LC_C6442033.pdf
