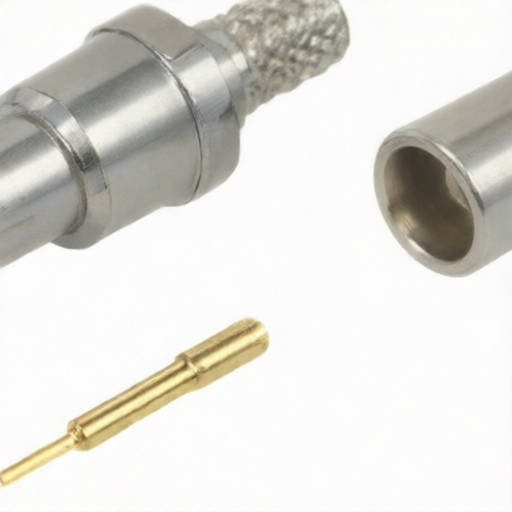

TS9 Plug Connector for Coaxial Cables Featuring Low Insertion Loss and High Reliability L-com ATS9P-1100
TS9 Plug Connector for Coaxial Cables Featuring Low Insertion Loss and High Reliability L-com ATS9P-1100
Specifications
Description :
Coaxial Connector (RF) Assemblies RoHS
Mfr. Part # :
ATS9P-1100
Model Number :
ATS9P-1100
Description

Product Overview

This L-COM TS9 Plug Crimp Connector is designed for use with LMR-100, RG316/174/188/179 coaxial cables. It offers a frequency range of DC~3 GHz with a 50 Ohm impedance, making it suitable for various RF applications. The connector features nickel-plated brass components for durability and reliable signal transmission.

Product Attributes

  • Brand: L-COM
  • Model: ATS9P-1100
  • Regulatory Compliance: CE 2011/65/EU (RoHS DIRECTIVE)
  • Origin: NORTH ANDOVER, MA

Technical Specifications

SpecificationValue
Frequency RangeDC~3 GHz
Impedance50 OHM
VSWR1.3 MAX. (DC~1GHz) / 1.5 MAX. (1-3GHz)
Insertion Loss0.2 dB MAX. (DC~1GHz) / 0.3 dB MAX. (1-3GHz)
Body MaterialBRASS
Body FinishNICKEL
Ferrule MaterialBRASS
Ferrule FinishNICKEL
Insulator MaterialPTFE
Pin MaterialBRASS
Pin FinishGOLD
PackagingIndividually packaged

2310091336_L-com-ATS9P-1100_C6426355.pdf
