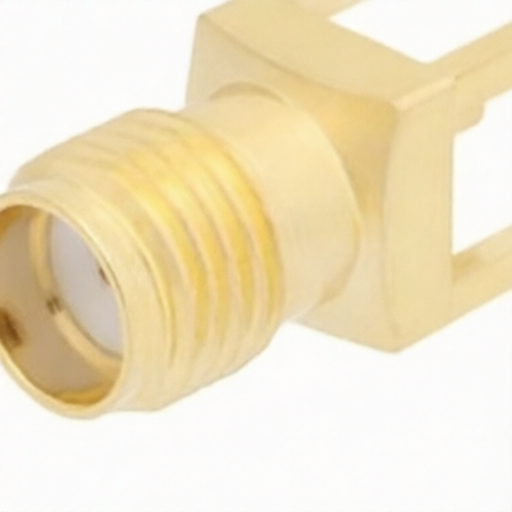

High frequency SMA female connector L-com LCCN3129 operating up to 18 GHz ideal for Wi-Fi antennas and mobile phone systems
High frequency SMA female connector L-com LCCN3129 operating up to 18 GHz ideal for Wi-Fi antennas and mobile phone systems
Specifications
Description :
Coaxial Connector (RF) Assemblies RoHS
Mfr. Part # :
LCCN3129
Model Number :
LCCN3129
Description

Product Overview

The L-com LCCN3129 SMA female connector is designed for telecommunications, data communication, general-purpose test, industrial fields, and rack and panel mount applications. This RF connector features a straight body style with beryllium copper contact and gold plating, operating at a maximum frequency of 18 GHz with an excellent maximum VSWR of 1.23:1. Its thru-hole PCB design allows for flexible signal connection configuration. Ideal for USB software-defined radio dongles, handheld radios, mobile phone antennas, Wi-Fi antenna systems, and microwave systems, this connector offers high-quality construction and 50-ohm impedance. L-com provides the largest in-stock selection of RF and coaxial connectors with same-day shipping.

Product Attributes

  • Brand: L-com
  • Origin: USA
  • Body Material: Brass
  • Contact Material: Beryllium Copper
  • Body Plating: Gold
  • Contact Plating: Gold
  • Insulation Material: PTFE
  • Certifications: MIL-STD-348A

Technical Specifications

DescriptionValue
Frequency RangeDC - 18 GHz
VSWR1.23:1 (Typical)
Operating Voltage500 Vrms (AC)
Length0.53 in [13.46 mm]
Width/Dia.0.25 in [6.35 mm]
Height0.25 in [6.35 mm]
Weight0.01 lbs [4.54 g]
Contact Plating Thickness50 in minimum
Body Plating Thickness3 in minimum
Operating Temperature Range-65C to +165C

2310201740_L-com-LCCN3129_C6451688.pdf
