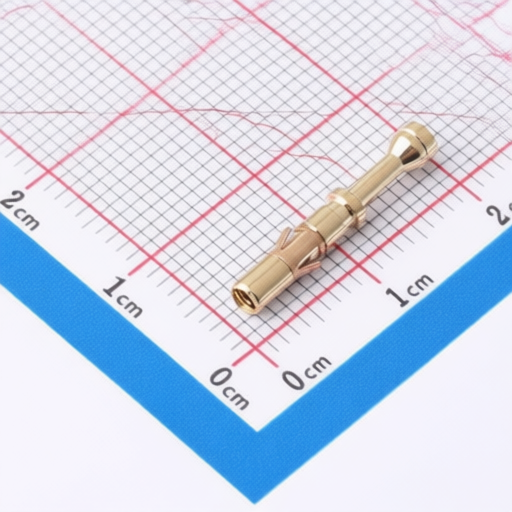

Socket Contact Machine Size 16 Compatible with 24 to 28AWG Wire Amphenol MS24M23F RoHS Compliant
Socket Contact Machine Size 16 Compatible with 24 to 28AWG Wire Amphenol MS24M23F RoHS Compliant
Specifications
Description :
Multi Purpose RoHS
Mfr. Part # :
MS24M23F
Model Number :
MS24M23F
Description

Product Overview

The ECO-MATE Socket Contact Machine is designed for 24-28AWG wire ranges and is a Size 16 component. It is suitable for use with MP24M23xx socket types and is RoHS compliant. This contact is manufactured by Amphenol Sine Systems.

Product Attributes

  • Brand: Amphenol Sine Systems
  • Product Line: ECO-MATE
  • Component Type: Socket Contact, Machine
  • Wire Range: 24-28AWG
  • Size: 16
  • Termination Type: Crimping
  • Compliance: RoHS Compliant
  • Material Specifications: Copper Alloy (Contact Body, Positioning Clip, Crown Spring Contact)

Technical Specifications

Model/Part Number Contact Plating (Mating Area) Nickel Underplate Gold Plating Thickness Current Rating (Max) Wire Range
MS24M23xx N/A N/A N/A 13A 24-28AWG
MS24M23G10 Gold Flash Nickel N/A 13A 24-26AWG and 28AWG
MS24M23G15 Gold Nickel 10" 13A 24-26AWG and 28AWG
MS24M23G30 Gold Nickel 15" 13A 24-26AWG and 28AWG
MS24M23G5 Gold Nickel 5" 13A 24-26AWG and 28AWG
MS24M23T Tin Nickel N/A 13A 24-26AWG and 28AWG
MS24M23S Silver Nickel N/A 13A 24-26AWG and 28AWG

Note: All dimensions are for reference use only. Suitable Socket Type: MP24M23xx.
