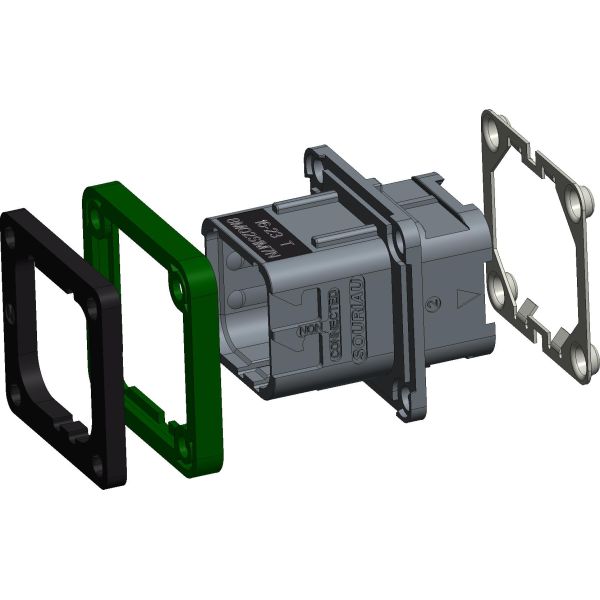

EATON 8MQ2S1M7C1U1 connector with stainless steel nut plate and composite keying colour coding plate
EATON 8MQ2S1M7C1U1 connector with stainless steel nut plate and composite keying colour coding plate
Specifications
Description :
Circular Connector Housings RoHS
Mfr. Part # :
8MQ2S1M7C1U1
Model Number :
8MQ2S1M7C1U1
Description

Product Overview

The SOURIAU 8MQ Series receptacle is a high-performance connector designed for demanding applications, compliant with EN4165, BACC65, and ARINC 809 standards. It features a composite nickel-plated shell for robust durability and excellent electrical continuity and shielding effectiveness. This connector is suitable for operating temperatures ranging from -55C to +175C and has undergone 500 hours of salt spray testing for corrosion resistance. It supports 500 mating/unmating operations and is RoHS and REACH compliant. The receptacle offers various polarization options for secure mating and is available with or without keying color coding plates, sealing gaskets, and nut plates.

Product Attributes

  • Brand: SOURIAU
  • Series: 8MQ
  • Shell Material: Composite nickel plated
  • Keying Colour Coding Plate Material: Composite
  • Sealing Gasket Material: Silicone elastomer
  • Nut Plate Material: Stainless steel
  • Compliance: EN4165, BACC65, ARINC 809, RoHS, REACH
  • Fluid Resistance: See standard EN 4165-001 (table 40)

Technical Specifications

Specification Value
Shell Type Long receptacle (Type 7)
Module Quantity Mono module (1)
Operating Temperature Range -55C to +175C
Salt Spray (Corrosion) 500 hrs
Mating/Unmating Cycles 500 operations
Housing (shell) electrical continuity < 3m
Shielding effectiveness > 50dB attenuation from 100 to 1 000 MHz
Receptacle Mass 7.5 g (maxi)
Keying colour coding plate Mass 1.2 g (maxi)
Sealing gasket Mass 0.8 g (maxi)
Nut plate Mass 1.0 g (maxi)
Panel thickness (max) 2 mm

Part Number Table

Range: 8MQ

Structure: 8MQ 2 S 1 M 7 N 0 U 0

Position Code Description
1 2 Serie: Serie 2
2 S Type of component: Shell Module
3 1 Quantity: Mono module
4 M Plating: Composite nickel plated
5 7 Shell Type: Long receptacle
6 N, A, B, C, D, E, F, G Polarization
7 0 or 1 Option for coding color plate (0: Without, 1: With)
8 U or G Option for sealing gasket (U: Without, G: With)
9 0 or 1 Option for nut plate (0: Without, 1: With)

Polarization Colour Table

Polarization: N, A, B, C, D, E, F, G

(Color information not explicitly detailed in the provided text, only the codes are listed.)

Dimensions

(Detailed dimensions are provided in graphical format within the source document and are not fully representable in text. Key linear dimensions are indicated in the source.)

Panel Cut-Out Information

Panel Cut Out General Dimensions: Provided for various polarization types (N, A, B, C, D, E, F, G) in both free mounting and oriented configurations.


2411061532_EATON-8MQ2S1M7C1U1_C22058703.pdf
