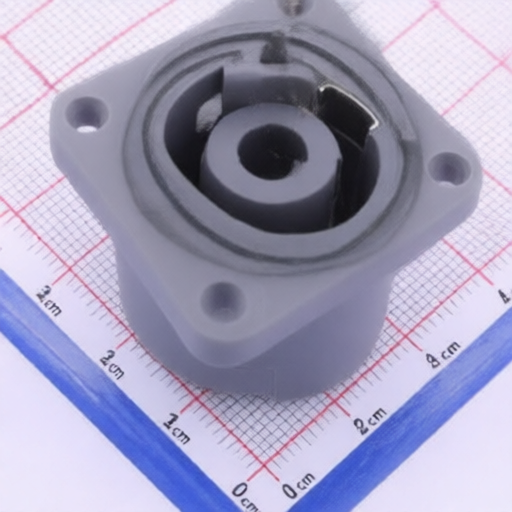

Durable JINJIA XLR-23F-N3GR XLR jack speakon designed for stable audio connections in electronic devices
Durable JINJIA XLR-23F-N3GR XLR jack speakon designed for stable audio connections in electronic devices
Specifications
Description :
Through Hole Circular Connector Assemblies RoHS
Mfr. Part # :
XLR-23F-N3GR
Package :
Through Hole
Model Number :
XLR-23F-N3GR
Description

Product Overview

This specification covers the XLR JACK (SPEAKON) designed for use in electronic products. It provides reliable audio signal connections with specific electrical, mechanical, and environmental performance characteristics.

Product Attributes

  • Brand: Shenzhen jinjiarun Electronic Technology Co., Ltd
  • Origin: China
  • Product Type: XLR JACK (SPEAKON)

Technical Specifications

ItemPropertyTest ConditionPerformance
2. Rated / Practical temperature range-30to +80
Humidity range85% RH.MAX.
Rated voltage and current(MAX.)250V AC , 15Acontinuous; 30 A audiosignal, duty cycle 50 %
4. Electrical efficiency / Withstand Voltage / Withstand AC 4000V (50/60Hz RMS) between two non-contact terminals for 1 minuteNo dielectric breakd own shall occur.
Insulation Resistance / Apply 500V DC between any contactless terminal and the other terminal, with an insulation gauge and last for 1 minute 5 seconds.1000 M Min.
Contact Resistance / Take a pair of matched terminals and measure the tail end of each terminal (voltage maximum 20mV, current maximum 100mA)30 m MAX.
5. Mechanical Performance / Terminal Strength / Every terminal should be capable of withstand a force of 0.5 kgf for 10 seconds.There is no looseness, damage, etc., but the terminal deformation is acceptable.
6. Durability / Life test / Under the condition of no load, rotate and then plug in , rotate and then pull out with a matching plug for 5000 times in total, at a frequency of 5 times per minute.Appearance no obvious change, destruction. Contact resistance: less than 50 m.
7. Solderability / Resistance to soldering heat / The jack terminal should be dipped in solder: Temperature of solder: 2603. Dip time: 51 seconds.After the test, the plastic base should not be deformed and the terminals should not fall off the plastic base.
Solderability / Temperature of solder: 2453C. Time of dip: 30.5 seconds.Coating of solder area should be more than 95%
8. Environment test / Cold test / Place the housing for 96 hours at a low temperature of -30 3 C. Then ,place it under standard atmospheric conditions for 1 hour and test.No obvious change in appearance. Contact resistance:50 mmax. Insulation resistance500 M min. Withstand voltage:AC 1000V.
Heat test / The housing should be stored at a temperature of 802for 96 hours. Then it should be subjected to standard atmospheric conditions for 1 hour and test.
Humidity test / The housing should be stored at a temperature of 403with relative humidity of 90% ~ 95% for 96 h. Then it should be subjected to standard atmospheric conditions for 1 hour and test.No obvious change in appearance. Contact resistance:50mmax. Insulation resistance500 M min. Withstand voltage:AC 1000V.
Salt spray test / Temperature: 35 2 Solution: 5 1% Spray time: 24hours Wash and dry it at room temperature after the experiment.No obvious rust in the appearance.

2411220226_JINJIA-XLR-23F-N3GR_C558750.pdf
