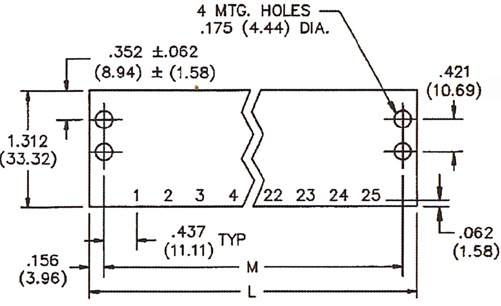

terminal blocks Bel Fuse 8-141 with molded monoblock insulation and brass solder terminals plating
terminal blocks Bel Fuse 8-141 with molded monoblock insulation and brass solder terminals plating
terminal blocks Bel Fuse 8-141 with molded monoblock insulation and brass solder terminals plating
terminal blocks Bel Fuse 8-141 with molded monoblock insulation and brass solder terminals plating
Specifications
Current Rating :
20A
Color :
黑色
voltage :
250V
Number of Rows :
2
Pitch :
-
Number of PINs Per Row :
8
Description :
20A Black 2 8 Barrier Blocks RoHS
Mfr. Part # :
8-141
Model Number :
8-141
Description

Product Overview

The Cinch Connectivity Solutions Industrial Barrier Blocks, Series 141, are designed for general-purpose applications requiring reliable electrical connections. These blocks feature interposing barriers between terminals to enhance electrical ratings and protect against frayed wire shorting. They simplify wiring by reducing splicing, preventing current leaks and short circuits, and increasing insulation. The Series 141 offers a variety of configurations to meet specific mechanical and electrical requirements.

Product Attributes

  • Brand: Cinch Connectivity Solutions
  • Insulation Material: Molded monoblock, general purpose phenolic, black, UL Rated 94V-1
  • Eyelets Material: Brass, Nickel Plating
  • Screws Material: Steel, Nickel over copper flash Plating
  • Solder Terminals Material: Brass, Electro-Tin Plating
  • Marker Strip Material: Nema Grade XPC, UL Rated 94V-O
  • Origin: Marketed exclusively through distribution

Technical Specifications

Series Center-to-Center Spacing Number of Terminals Number of Rows Screw Size Operating Voltage Current Rating Maximum Wire Size Maximum Watts/ Terminal Voltage Rating w/ Marker Voltage Rating w/o Marker Marker Strip Mounting
140 0.375" 1-25 Double 5-40 250 Volts 15 Amps #16 AWG 3750 2000V 1100V Bottom
141 0.438" 1-20 Double 6-32 250 Volts 20 Amps #14 AWG 5000 2400V 1100V Bottom
142 0.563" 1-17 Double 8-32 250 Volts 30 Amps #10 AWG 7500 2600V 1600V Bottom

General Specifications

Specification Value
Operating Temperature -55F to +300F
Electrical Voltage Rating (Max) 250 VAC RMS
Current Rating (Max) 20 Amps
Maximum Watts Per Terminal 5000W
Maximum Wire Size #14 AWG
Recommended Tightening Torque (Screw) 14 lb.-in.
Mounting Holes Torque 7 lbs

Ordering Information - Series 141

Combination Screw Terminal Blocks

Number of Terminals Catalog Number
1 1-141
2 2-141
3 3-141
4 4-141
5 5-141
6 6-141
7 7-141
8 8-141
9 9-141
10 10-141
11 11-141
12 12-141
13 13-141
14 14-141
15 15-141
16 16-141
17 17-141
18 18-141
19 19-141
20 20-141

Binder Head Terminal Blocks

Number of Terminals Catalog Number
1 1-141-Y
2 2-141-Y
3 3-141-Y
4 4-141-Y
5 5-141-Y
6 6-141-Y
7 7-141-Y
8 8-141-Y
9 9-141-Y
10 10-141-Y
11 11-141-Y
12 12-141-Y
13 13-141-Y
14 14-141-Y
15 15-141-Y
16 16-141-Y
17 17-141-Y
18 18-141-Y
19 19-141-Y
20 20-141-Y

Solder Terminals (Ordered Separately)

Terminal Type Catalog Number
Y Y-141

Marker Strips

Number of Terminals Catalog Number
1 MS-1-141
2 MS-2-141
3 MS-3-141
4 MS-4-141
5 MS-5-141
6 MS-6-141
7 MS-7-141
8 MS-8-141
9 MS-9-141
10 MS-10-141
11 MS-11-141
12 MS-12-141
13 MS-13-141
14 MS-14-141
15 MS-15-141
16 MS-16-141
17 MS-17-141
18 MS-18-141
19 MS-19-141
20 MS-20-141

Marker Strips with Y Terminals

Number of Terminals Catalog Number
1 MS-1-141-Y
2 MS-2-141-Y
3 MS-3-141-Y
4 MS-4-141-Y
5 MS-5-141-Y
6 MS-6-141-Y
7 MS-7-141-Y
8 MS-8-141-Y
9 MS-9-141-Y
10 MS-10-141-Y
11 MS-11-141-Y
12 MS-12-141-Y
13 MS-13-141-Y
14 MS-14-141-Y
15 MS-15-141-Y
16 MS-16-141-Y
17 MS-17-141-Y
18 MS-18-141-Y
19 MS-19-141-Y
20 MS-20-141-Y

Accessories

  • Jumpers
  • Fanning Strips
  • Quick Clamp
