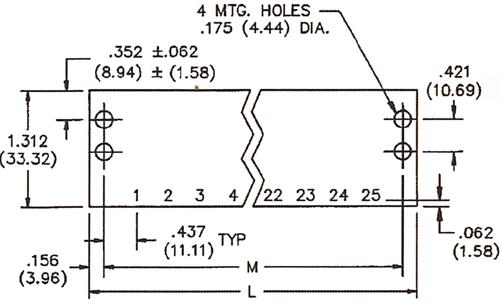

electrical connection blocks CINCH 20-141-Y with molded phenolic insulation and brass solder terminals
electrical connection blocks CINCH 20-141-Y with molded phenolic insulation and brass solder terminals
electrical connection blocks CINCH 20-141-Y with molded phenolic insulation and brass solder terminals
electrical connection blocks CINCH 20-141-Y with molded phenolic insulation and brass solder terminals
Specifications
Current Rating :
20A
Color :
黑色
voltage :
250V
Number of Rows :
1
Pitch :
14.27mm
Number of PINs Per Row :
20
Description :
20A Black 1 14.27mm 20 Barrier Blocks RoHS
Mfr. Part # :
20-141-Y
Model Number :
20-141-Y
Description

Product Overview

The Cinch Series 141 Barrier Blocks are designed for general purpose industrial applications, offering a robust solution for electrical connections. These blocks feature interposing barriers between terminals to enhance electrical ratings and provide protection against frayed wire shorting. They simplify wiring by reducing splicing, preventing current leaks and short circuits, and increasing insulation. The Series 141 offers a wide variety of configurations to meet specific application requirements, ensuring optimal mechanical and electrical performance.

Product Attributes

  • Brand: Cinch
  • Series: 141
  • Insulation Material: Molded monoblock, general purpose phenolic, black, UL Rated 94V-1
  • Eyelet Material: Brass with Nickel plating
  • Screw Material: Steel with Nickel plating over copper flash
  • Solder Terminal Material: Brass with Electro-Tin plating
  • Marker Strip Material: Nema Grade XPC, UL Rated 94V-O
  • Environmental Operating Temperature: -55F to +300F
  • Certifications: UL Rated 94V-1 (Insulation), UL Rated 94V-O (Marker Strip)
  • Mounting: Bottom
  • Marketed Exclusively Through: Distribution

Technical Specifications

Series Center-to-Center Spacing Number of Terminals Number of Rows Screw Size Operating Voltage (V) Current Rating (Amps) Maximum Wire Size Maximum Watts Per Terminal Voltage Rating w/ Marker (V) Voltage Rating w/o Marker (V)
141 0.438 1-20 Double 6-32 250 Volts 20 Amps #14 AWG 5000 2400 1100

Electrical Specifications (General Purpose)

Specification Value
Voltage Rating 250 VAC RMS maximum
Current Rating 20 Amps maximum
Maximum Watts Per Terminal 5000

Mechanical Specifications (General Purpose)

Specification Value
Maximum Wire Size #14 AWG
Recommended Tightening Torque (Screw) 14 lb.-in.
Mounting Holes Torque 7 lbs

Ordering Information - Series 141

Terminal Type: Combination Screw

Number of Terminals Catalog Number
1 1-141
2 2-141
3 3-141
4 4-141
5 5-141
6 6-141
7 7-141
8 8-141
9 9-141
10 10-141
11 11-141
12 12-141
13 13-141
14 14-141
15 15-141
16 16-141
17 17-141
18 18-141
19 19-141
20 20-141

Terminal Type: Binder Head

Number of Terminals Catalog Number
1 1-141-Y
2 2-141-Y
3 3-141-Y
4 4-141-Y
5 5-141-Y
6 6-141-Y
7 7-141-Y
8 8-141-Y
9 9-141-Y
10 10-141-Y
11 11-141-Y
12 12-141-Y
13 13-141-Y
14 14-141-Y
15 15-141-Y
16 16-141-Y
17 17-141-Y
18 18-141-Y
19 19-141-Y
20 20-141-Y

Terminal Type: Solder Terminal Options

Solder Terminals can be ordered separately.

Terminal Type Catalog Number
Y Y-141

Marker Strips

Number of Terminals Catalog Number (Standard) Catalog Number (Y Terminals)
1 MS-1-141 MS-1-141-Y
2 MS-2-141 MS-2-141-Y
3 MS-3-141 MS-3-141-Y
4 MS-4-141 MS-4-141-Y
5 MS-5-141 MS-5-141-Y
6 MS-6-141 MS-6-141-Y
7 MS-7-141 MS-7-141-Y
8 MS-8-141 MS-8-141-Y
9 MS-9-141 MS-9-141-Y
10 MS-10-141 MS-10-141-Y
11 MS-11-141 MS-11-141-Y
12 MS-12-141 MS-12-141-Y
13 MS-13-141 MS-13-141-Y
14 MS-14-141 MS-14-141-Y
15 MS-15-141 MS-15-141-Y
16 MS-16-141 MS-16-141-Y
17 MS-17-141 MS-17-141-Y
18 MS-18-141 MS-18-141-Y
19 MS-19-141 MS-19-141-Y
20 MS-20-141 MS-20-141-Y

Accessories

  • Jumpers
  • Fanning Strips
  • Quick Clamp

2411041700_CINCH-20-141-Y_C6050835.pdf
