wiring protection CINCH 1-141 barrier blocks with brass solder terminals and UL rated marker strips
wiring protection CINCH 1-141 barrier blocks with brass solder terminals and UL rated marker strips
wiring protection CINCH 1-141 barrier blocks with brass solder terminals and UL rated marker strips
wiring protection CINCH 1-141 barrier blocks with brass solder terminals and UL rated marker strips
Specifications
Current Rating :
20A
Color :
黑色
voltage :
250V
Number of Rows :
2
Pitch :
-
Number of PINs Per Row :
1
Description :
20A Black 2 1 Barrier Blocks RoHS
Mfr. Part # :
1-141
Model Number :
1-141
Description

Product Overview

This series of industrial barrier blocks, specifically the Series 141, offers a 0.438" density with 6-32 x 1/4" combination/BH screws and an open bottom, double-row configuration. These barrier blocks are designed to simplify wiring work by reducing splicing, preventing current leaks and short circuits, and increasing insulation. Interposing barriers between terminals enhance electrical ratings and provide additional protection against frayed wire shorting. A wide variety of barrier blocks are available to meet exact application requirements.

Product Attributes

  • Brand: Cinch (Bel Fuse)
  • Insulation Material: Molded monoblock, general purpose phenolic, black
  • Insulation Rating: UL Rated 94V-1
  • Eyelet Material: Brass
  • Eyelet Plating: Nickel
  • Screw Material: Steel
  • Screw Plating: Nickel over copper flash
  • Solder Terminal Material: Brass
  • Solder Terminal Plating: Electro-Tin
  • Marker Strip Material: Nema Grade XPC
  • Marker Strip Rating: UL Rated 94V-O
  • Color: Black
  • Marketed Exclusively Through: Distribution

Technical Specifications

Barrier Block Series Quick Reference
Series Center-to-Center Spacing Number of Terminals Number of Row(s) Screw Size Operating Voltage Current Rating Maximum Wire Size
140 0.375 1-25 Double 5-40 250 Volts 15 Amps #16
141 0.438 1-20 Double 6-32 250 Volts 20 Amps #14
142 0.563 1-17 Double 8-32 250 Volts 30 Amps #10

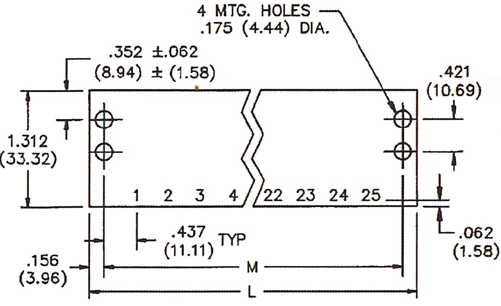

Series 141 Specifics
Attribute Value
Density 0.438
Screw Size 6-32 x 1/4
Screw Type Combination/BH
Bottom Type Open Bottom
Row Configuration Double Row
Maximum Watts Per Terminal 5000
Voltage Rating w/ Marker 2400
Voltage Rating w/o Marker 1100
Marker Strip Mounting Bottom
Ordering Information - Series 141 Terminals
Number of Terminals Combination Screw Catalog Number Binder Head Catalog Number
1 1-141 1-141-Y
2 2-141 2-141-Y
3 3-141 3-141-Y
4 4-141 4-141-Y
5 5-141 5-141-Y
6 6-141 6-141-Y
7 7-141 7-141-Y
8 8-141 8-141-Y
9 9-141 9-141-Y
10 10-141 10-141-Y
11 11-141 11-141-Y
12 12-141 12-141-Y
13 13-141 13-141-Y
14 14-141 14-141-Y
15 15-141 15-141-Y
16 16-141 16-141-Y
17 17-141 17-141-Y
18 18-141 18-141-Y
19 19-141 19-141-Y
20 20-141 20-141-Y
Ordering Information - Marker Strips
Number of Terminals Catalog Number Catalog Number w/ Y Terminals
1 MS-1-141 MS-1-141-Y
2 MS-2-141 MS-2-141-Y
3 MS-3-141 MS-3-141-Y
4 MS-4-141 MS-4-141-Y
5 MS-5-141 MS-5-141-Y
6 MS-6-141 MS-6-141-Y
7 MS-7-141 MS-7-141-Y
8 MS-8-141 MS-8-141-Y
9 MS-9-141 MS-9-141-Y
10 MS-10-141 MS-10-141-Y
11 MS-11-141 MS-11-141-Y
12 MS-12-141 MS-12-141-Y
13 MS-13-141 MS-13-141-Y
14 MS-14-141 MS-14-141-Y
15 MS-15-141 MS-15-141-Y
16 MS-16-141 MS-16-141-Y
17 MS-17-141 MS-17-141-Y
18 MS-18-141 MS-18-141-Y
19 MS-19-141 MS-19-141-Y
20 MS-20-141 MS-20-141-Y

Accessories: Jumpers, Fanning Strips, Quick Clamp

Environmental:
Operating Temperature: -55F to +300F

Electrical:
Voltage Rating: 250 VAC RMS maximum
Current Rating: 20 Amps maximum
Maximum Watts Per Terminal: 5000

Mechanical:
Maximum Wire Size: #14 AWG
Recommended Tightening Torque (Screw): 14 lb.-in.
Mounting Holes Torque: 7 lbs
