SMT and Hinge Mini SIM Card Socket SOFNG SIM-011T-R6 Featuring Gold Flash Contacts for Electronics
SMT and Hinge Mini SIM Card Socket SOFNG SIM-011T-R6 Featuring Gold Flash Contacts for Electronics
Specifications
Operating Temperature :
-25℃~+85℃
Card Connection Mode :
翻盖式
Height Above Board :
2.5mm
Connector Type :
卡座
Card Type :
MiniSIM卡
Description :
Card Connector MINI SIM Hinged Lid Surface Mount
Mfr. Part # :
SIM-011T-R6
Package :
SMD
Model Number :
SIM-011T-R6
Description

Product Overview

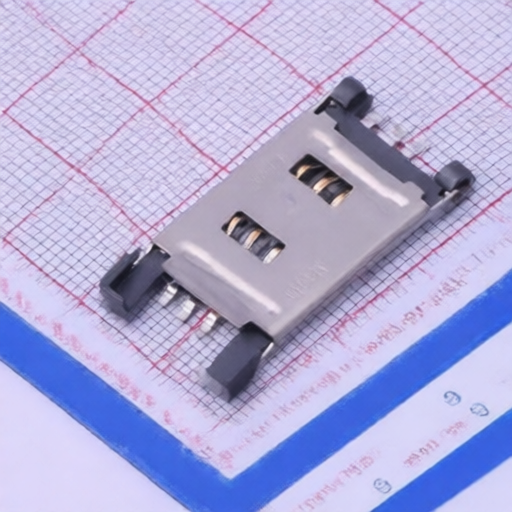

The SIM-011T-R6 is a SMT & Hinge type memory card socket designed for Consumer Electronics. It supports MINI-SIM and is suitable for applications requiring precise components and stable, reliable performance. The socket is designed for environmental compliance, adhering to RoHS standards.

Product Attributes

  • Brand: SOFNG
  • Model: SIM-011T-R6
  • Operation Type: SMT & Hinge
  • Card Type: MINI-SIM
  • Housing Material: LCP S475 THERMOPLASTIC, UL 94V-0, COLOR: BLACK
  • Contact Material: C5191-H COPPER ALLOY (Gold Flash-6PIN)
  • Cover Material: SUS301-3/4H(t=0.25mm) Stainless Steel (Solder plated 1u")
  • Environmental Compliance: RoHS
  • Origin: China (implied by company name and Chinese text)

Technical Specifications

Specification Better Product (A) Average Product (B)
Contact Rating 25mA, 24V DC 25mA, 24V DC
Initial Contact Resistance 30m max. 50m max.
Insulation Resistance 100M min. (500V DC) 100M min. (500V DC)
Withstand Voltage 500V AC for 1 minute 350 V AC for 1 minute
Durable Performance (Cycles) - No Load 5,000 Cycles 3,500 Cycles
Durable Performance (Cycles) - Rated Load 3,500 Cycles 3,000 Cycles
Operating Temperature -25+85 -25+85
Operating Force (Inward) 5.06.5N 5.06.5N
Operating Force (Exiting) 5.06.5N 5.06.5N
Solder-ability (IR Reflow) 255, 5sec. 255, 5sec.
Solder-ability (Manual) 350, 3sec. 350, 3sec.
Dimensions (LWH) 30.0L17.0W2.5H mm 30.0L17.0W2.5H mm

Pin Definition (SIM Card)

Pin No. Pin Name Type Description
C1 VCC C (Card Power)
C2 RST C (Reset)
C3 CLK C (Clock)
C5 GND C (Ground)
C6 VPP C VPP
C7 I/O C / (Input/Output)

Dimensional Tolerances

  • X :0.50
  • X.X :0.35
  • X.XX :0.25
  • X :3
  • X.X :1
  • X.XX :0.5
