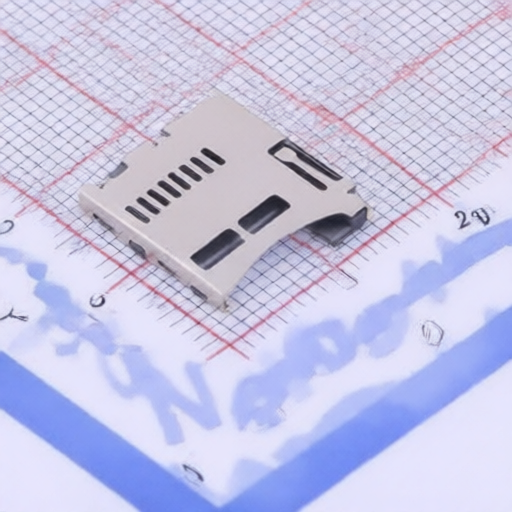

SOFNG TF 001A P3 MICRO SD and MICRO SIM sockets SMT lateral insertion RoHS compliant electronic part
SOFNG TF 001A P3 MICRO SD and MICRO SIM sockets SMT lateral insertion RoHS compliant electronic part
Specifications
Operating Temperature :
-25℃~+85℃
Card Connection Mode :
自弹式
Height Above Board :
1.88mm
Supplementary Features :
-
Card Detection :
有
Connector Type :
卡座
Card Type :
MicroSD卡(TF卡)
Description :
Micro SD card (TF card) Connector and Ejector Push-Push Surface Mount
Mfr. Part # :
TF-001A-P3
Package :
SMD
Model Number :
TF-001A-P3
Description

Product Overview

This product features MICRO-SD & 8+1 push-push sockets, designed for consumer electronics. It offers both MICRO-SD (TF) and MICRO-SIM socket options, with a durable construction and reliable performance. The sockets are suitable for SMT (Surface Mount Technology) with lateral insertion and are RoHS compliant.

Product Attributes

  • Brand: SOFNG
  • Model Numbers: TF-001A-P3
  • Type: MICRO-SD & 8+1 push-push sockets, MICRO-SIM sockets
  • Mounting: SMT (SMT)
  • Insertion Type: Lateral (LATERAL)
  • Compliance: RoHS
  • Material Declaration:
    • Base: LCP 30%G/F (Black)
    • Slider: PA6T 30%G/F (Black)
    • Contact Terminal: C5191R-H (t=0.15mm) Phosphor Bronze (Tin 30u" base, Gold 1u")
    • Shell: SUS301-3/4H(t=0.15mm) Stainless Steel (Solder point Gold 1u")
    • Wire Spring: Piano Wire OD=0.21mm
    • Spring: SUS304(t=0.30mm) Stainless Steel

Technical Specifications

Specification Value Notes
Contact Rating 50mA, 24V DC
Initial Contact Resistance 50m max. (A) / 80m max. (B)
Insulation Resistance 100M min. 500V DC
Withstand Voltage 500V AC for 1 minute (A) / 350 V AC for 1 minute (B)
Durable Performance (No Load) 8,500 Cycles (A) / 6,500 Cycles (B)
Durable Performance (Rated Load) 7,000 Cycles (A) / 5,000 Cycles (B)
Operating Temperature -25+85
Operating Force (Inward) 8.012.0N (1N.=100gram-force)
Operating Force (Exiting) 5.08.0N (1N.=100gram-force)
Solder-ability (IR Reflow) 255, 5sec. (Max.)
Solder-ability (Manual) 350, 3sec. (Max.)
Dimensions (LWH) 14.2L14.0W1.9H
Dimensional Tolerances X:0.35, X.X:0.25, X.XX:0.15
Angular Tolerances X:2, X.X:1, X.XX:0.5

MICRO-SD [TF] T-Flash CARD PIN Assignment

Pin No. Pin NAME Type Description
P DAT2 I/O/PP Data Line [Bit 2]
P CD/DAT3 I/O/PP Card Detect / Date Line (Bit 3)
P CMD PP Command Response
P VDD S Supply voltage
P CLK I Clock
P Vss S Supply voltage ground
P DAT0 I/O/PP Date Line [Bit 0]
P DAT1 I/O/PP Date Line [Bit 1]

2410121529_SOFNG-TF-001A-P3_C3021282.pdf
