Robust Samtec TFML-120-02-S-D connector with locking clip screw down and weld tab ruggedizing options
Robust Samtec TFML-120-02-S-D connector with locking clip screw down and weld tab ruggedizing options
Specifications
Description :
SMD,P=1.27mm PC Pin Receptacles, Socket Connectors RoHS
Mfr. Part # :
TFML-120-02-S-D
Package :
SMD,P=1.27mm
Model Number :
TFML-120-02-S-D
Description

Product Overview

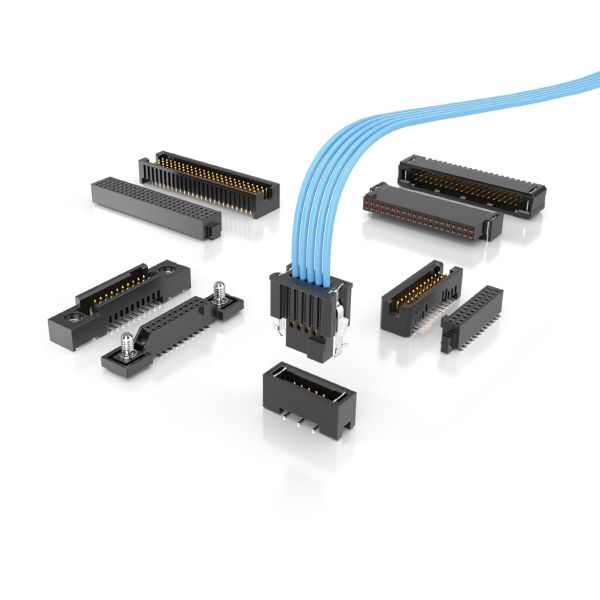

The Samtec RUGGED TIGER EYE Systems (1.27 mm / .050" Pitch) are high-density connectors designed for demanding applications. Available in single or double row configurations, these connectors offer robust performance with various ruggedizing options including screw down, locking clip, friction latching, and weld tab. They feature shrouded, polarized, and keyed designs for secure mating and are suitable for both surface mount and through-hole applications. These systems are Severe Environment Testing qualified, aligning with MIL-DTL-55302, making them ideal for harsh conditions.

Product Attributes

  • Brand: Samtec
  • Series: TIGER EYE (SFM/TFM, SFC/TFC, SFML/TFML)
  • Pitch: 1.27 mm / .050"
  • Insulator Material: Black LCP
  • Contact Material: BeCu (SFM), Phosphor Bronze (TFM/TFC)
  • Plating Options: Gold (Au) or Tin (Sn) over Nickel (Ni); E.L.P. plating option available (call Samtec)
  • Ruggedizing Options: Screw down, locking clip, friction latching, weld tab
  • Mating Features: Shrouded, polarized, keyed
  • Termination: Surface mount or through-hole tails
  • Wire Assemblies: Discrete wire assemblies available (28/30 AWG PVC or Teflon Fluoropolymer); IDC cable assemblies with rugged strain relief (FFSD/FFMD, FFTP/FMTP)
  • Cable Components & Tooling: Available (ISDF/CC03, samtec.com/tooling)
  • Certifications: Severe Environment Testing qualified (SFM/TFM); aligns with MIL-DTL-55302
  • Teflon: Trademark of The Chemours Company FC, LLC used under license by Samtec.

Technical Specifications

Series Stack Height Contact Material Plating Operating Temp Range Current Rating (per pin, 2 pins powered) Voltage Rating Max. Cycles Lead-Free Solderable
SFM/TFM 6 to 12 mm BeCu (SFM) / Phosphor Bronze (TFM) Au or Sn over 50 " (1.27 m) Ni -55 C to +125 C 3.2 A 250 VAC 10,000 (with 30 " (0.76 m) Au) Yes
SFC/TFC 6 to 12 mm Phosphor Bronze Au or Sn over 50 " (1.27 m) Ni -55 C to +125 C 3.1 A 350 VAC 10,000 (with 30 " (0.76 m) Au) Yes

Note: Mated heights and lead style dimensions vary by configuration. Refer to the website for complete specifications (samtec.com?TFM & samtec.com?TFML).
