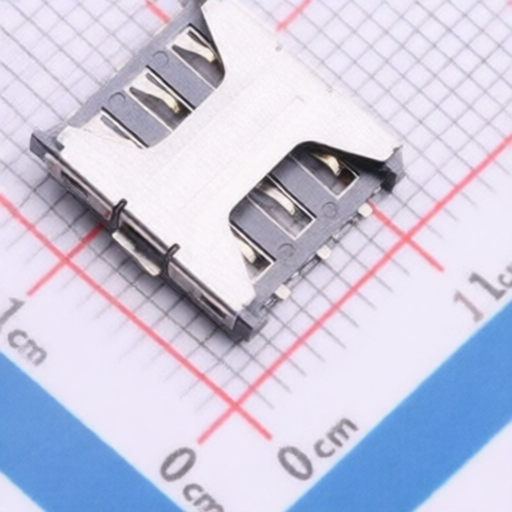

Secure 1.50H No Push Nano SIM Card Holder with SMT solder area and pin assignments JBL JBL 102015752
Secure 1.50H No Push Nano SIM Card Holder with SMT solder area and pin assignments JBL JBL 102015752
Specifications
Description :
SMD PC Card Sockets RoHS
Mfr. Part # :
JBL-102015752
Package :
SMD
Model Number :
JBL-102015752
Description

Product Overview

This document details the specifications for the 1.50H No-Push Nano-SIM Card Holder (NS010-000), a component designed for secure and reliable SIM card integration. It includes pin assignments, recommended PCB layout, and packaging details.

Product Attributes

  • Brand: GuoXuetong
  • Release Date: 08/23/23
  • Model: NS010-000
  • Type: No-Push Nano-SIM Card Holder

Technical Specifications

Part NumberDescriptionQuantityMain Specification
1020157521.50H No-Push Nano-SIM Card Holder
NS010-000		15000PCSHeight: 1.50H
PIN/NO ASSIGNMENTC1:VCC, C2:RST, C3:CLK, C5:GND, C6:VPP, C7:I/O
RECOMMENDED PCB LAYOUTSMT SOLDER AREA
303020195Carrier bandLucentPET W=24 PH=16,T=0.3243.2mMaterial: PET
303040009BoxK=K,T=7.0,350*350*3401PCSDimensions: 350*350*340
303060001PE BagT=0.08mm730*760*7301PCSThickness: 0.08mm
303070024Self-adhesiveW=21.30246.2mWidth: 21.30
303110001BeamK=KT=7.0,95*95*2904PCSDimensions: 95*95*290
303130001Pearl Wool340*340*182PCSDimensions: 340*340*18
303180017REELBLUE13Inches*24mm33010PCSColor: BLUE, Diameter: 330

2511281600_JBL-JBL-102015752_C53055950.pdf
