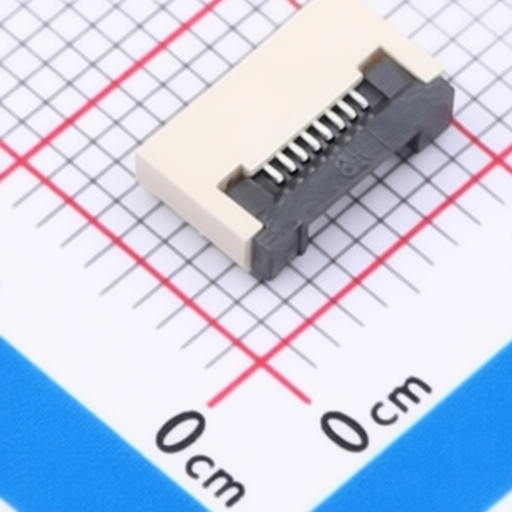

LCP housing FPC connector Hong Cheng HC-FPC-0.5-8P-FH20 with 8 pins and insulation resistance 500 megaohms
LCP housing FPC connector Hong Cheng HC-FPC-0.5-8P-FH20 with 8 pins and insulation resistance 500 megaohms
Specifications
Locking Feature :
翻盖式
Operating Temperature :
-25℃~+85℃
Number of Contacts :
8P
Pitch :
0.5mm
Contact Type :
下接
Mounting Type :
卧贴
FFC, FCB Thickness :
0.3mm
Contact Plating :
锡
Contact Material :
铜
Description :
FFC/FPC Connector 8 Position 0.5mm Pitch Bottom Contact Surface Mount, Right Angle -25℃~+85℃
Mfr. Part # :
HC-FPC-0.5-8P-FH20
Package :
SMD,P=0.5mm,Surface Mount,Right Angle
Model Number :
HC-FPC-0.5-8P-FH20
Description

Product Overview

This product is an FPC connector designed for flexible printed circuits. It features a LCP plastic housing and tin-plated copper terminals, suitable for applications requiring a reliable connection in a temperature range of -25C to +85C. Key technical specifications include a rated voltage of 50V AC/DC, a contact resistance of 0.03, and an insulation resistance of 500M. The product is manufactured by Shenzhen Hongcheng Electronics Co., Ltd.

Product Attributes

  • Brand: HC-FPC
  • Origin: Shenzhen, China
  • Material (Housing): LCP
  • Color (Housing): Black
  • Material (Terminal): Copper
  • Plating (Terminal): Tin
  • Applicable Flat Cable: Yes
  • Applicable PCB Layout: Yes
  • Surface Finish (Plastic Parts): Smooth, no rough edges, no obvious shrinkage, defects, or cracks.

Technical Specifications

Model/Part No. DIM A (mm) DIM B (mm) CKI DIM C (mm) Pin Count Temperature Range (C) Rated Voltage (V, AC/DC) Contact Resistance () Insulation Resistance (M)
HC-FPC-0.5-8P-FH20 31.06 30.00 61 34.90 8 -25 to +85 50 0.03 500
(Various models based on pin count and dimensions) 2.56 - 34.40 1.50 - 29.50 4 - 60 7.40 - 34.40 4 - 60 -25 to +85 50 0.03 500

2506051505_Hong-Cheng-HC-FPC-0-5-8P-FH20_C19273926.pdf
