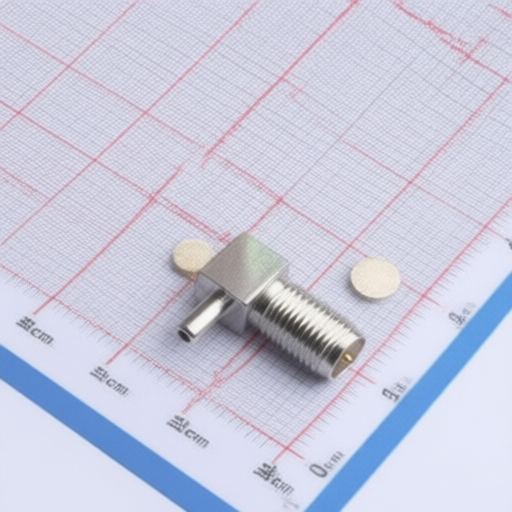

SMA Jack Connector RG-1.13 Cable 50 Ohm Frequency Range 0-6 GHz ROHS Certified HJ Tech HJ-9AJL3-060
SMA Jack Connector RG-1.13 Cable 50 Ohm Frequency Range 0-6 GHz ROHS Certified HJ Tech HJ-9AJL3-060
Specifications
Description :
Through Hole Coaxial Connector (RF) Assemblies RoHS
Mfr. Part # :
HJ-9AJL3-060
Package :
Through Hole
Model Number :
HJ-9AJL3-060
Description

Product Overview

This product is an SMA JACK connector designed for RG-1.13 cable. It adheres to ROHS standards and features a 50 impedance, a frequency range of 0-6 GHz, and a maximum VSWR of 1.5. The connector is manufactured by HJ-Tech in Dongguan, China.

Product Attributes

  • Brand: HJ-Tech
  • Origin: Dongguan, China
  • Compliance: ROHS Standard

Technical Specifications

Part Number Description Material Plating Quantity Dimensions (mm)
HJ-9AJL3-060 SMA JACK 13 FOR RG-1.13 CABLE C3604 1-3U" Gold 1 H8.00*18.90*2.00
2E02-0009G (Threaded Body) C3604 1-3U" Gold 1 4.17*11.30*1.30
2D02-0013 (Insulator) White Teflon - 1 1.50*11.30*0.80
2H02-0007G (Center Pin) C3604 3U" Gold 1 2.90*7.00*1.10
2D01-0209 (Push Tube) C3604 1-3U" Gold 1 H8.00*1.75
2A03-0170G (Insulating Washer) White Teflon - 1 1.80*0.70*0.70
2K01-0001G (Nut) C3604 1-3U" Gold 1 -
2F02-0003G (Spring Washer) Spring Steel 1-3U" Gold 2 10.2*0.50
2L01-0001G (Internal Tooth Washer) C3604 1-3U" Gold 1 8.60*1.00
General Specifications
Impedance 50
Frequency Range 0-6 GHz
VSWR 1.5 Max.

2509180925_HJ-Tech-HJ-9AJL3-060_C7426935.pdf
